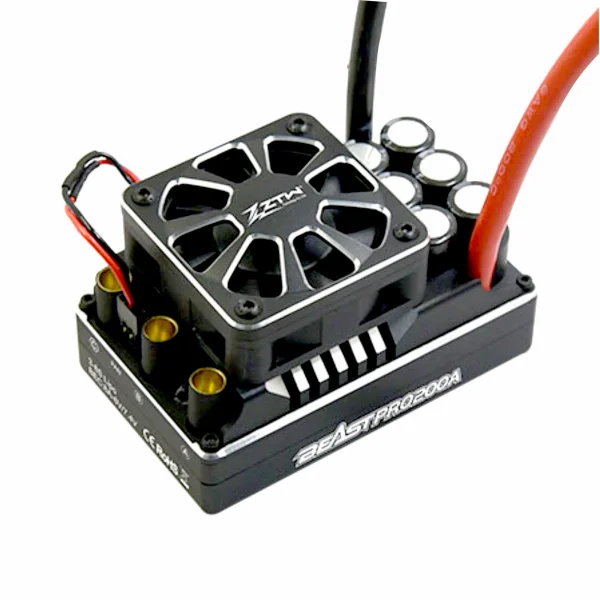

ZTW 1:5 Beast Pro 200A ESC - ZTW5220041

The ZTW 1:5 Beast Pro 200A ESC (ZTW5220041) is a high-current speed controller for large-scale RC applications, offering robust power delivery and straightforward installation. Rated at 200A continuous with a 1800A burst for up to 10 seconds, it supports 18–36 NiMh or 6–8 LiPo battery setups. An adjustable 6.0V/7.4V 8A BEC provides ample power for receiver systems and high-demand servos, making it a strong choice for 1:5 scale platforms where reliable power management is essential.

For clean, low-resistance wiring, the ESC comes with heavy-gauge 6 AWG battery and motor leads at 160mm length. A 300mm signal lead with a normal JR male plug simplifies receiver connection, while a 110mm switch wire aids neat installation. The compact, solid form factor helps with placement, and the included servo lead (male–male) adds convenience when integrating into your electronics layout.

Key Features

• Normal Continuous Current 200A
• Burst Current (10s) 1800A
• BEC output 6.0V/7.4V Adjustable/8A
• Battery 18-36 NiMh / 6-8 Lipo
• Power Wires 6 AWG, 160mm-Red/160mm-Black
• Motor Wires 6 AWG, 160mm-Orange/Yellow/Blue
• Signal Wires（Black/Red/White）300mm with Normal JR Male
• Switch wire（Black/Red/White）110mm

What's In The Box

• 1x ZTW 200A pro ESC
• 1x Servo lead (male - male)

Weights & Dimensions

• Weight: 407g (14.36oz)
• Shipping weight: 0.68kg (1.51lbs)
• Product length: 90mm (3.54in)
• Product width: 55mm (2.17in)
• Product height: 53mm (2.09in)
• Scale: 1:5
