ZTW 1:5 Beast PRO Combo with 300A ESC + BP 70120 620Kv Motor + LCD Program Card

The ZTW 1:5 Beast PRO Combo combines a Beast Pro 300A ESC with the BP 70120 620Kv brushless motor and an LCD program card, providing a robust power system for demanding large-scale applications. Designed for 1:5 setups, this package supports 18–36 NiMH or 6–12 LiPo battery configurations and features an adjustable 6.0V/7.4V 8A BEC for receiver and servo power. Part number ZTW623005112.

Heavy-duty 6 AWG wiring and clearly defined dimensions make installation straightforward. With dedicated power, motor, signal and switch leads, the system is arranged for tidy, reliable routing in spacious 1:5 chassis layouts.

Key Features

• Battery: 18–36 NiMH / 6–12 LiPo
• BEC output: 6.0V/7.4V adjustable / 8A
• Power wires: 6 AWG, 160mm Red / 160mm Black
• Motor wires: 6 AWG, 160mm – Orange/Yellow/Blue
• Signal wires (Black/Red/White): 300mm with normal JR male
• Switch wire (Black/Red/White): 110mm
• ESC size: W=75mm H=78mm L=116mm
• Motor size: D=70mm L=120mm
• Motor shaft size: D=8mm

What’s In The Box

• 1x ZTW Beast Pro 300A ESC

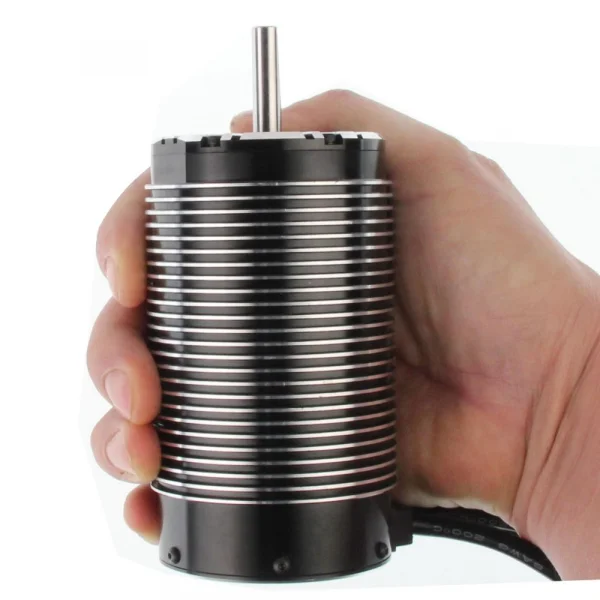

• 1x ZTW BP 70120 620Kv Motor

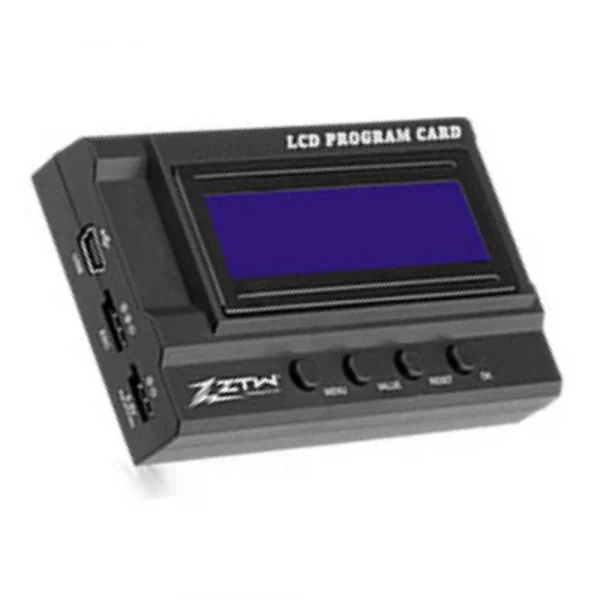

• 1x LCD program card
• 1x Servo lead (male–male)

Tech Specs

• Weight: 2010g / 70.90oz
• Shipping weight: 2.01kg / 4.43lbs
• Scale: 1:5
• Colour: Black
• Material: Aluminium
