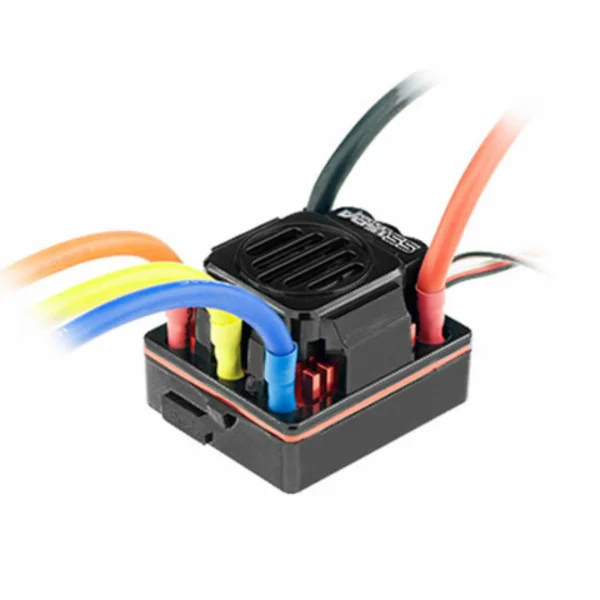

ZTW Beast SS 1:8 120A ESC Speed Controller ZTW4212030

The ZTW 1:8 Beast SS 120A ESC (part number ZTW4212030) is a 1:8 scale electronic speed controller for radio-controlled models, finished in black with an aluminium construction. It is rated for 120A of continuous current, with a 10-second burst rating of 760A, and it works with battery packs of 5-18 NiMh or 2-6 LiPo.

The built-in BEC is adjustable between 6.0V and 8.4V and delivers up to 5A, so you can set the output to suit the receiver and servo in your model. The controller comes with its wiring already attached: 12 AWG power and motor leads, a 300 mm signal lead with a standard JR male connector, and a separate 90 mm switch wire. The pack contains one ZTW 120A ESC, and the manufacturer recommends it for ages 14 and over.

Specifications

• Continuous current: 120A
• Burst current (10 seconds): 760A
• BEC output: 6.0V/8.4V adjustable, 5A
• Battery: 5-18 NiMh or 2-6 LiPo
• Power and motor wires: 12 AWG, 160 mm
• Shipping weight: 0.20 kg
