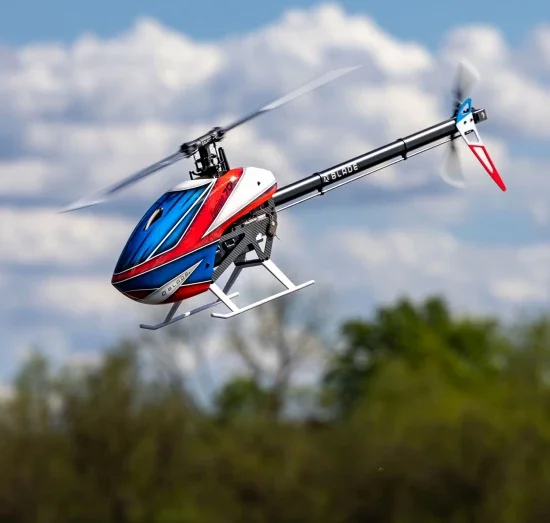

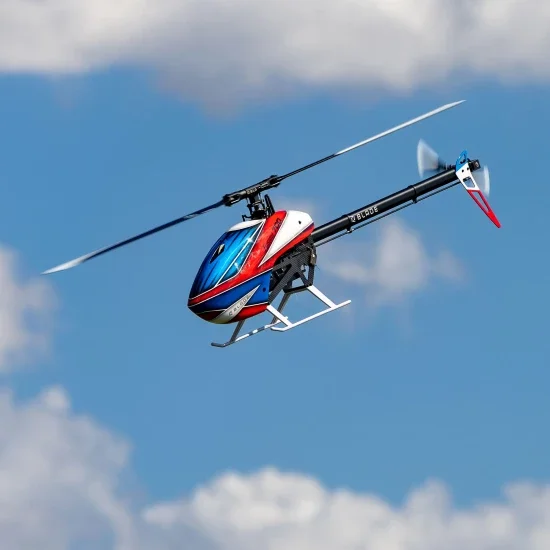

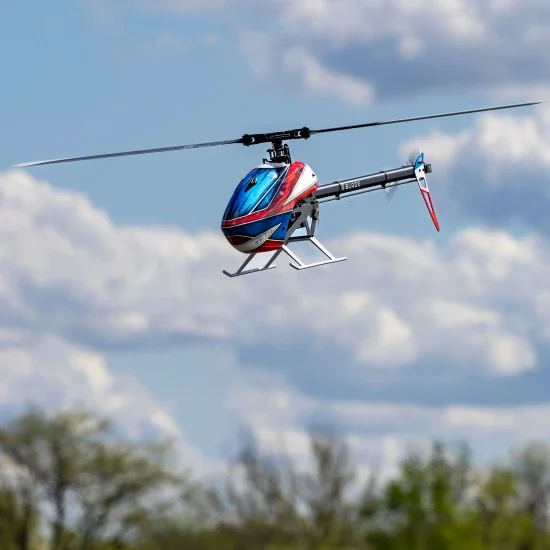

Blade Fusion 700 Kit - Super Combo

Like the Fusion series models that came before it and are still available with spare parts support since 2018, the top-of-the-line Blade® Fusion 700 blends the lines between convenience and capabilities, plus quality and value. The extremely strong carbon fiber and aluminum airframe is ready to pair with the included blades and motor, and popular 12S battery setups, to deliver exhilarating performance with power to spare. Now you can make the dream of owning a 700-sized helicopter with cutting-edge capabilities – along with incredible durability and reliability – a reality!

• Extremely strong and durable carbon fiber and aluminum airframe design
• High-strength steel 15mm main shaft and 10mm spindle with metal head components
• Efficient Delrin® helical main gear paired with a steel pinion for quiet and reliable performance
• Ovalized aluminum tail boom eliminates the need for boom supports
• 8mm wide belt for the driven tail featuring adjustable tension
• High-strength steel 6mm tail shaft paired with a metal bell crank and grips
• Aluminum tail case with a metal tail drive pulley
• Optional lower Kv motor, different tooth count tail pulleys and longer tail blades for low head speed 3D (LH3D) and other styles of flying

• 5mm diameter carbon fiber tail pushrod for precise tail control
• Orange-painted canopy, carbon fiber tail fin and black landing gear available separately to customize and personalize the look

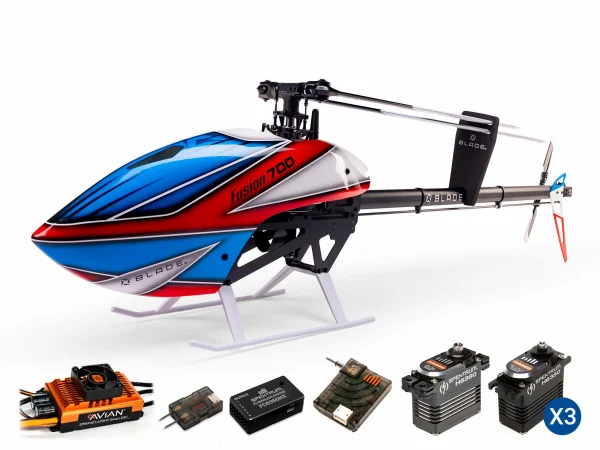

• This Super Combo also includes the following top-of-the-line Spektrum components:
• (3) Spektrum H6350 Ultra-Torque High-Speed Heli Cyclic HV Brushless Servos (SPMSH6350)
• (1) Spektrum H6360 Mid-Torque Ultra-Speed Heli Tail HV Brushless Servo (SPMSH6360)
• (1) Spektrum Avian 120-Amp Brushless Smart ESC for 6S–12S with IC5 (SPMXAE1120HV)
• (1) Spektrum FC6350HX Helicopter Flybarless Control System (SPMFC6350HX)
• (1) Spektrum DSMX Remote Receiver (SPM9745)

Fusion 700 Kit Super Combo Specfications:

• Approximate Assembly Time: 5-7 Hours
• Tail Drive: Belt Drive
• Battery: Sold Separately
• Gear Ratio: 9.33-10.18
• Main Frame Material: Carbon Fiber
• Motor Size: 4735-540Kv 10-Pole
• Product Length: 54.5" (1384 mm)
• Canopy/Body Material: Fiberglass
• Charger: Sold Separately
• Receiver: Included
• Completion Level: Kit
• Main Blade Material: Carbon Fiber
• Main Rotor Diameter: 62" (1575 mm)
• Product Height: 14.88" (378 mm)
• Recommended Motor Battery: SPMX-1091
• Tail Blade Material: Carbon Fiber
• Tail Rotor Blade Length: 4.13" (105 mm)
• Main Motor Type: Brushless
• Main Rotor Head Type: Collective Pitch Flybarless
• Product Width: 8.5" (216 mm)
• Tail Rotor Diameter: 11.5" (292 mm)
• Main Rotor Blade Length: 27.56" (700 mm)
• Speed Control: Included
• Power Type: Electric
• Servos: Included
• Skill Level: Level 4
• Swashplate Type: 120 Degree CCPM
• Product Weight: With recommended battery: 12.5lb (5670g)

• (1) Blade Fusion 700 Helicopter Kit
• (1) Spektrum Avian 4735-540Kv 10-Pole Brushless Outrunner Motor (included)
• (1) Blade 700mm Carbon Fiber Main Rotor Blade Set (included)
• (1) Blade 105mm Carbon Fiber Tail Rotor Blade Set (included)
• (1) Foam Blade Holder (included)
• (1) Blade Fusion 700 Kit Manual
• (3) Spektrum H6350 Ultra Torque High Speed Heli Cyclic HV Servos (SPMSH6350)
• (1) Spektrum H6360 Mid Torque Ultra Speed Heli Tail HV Servo (SPMSH6360)
• (1) Spektrum Avian 120 Amp Brushless Smart ESC 6S - 12S (SPMXAE1120HV)
• (1) Spektrum FC6350HX Helicopter Flybarless Control System (SPMFC6350HX)
• (1) Spektrum DSMX Remote Receiver (SPM9745)

• (1) Full-range 6+ channel Spektrum DSMX®/DSM2® compatible computer transmitter
• (2) 6S 22.2V or (1) 12S 44.4V 4000–5000mAh LiPo battery with EC5 or IC5 Connector
• (1) Compatible Lipo Charger
