Description

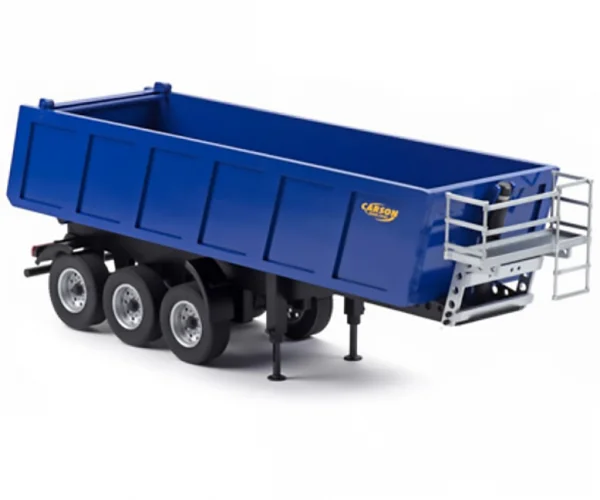

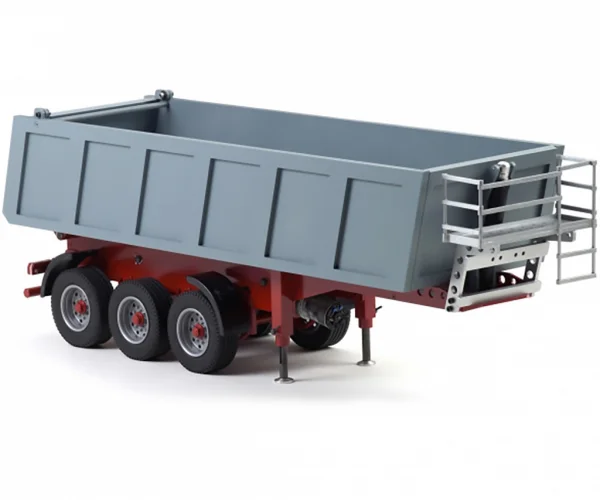

The Carson 3 Axle Tipper Trailer Kit (HC-C907050) is a robust 1/14 scale trailer designed to add realistic hauling capability to your scale rig. Built around a CNC-milled aluminium chassis with 12 ball-bearings and a reinforced PVC basin, it delivers durability and smooth rolling performance for demanding RC trucking layouts.
Key Features
- Basin and back wall made of reinforced PVC
- CNC-milled construction for precision fit
- GFK suspension with horizontal rods
- Air-spring dummy (screw springs)
- Aluminium chassis, CNC-milled, with 12 ball-bearings
- 6 wide trailer rims
- 6 wide tyres for trailer rims
- 7-chamber tail-lights
- Lightened licence plate mount
- Plastic fenders with mounts
- Automatic 2-hook back wall locking
- CNC-milled aluminium underbody protection
- Mechanically adjustable trailer supports
- Plastic/metal composite support and CNC-milled hydraulic cylinder dummy
Specifications
- Scale: 1/14
- Measurements (L x W x H): 700 x 185 x 235 mm
- Tyre width: 25 mm
- Tyre outer diameter: Ø82 mm
- Weight: 4,600 g
- Maximum load: approx. 10,000 g
Suggested Compatibility
Suggested compatibility with Tamiya 1/14 scale trucks and trailers.
Other Trailers Available
- 3 Axle Reefer Semi-Trailer
- Flatbed Trailer
- Pole Trailer
- Semi Trailer
- Tanker Trailer
Secured by Stripe
Carson 3 Axle Tipper Trailer Kit Manuals & Guides
Manuals & Guides
Specifications
The Carson 3 Axle Tipper Trailer is the latest addition in 1/14 scale to the Tamiya Trucks and Trailers range.
Specifications and Features:
- Basin and back wall made of reinforced PVC
- CNC-milled
- suspension of GFK with horizontal rods
- air-spring dummy (screw springs)
- aluminium chassis CNC-milled, 12 ball-bearings
- 6 trailer rims wide
- 6 wide tires for trailer rims
- 7-chamber tail lights
- license plate mount lightened
- plastic fenders with mount
- automatic 2-hook back wall locking
- aluminium under body protection CNC-milled
- trailer supports mechanically adjustable
- support plastic/metal composite construction CNC-milled hydraulic cylinder dummy
- Measurements (L x W x H) 700 x 185 x 235 mm
- tire width 25 mm
- tire outer-Ø82 mm
- weight 4.600 g
- max. load approx. 10.000g
Other Trailers available:
- 3 Axle Reefer Semi-Trailer
- Flatbed Trailer
- Pole Trailer
- Semi Trailer
- Tanker Trailer
Compatible with Tamiya Trucks
Key Info:
- Brand: Carson
- Part No: HC-C907050
- Barcode: 4005299970504
