Castle BEC - 10A Peak 25V Max

Castle BEC - 10A Peak 25V Max

Brand: Castle Creations

Part No: P-CC0400

£30.88 RRP £32.50

In Stock: Usually ships same day

Collect Instore
Request Price Match Ask a Question Write a Review

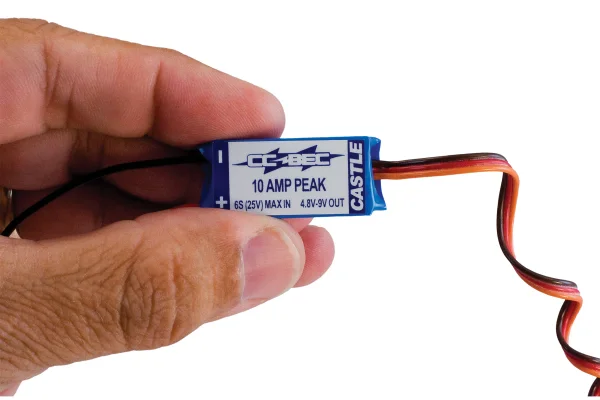

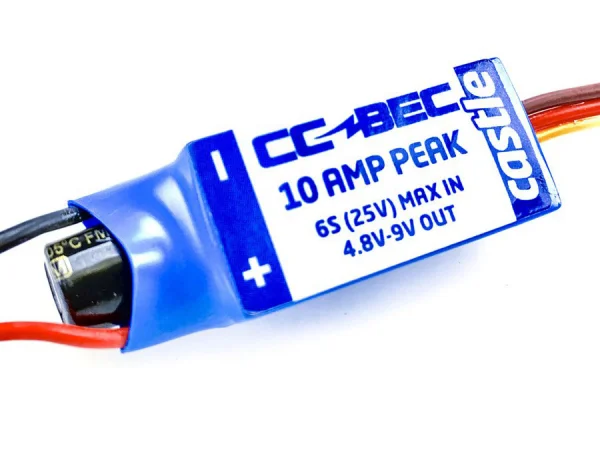

The Castle Creations Castle BEC – 10A Peak 25V Max (P-CC0400) is a compact external Battery Eliminator Circuit designed to deliver stable receiver and servo power from your main drive battery. With an adjustable 4.8–9V output, it ensures your radio gear gets the voltage it needs without a separate RX pack.

By stepping down the higher voltage from your motor batteries, this BEC is ideal for applications with multiple high-draw servos or when running more than 3S packs, where many ESCs with linear BECs are not intended to cope with the load.

Note: The CC BEC should never be operated in series or parallel with another BEC or a backup receiver pack connected to the RX/Servo side of the circuit.

Specifications

  • Voltage range (output): 4.8–9V
  • Input voltage: 5–25V (up to 6S LiPo)
  • Maximum continuous current: 7A @ 12V, 5A @ 24V
  • Maximum peak current: 10A
  • Weight: 11 g
  • Height: 10 mm
  • Length: 30 mm

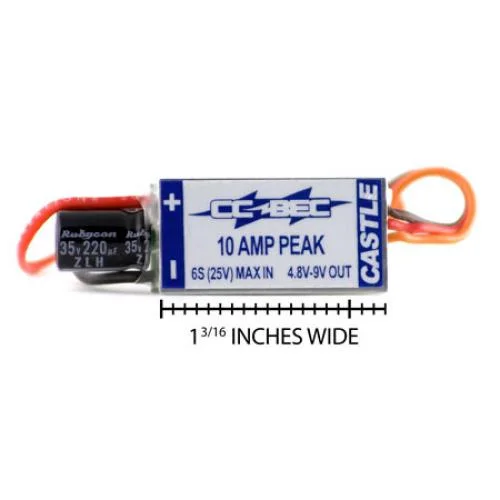

  • Width: 15 mm
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Battery Eliminator Circuits are small devices that eliminate the need for a receiver and servo battery pack. They draw higher voltage from the motor batteries and drop it to a voltage level that is suitable for your receiver and servos. This is required in applications which draw high power for multiple servos or use more than 3S motor packs, as most ESCs with linear BECs are not designed for these applications.

NOTE: CC BEC should never be operated in series or parallel with another BEC or backup receiver pack connected to the RX/Servo side of the circuit.


Castle BEC - 10A Peak 25V Max Specifications
  • Voltage Range: 4.8~9V output
  • Input voltage: 5~25V (6S Li-Po)V
  • Maximum continuous current: 7A @ 12V, 5A @ 24VA
  • Maximum peak current: 10AA
  • Weight: 11g
  • Height: 10mm
  • Length: 30mm
  • Width: 15mm


Key Info:
  • Brand: Castle Creations
  • Part No: P-CC0400
  • Barcode: 850866000047
Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Reviews
No specific product reviews yet, why not write one?
WRITE A REVIEW
All reviews are subject to moderation
Questions & Answers
Real questions from real customers. Why not ask your own?
Is this BEC programmable via the castle link?
Craig Jeffery / 13th August 2022

Yes you would use this P-CC011-0119-00

Si @ Wheelspin Models
hi guys just purchased a trophy flux from you. I have uprated to a savox servo and someone suggested an external BEC like the castle. I just want something basic that I can plug into the receiver and run it off that. would would you recommend?
Kevin Pittard / 25th March 2021

This would be ideal. You'll need to solder it in, but it will provide a steady current to power high-drain servos

Ben @ Wheelspin Models
