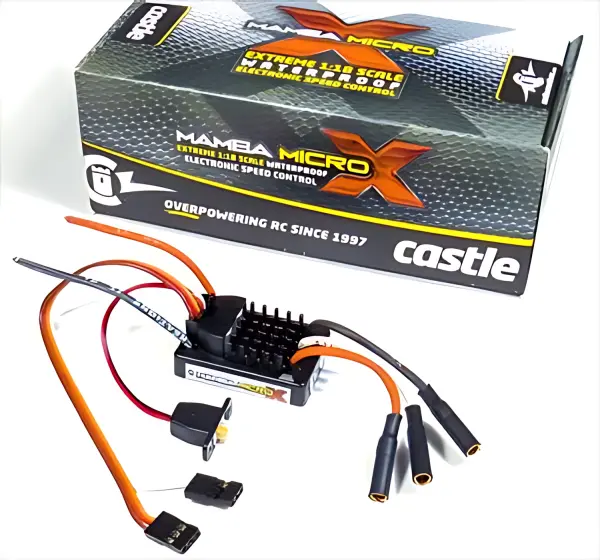

Castle Creations Mamba Micro X ESC

The Mamba Micro X puts Extreme Power, Extreme Control and Extreme Fun in a relatively small footprint – small enough for most 1:18th scale vehicles. The waterproof Micro X is suitable for 2WD or 4WD vehicles over 1.5 lbs and up to 2.25 lbs. The Micro X and one of our “mighty-mite” 0808 brushless motors is simply an awesome brushless power system upgrade for Mini-LST, Half-Eight, Mini-Quake and Spyder vehicles. In following with the other Mamba X Series ESCs, the new Mamba Micro X features even more extreme performance and capabilities than the model it replaces. The new Micro X receives a heavy-duty BEC (battery eliminator circuit) to handle today’s high-draw digital servos and also features a programmable Auxiliary Wire (AUX) that allows the user to make “on-the-go” adjustments to several settings, such as torque control and max throttle, directly from a compatible transmitter. This allows you to fine-tune the performance of the Micro X to meet changing driving conditions.

Sensor Support

New to the Micro X is the ability to run sensored brushless motors (with the purchase of an optional Sensor Harness). Now, a whole new group of R/C enthusiasts will be able to enjoy the power, control and fun of a Castle power system in your vehicle. The Micro X is cable of running on 2S up to 3S LiPo power with a highly-efficient heat sink design to keep you running cool, even when pushing it hard in mud, sand and other heavy power applications.

Castle Link

Small but mighty, the Micro X can be “custom tuned” via Castle’s industry-leading Castle Link software. The Micro X includes a coupon for a free Castle Link USB device. This allows access to the full programming suite of adjustable settings so that enthusiasts can tune and tweak the performance of their Micro X-equipped vehicle to their preference.

• 2S and 3S LiPo Compatible
• Waterproof Design
• 3.5mm gold connectors (female connectors included)

Castle Creations Mamba Micro X ESC Specfications:

• Brakes: Programable
• Programmable: Yes
• BEC: Yes
• BEC Voltage: Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V
• Input Voltage: 7.4?12.6V
• Product Height: 1.1 in (28mm)
• Battery Input Lead: Bare Wire
• Product Width: 0.75 in (19mm)
• BEC Continous Current: 2 Amp
• Low-Voltage Cutoff Programmable: Yes
• Product Weight: 1.2 oz (34g)
• Motor Type: Brushless
• Connector Type: 3.5mm Bullet
• Product Length: 1.61 in (41mm)

• Brand: Castle Creations
• Part No: P-CC010-0147-00
• Barcode: 819326011047
• Motor Type:
  • Brushed
  • Brushless
• LiPo Compatible: Yes
