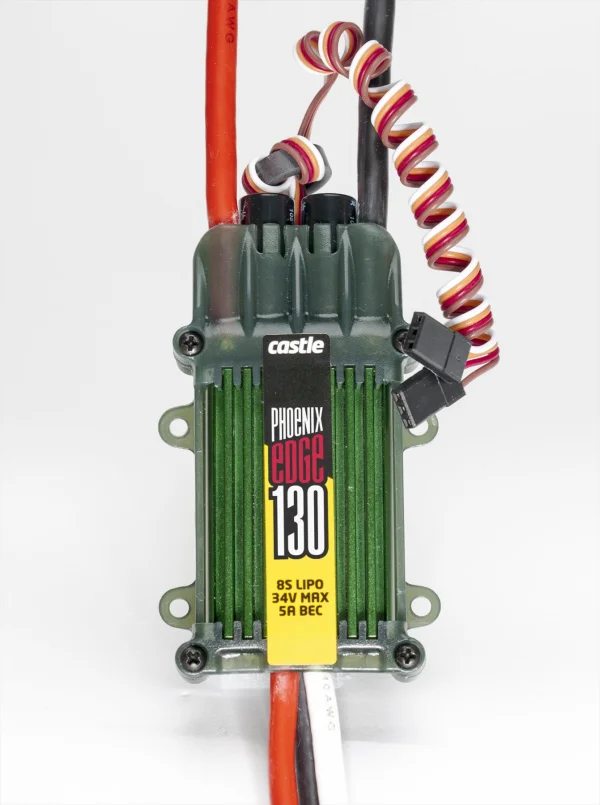

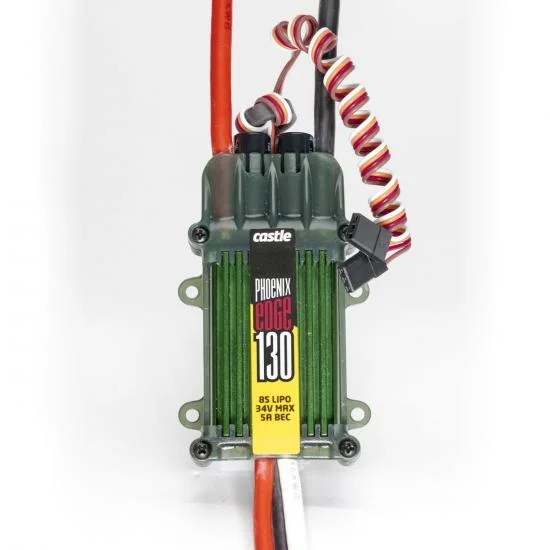

Castle Creations Phoenix Edge 130 ESC

The Castle Creations Phoenix Edge 130 ESC brings the next evolution of speed controller technology to advanced RC helicopters and fixed wing aircraft. Part of the Phoenix Edge series, it combines powerful performance with flexible control, adding a user-programmable auxiliary wire and robust data logging to help you fine-tune setups and understand in-flight performance. USB programming capability via Castle Link gives convenient access to industry-leading software functions.

The white auxiliary wire unlocks multiple functions: adjust helicopter governor gain mid-flight, enable an audible beacon after an unexpected landing, provide RPM output for compatible 3-axis gyros, or configure arming lock options. A coupon for a free Arming Lockout Key is included. With a user-selectable BEC voltage and strong peak output, the Phoenix Edge 130 is a versatile controller for demanding models.

Key Features

• User-programmable auxiliary (white) wire for multiple functions
• Adjust helicopter governor gain in flight via the aux input
• Audible beacon helps locate your model after an unexpected landing
• RPM output for gyros that support RPM sensors
• Configurable ESC or receiver arming lock (coupon for free Arming Lockout Key included)
• Built-in data logging for detailed performance analysis
• USB programming capability via Castle Link
• User-selectable BEC voltage from 5.0 to 8.4 V (5 A peak)

Technical Specifications

• Max continuous current: 130 A at full throttle
• Input voltage: 2S to 8S LiPo
• BEC voltage: user selectable 5.0–8.4 V
• BEC output: 5 A peak
• Dimensions (WxLxH): 50.8 x 83.6 x 23.2 mm
• Weight with wires: 150.6 g
• Weight without wires: 86.6 g

Suggested Compatibility

• Helicopters: 550 or 600 class (use an external BEC or RX/servo power source; not included)
• Fixed wing aircraft: around 1.20 size

Delivering advanced functionality at the same price level as its predecessors, the Castle Creations Phoenix Edge 130 ESC (P-CC09900) provides a refined control solution for performance-focused RC pilots who need reliability, configurability and insightful logging from their electronic speed controller.
