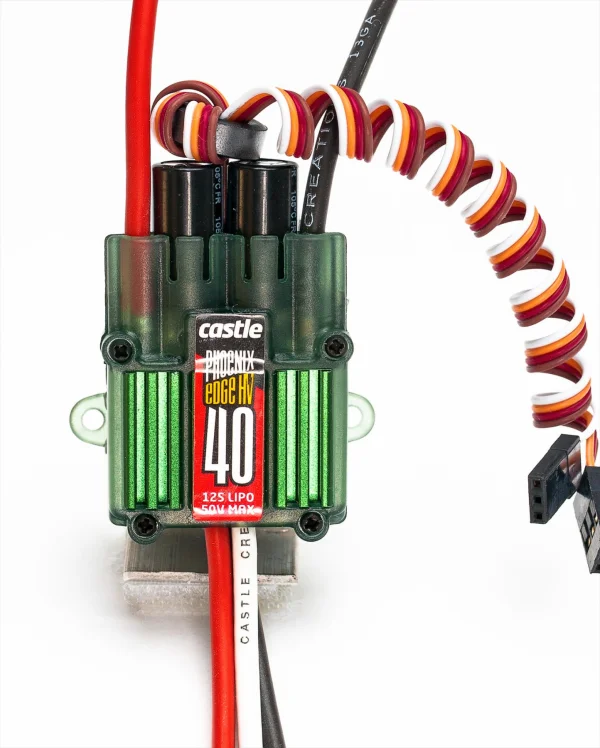

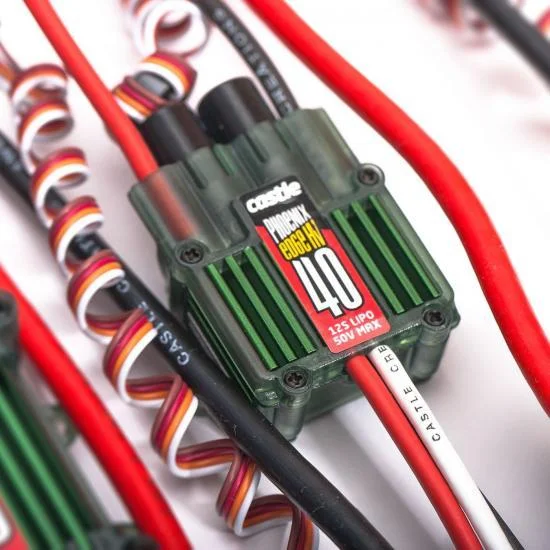

Castle Creations Phoenix Edge HV 40 ESC

The Castle Creations Phoenix Edge HV 40 ESC (P-CC10700) brings the next evolution of speed controller technology to your aircraft. At its core is a user-programmable auxiliary (white) wire that unlocks advanced functions, together with robust data logging and convenient USB programming via the Castle Link USB adapter.

Key Capabilities

• Programmable auxiliary wire for in-flight helicopter governor gain adjustments
• Audible beacon function to help locate the model after an unexpected landing
• RPM output for 3-axis gyros that support RPM sensors
• Configurable as an ESC arming lock or receiver arming lock
• Data logging for detailed performance analysis
• USB programmability via Castle Link USB adapter

Technical Specifications

• Input voltage: 3S–12S LiPo (minimum 3S, maximum 12S)
• Max continuous current at full throttle: 40 A
• Dimensions (W × L × H): 1.7 in (43.4 mm) × 1.8 in (46.3 mm) × 0.8 in (21.4 mm)
• Weight with wires: 2.4 oz (67.2 g)
• Weight without wires: 1.1 oz (30.6 g)

Suggested Applications

• Helicopters: approximately 450 to 800 size
• Fixed-wing aircraft: up to 1.20 size and larger

Part of the Phoenix Edge series, this HV 40 ESC combines versatile setup options with industry-leading software functions, helping pilots fine-tune performance for their model’s needs.
