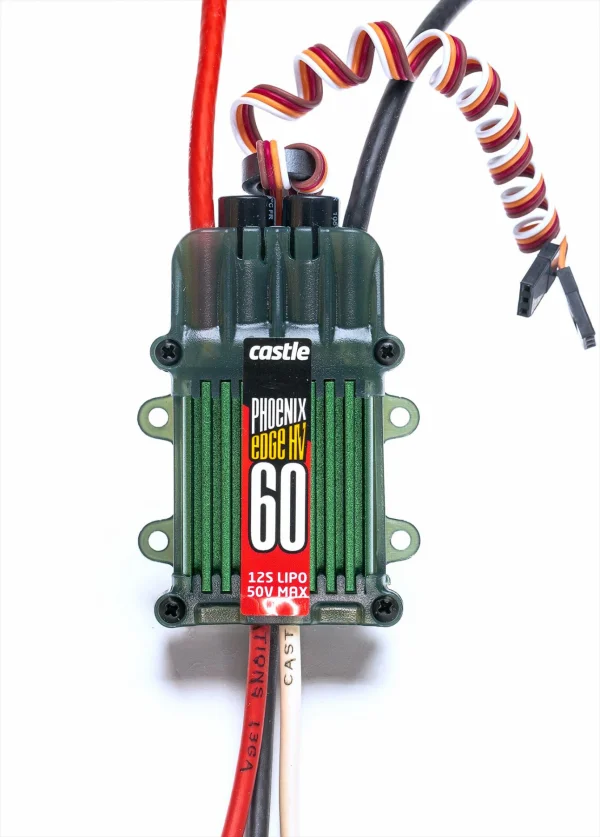

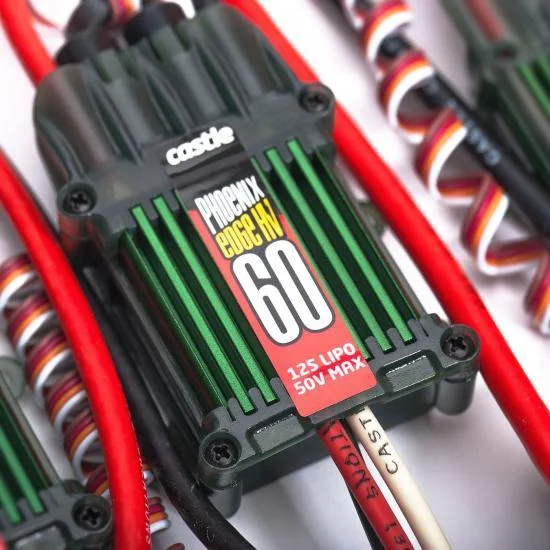

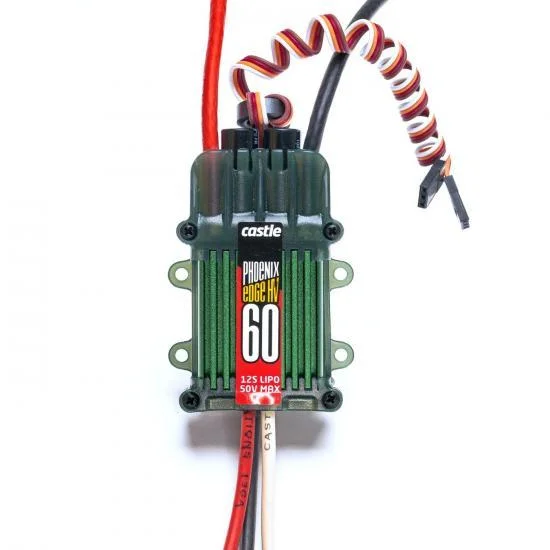

Castle Creations Phoenix Edge HV 60 ESC

The Castle Creations Phoenix Edge HV 60 ESC (P-CC10600) delivers the Edge series’ next evolution in control and telemetry for high-voltage brushless power systems. A user‑programmable auxiliary wire unlocks flexible functions, including in‑flight helicopter governor gain adjustment, an audible beacon to help locate a model after an unexpected landing, RPM output for 3‑axis gyros that support RPM sensors, and the option to use it as an ESC or receiver arming lock. Combined with data logging and USB programming capability via the Castle Link USB adapter, it offers powerful setup and analysis tools for discerning pilots.

Supporting 3S–12S LiPo input and up to 60A continuous current at full throttle, the Phoenix Edge HV 60 balances performance with compact dimensions and low weight, making it a strong choice for demanding electric flight applications.

Suggested Compatibility

Based on Phoenix Edge series guidance, suggested compatibility includes helicopters around 450–800 size and fixed‑wing aeroplanes up to approximately 1.20 size and larger.

Key Features

• User‑programmable auxiliary wire with multiple functions
• In‑flight governor gain adjustment for helicopters
• Audible beacon to aid model location after an unexpected landing
• RPM output for 3‑axis gyros that support RPM sensors
• ESC or receiver arming lock functionality
• Data logging for post‑flight analysis
• USB programming capability via Castle Link USB adapter

Technical Specifications

• Input voltage: 3S–12S LiPo (minimum 3S, maximum 12S)
• Max continuous current at full throttle: 60A
• Width: 2.0 in (50.8 mm)
• Length: 2.8 in (71.9 mm)
• Height: 0.9 in (23.2 mm)
• Weight w/ wires: 3.9 oz (110.2 g)
• Weight w/o wires: 2.1 oz (59.2 g)
