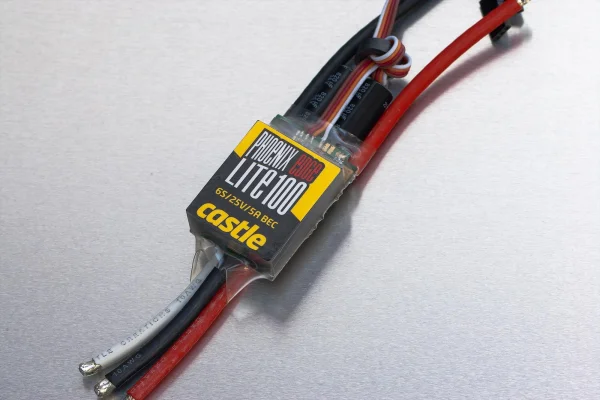

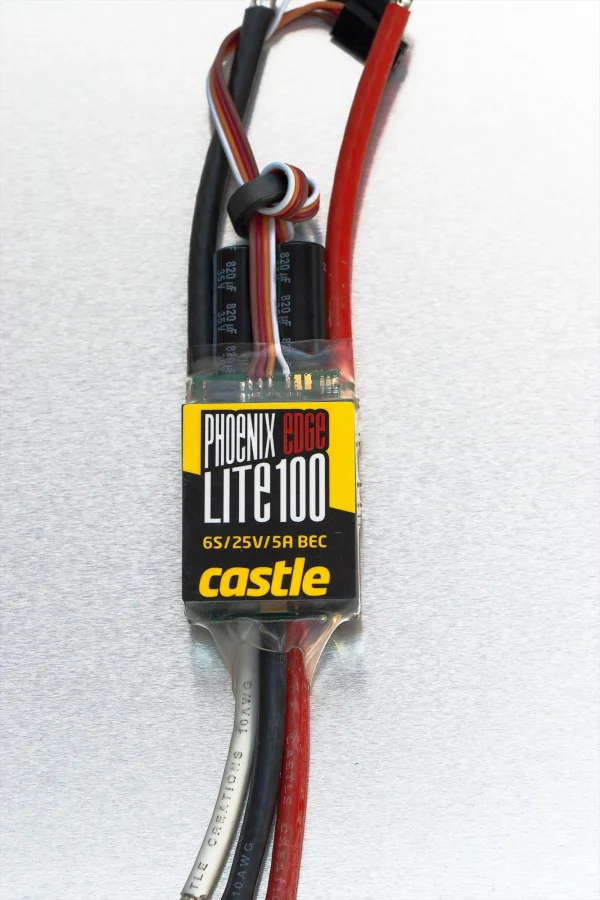

Castle Creations Phoenix Edge Lite 100 ESC

The Castle Creations Phoenix Edge Lite 100 ESC (P-CC11100) delivers the renowned Edge series performance in a lighter, more compact package for builds where space and weight matter. It retains the full feature set of the Phoenix Edge line, including advanced tuning, data logging and flexible setup via Castle Link USB programming.

Key Features

• Lightweight Edge Lite design with reduced size and mass while maintaining Edge-series capability
• User-programmable white auxiliary wire enabling:
  • Helicopter governor gain input adjustments mid-flight
  • Audible beacon to help locate models after an unexpected landing
  • RPM output for compatible 3‑axis gyros that support RPM sensors
  • ESC arming lock
  • Receiver arming lock
• Integrated data logging for post-flight analysis
• USB programming via Castle Link USB adapter
• Industry-leading software functions and tuning flexibility
• Max continuous current rating of 100A
• User-selectable BEC voltage from 5.0V to 8.4V; 5A peak output

Technical Specifications

• Input voltage: 2S–8S LiPo
• Max continuous current: 100A
• BEC voltage: 5.0–8.4V (user selectable)
• BEC output: 5A peak
• Dimensions (W x L x H): 30.5 x 66 x 21.4 mm
• Weight: 91.5 g with wires; 41 g without wires

Suggested Compatibility

• Helicopters: approximately 450–800 size
• Fixed-wing aircraft: up to 1.20 size and larger

If you need the capability of the Phoenix Edge series with a lighter footprint, the Phoenix Edge Lite 100 offers a compelling balance of performance, programmability and efficiency for demanding electric flight setups.
