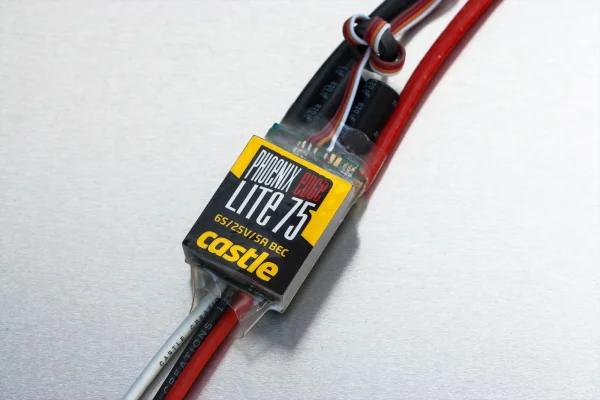

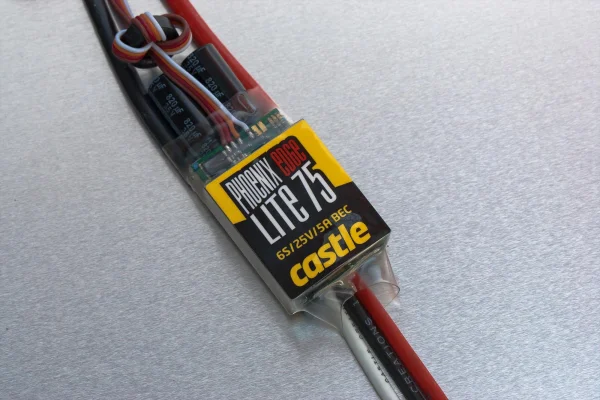

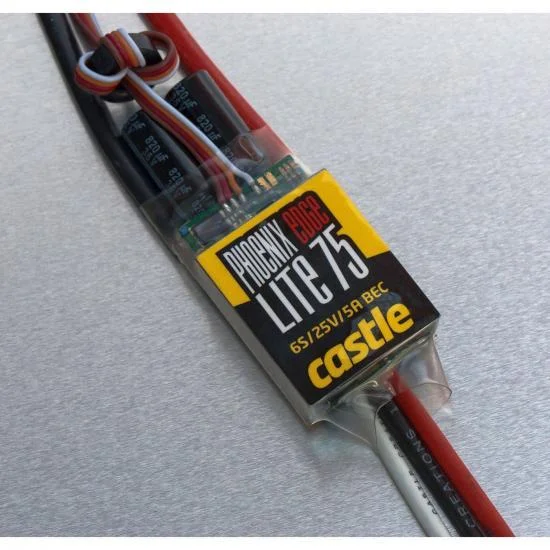

Castle Creations Phoenix Edge Lite 75 ESC
Brand: Castle Creations
Part No: P-CC11200
Out Of Stock
Request Stock NotificationThe Castle Creations Phoenix Edge Lite 75 ESC (P-CC11200) delivers the full Edge feature set in a lighter, more compact package. Designed for builds where every gram and millimetre matter, it offers robust power handling with refined control and advanced telemetry options.
A user-programmable white auxiliary wire unlocks powerful functionality: adjust helicopter governor gain in flight, enable an audible beacon after an unexpected landing, provide RPM output for compatible 3‑axis gyros, or use it as an arming lock (coupon for free Arming Lockout Key included) or receiver arming lock. Combined with built-in data logging and USB programming via Castle Link, the Edge Lite 75 gives you detailed setup control and post‑flight insight.
Key Features
- Lighter Edge Lite design with no compromise on functionality
- User-programmable auxiliary wire for governor gain, beacon, RPM output and arming lock options
- On-board data logging for performance analysis
- USB programming capability via Castle Link adapter
- Industry-leading software functions and setup flexibility
Technical Specifications
- Input voltage: 2S–8S LiPo
- Max continuous current: 75A
- BEC voltage: User selectable 5.0–8.4V
- BEC output: 5A peak
- Dimensions (W×L×H): 1.2 in (30.5 mm) × 2.6 in (66 mm) × 0.8 in (21.4 mm)
- Weight: 2.9 oz (81 g) with wires; 1.4 oz (41 g) without wires
Suggested Compatibility
- Helicopters: 450–800 size
- Fixed-wing aircraft: up to 1.20 size and larger
Secured by Stripe

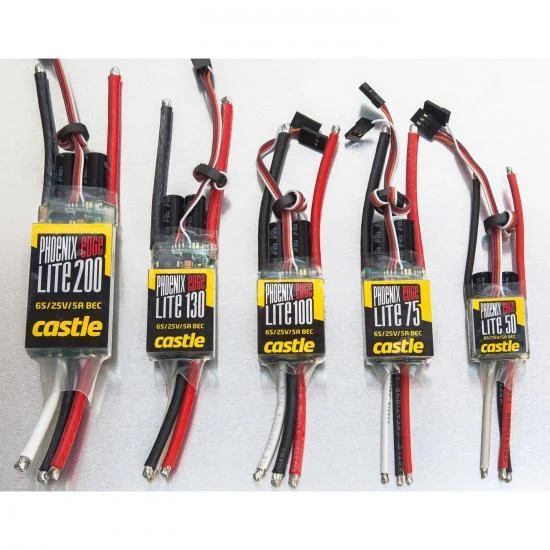

Put your power system on a diet with the Phoenix Edge Lite series of ESCs. With the same amazing features and functionality of the Edge series, the Edge Lite offers a slight weight reduction for applications that are tight for space or weight. Simply put, the same brawn with less body - Phoenix Edge Lite.
With the debut of the Phoenix Edge series of ESCs the next evolution in speed controller technology has arrived. The Edge series introduces a user programmable auxiliary wire capable of functions modelers have only dreamed of, until now. The white auxiliary wire can be used for helicopter governor gain input adjustments mid-flight, serve as an audible beacon after an “unexpected landing”, act as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock (coupon for free Arming Lockout Key included) or as a receiver arming lock. Combined with the data logging capability the Edge series of controllers offer, users can enjoy unparalleled versatility.
The Phoenix Edge series is intended for use in helicopters ranging from 450 to 800 size, and fixed wing aircraft up to 1.20 size and larger. As always, the Edge series of controllers offer industry-leading software functions, data logging, and USB programming capability via Castle LinkUSB adapter.
Same Incredible Price
The Phoenix Edge controllers deliver all of this while retaining the same astonishing prices as their predecessors.
Applications
Helis:N/A
Fixed wing:N/A
Technical Specs
Input voltage:MIN: 2S LiPo MAX: 8S LiPo
Max continuous amperage at full throttle:75 amps*
BEC voltage (voltage regulator for powering radio and sevos):User selectable choice from 5 to 8.4 volt output
BEC output amperage:5 amp peak**
Size and Weight
Width:1.2 (30.5mm)
Length:2.6 (66mm)
Height:0.8 (21.4mm)
Weight w/wires:2.9 oz (81g)
Weight w/o wires:1.4 oz (41g)
Key Info:
- Brand: Castle Creations
- Part No: P-CC11200
- Barcode: 819326010156
