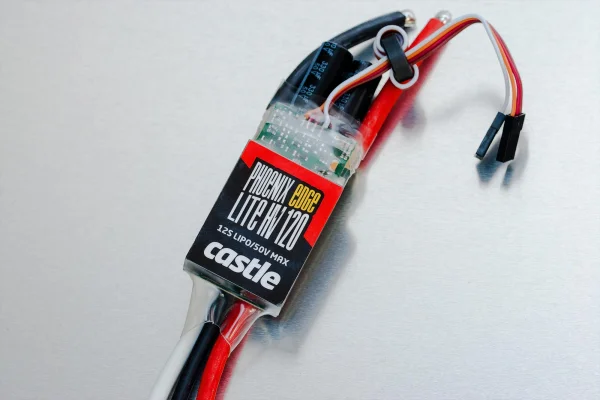

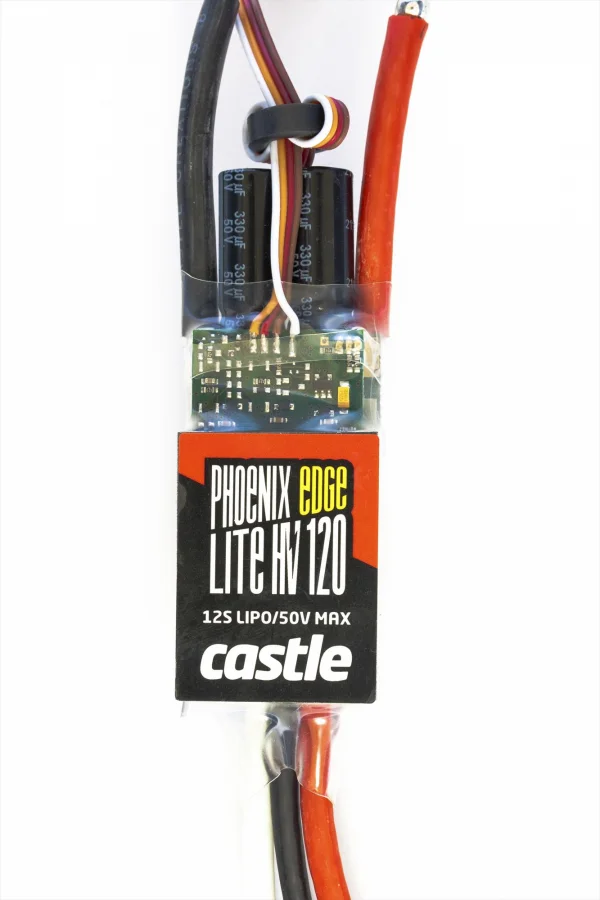

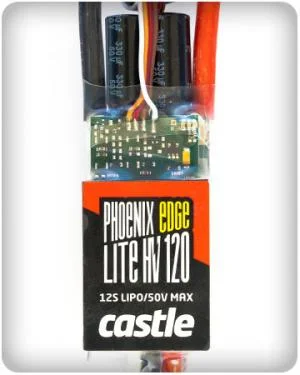

Castle Creations Phoenix Edge Lite HV 120 ESC
Brand: Castle Creations
Part No: P-CC11900
Out Of Stock
Request Stock NotificationThe Castle Creations Phoenix Edge Lite HV 120 ESC (P-CC11900) delivers the capability of the Edge HV series in a lighter, compact form for models where space and weight matter. Rated at 120A continuous and supporting 3–12S LiPo packs, it pairs robust power handling with advanced control features suited to demanding electric helicopters and fixed‑wing aircraft.
At the heart of the Edge platform is a user‑programmable auxiliary (white) wire that unlocks multiple functions. Combined with detailed data logging and Castle Link USB configuration, the Edge Lite HV 120 offers flexibility and insight to help you dial in performance.
Key Features
- 120A continuous current handling at full throttle
- Input range: 3S–12S LiPo
- Lighter Edge Lite HV construction to reduce weight
- User‑programmable auxiliary (white) wire enables:
- Helicopter governor gain adjustments in flight
- Audible beacon to help locate the model after an unexpected landing
- RPM output for 3‑axis gyros that support RPM sensors
- ESC arming lock or receiver arming lock functionality
- Integrated data logging for post‑flight analysis
- USB programming capability via Castle Link USB adapter
Technical Specifications
- Input Voltage: Minimum 3S LiPo; Maximum 12S LiPo
- Max Continuous Current: 120A
- Dimensions (W×L×H): 30.5 × 76.2 × 21.4 mm
- Weight: 116 g (with wires); 52 g (without wires)
Suggested Compatibility
- Electric helicopters around 450 to 800 size
- Fixed‑wing aircraft around 1.20 size and larger
Engineered for efficiency and control, the Phoenix Edge Lite HV 120 brings the trusted Edge feature set to a lighter package, making it a strong choice for high‑voltage RC aircraft that need dependable power delivery and refined tuning options.
Secured by Stripe
Put your power system on a diet with the Phoenix Edge Lite HV series of ESCs. With the same amazing features and functionality of the Edge HV series, the Edge Lite HV offers a slight weight reduction for applications that are tight for space or weight. Simply put, the same brawn with less body - Phoenix Edge Lite HV.
With the debut of the Phoenix Edge series of ESCs the next evolution in speed controller technology has arrived. The Edge series introduces a user programmable auxiliary wire capable of functions modelers have only dreamed of, until now. The white auxiliary wire can be used for helicopter governor gain input adjustments mid-flight, serve as an audible beacon after an “unexpected landing”, act as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock or as a receiver arming lock. Combined with the data logging capability the Edge series of controllers offer, users can enjoy unparalleled versatility.
The Phoenix Edge series is intended for use in helicopters ranging from 450 to 800 size, and fixed wing aircraft up to 1.20 size and larger. As always, the Edge series of controllers offer industry-leading software functions, data logging, and USB programming capability via Castle LinkUSB adapter
The Phoenix Edge controllers deliver all of this while retaining the same astonishing prices as their predecessors.
Phoenix Edge Lite HV 120 SpecsApplications
Helis:N/A
Fixed wing:N/A
Technical Specs
Input voltage:MIN: 3S LiPo MAX: 12S LiPo
Max continuous amperage at full throttle:120 amps*
Size and Weight
Width:1.2 (30.5mm)
Length:3.0 (76.2mm)
Height:0.8 (21.4mm)
Weight w/wires:4.0 oz (116g)
Weight w/o wires:1.8 oz (52g)
Key Info:
- Brand: Castle Creations
- Part No: P-CC11900
- Barcode: 819326010477
