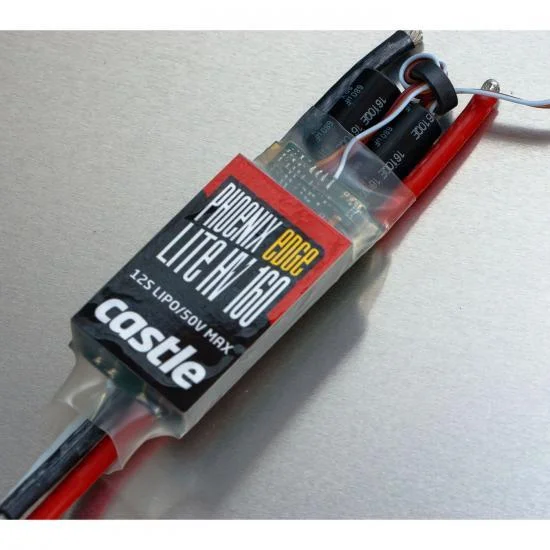

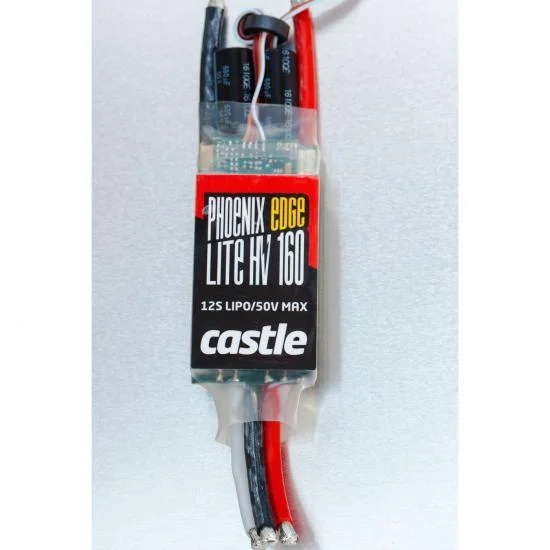

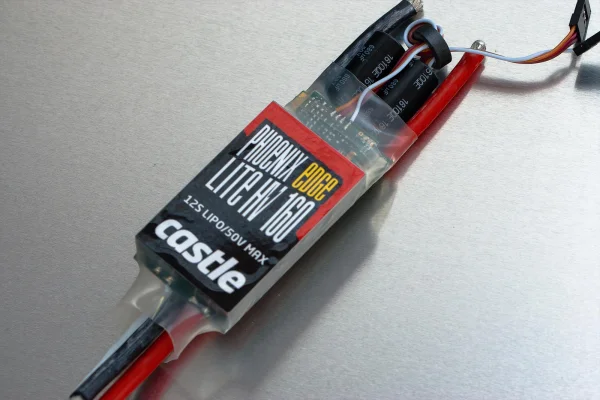

Castle Creations Phoenix Edge Lite HV 160 ESC

The Castle Creations Phoenix Edge Lite HV 160 ESC (P-CC11400) delivers high-voltage performance with a lighter footprint. Offering the same powerful feature set as the standard Edge HV series but with reduced weight, it’s a smart choice for applications where space and grams matter. Supporting 3S–12S LiPo setups and rated to 160 A continuous at full throttle, this Edge Lite HV model brings robust power handling in a compact package.

At the heart of the Phoenix Edge series is a user-programmable auxiliary wire that unlocks advanced functionality often reserved for specialist setups. Whether you need in-flight tuning, safety features, or telemetry-friendly outputs, the auxiliary wire helps tailor the ESC to your model and flying style.

Key Features

• Max continuous current: 160 A at full throttle
• Input voltage: 3S–12S LiPo
• User-programmable auxiliary wire enabling:
• Helicopter governor gain input adjustments mid-flight
• Audible beacon after an unexpected landing
• RPM output for 3-axis gyros that support RPM sensors
• ESC arming lock or receiver arming lock
• Integrated data logging for post-flight analysis
• USB programming via Castle Link USB adapter
• Edge Lite HV construction for weight reduction versus Edge HV

Technical Specifications

• Input voltage range: 3S–12S LiPo
• Max continuous amperage: 160 A*
• Dimensions (L × W × H): 4.0" × 1.5" × 1.0" (101.6 × 37.6 × 25.4 mm)
• Weight: 6.0 oz (171 g) with wires; 3.1 oz (89 g) without wires

Suggested Compatibility

The Phoenix Edge series is suggested for use in helicopters in the 450–800 size class and fixed-wing aircraft around 1.20 size and larger.

With powerful high-voltage handling, comprehensive data logging, and flexible auxiliary wire functions, the Phoenix Edge Lite HV 160 provides the capability and configurability expected from Castle Creations, in a lighter package for demanding RC aircraft installations.
