Castle Creations Talon 120HV 120AMP 12S MAX HD BEC

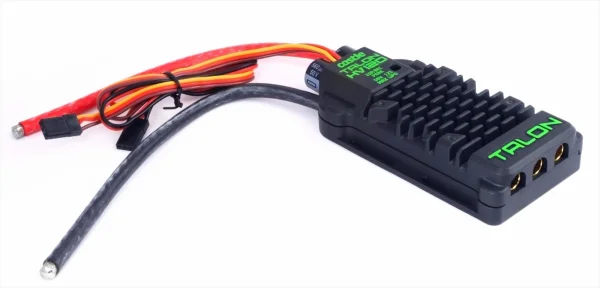

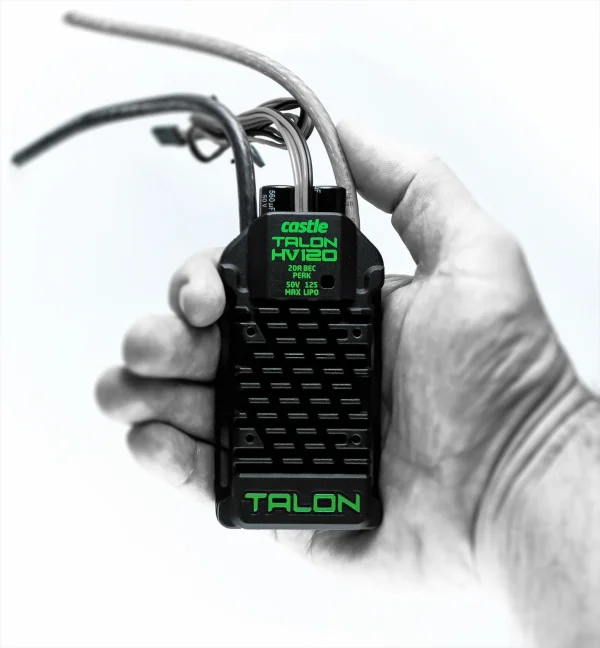

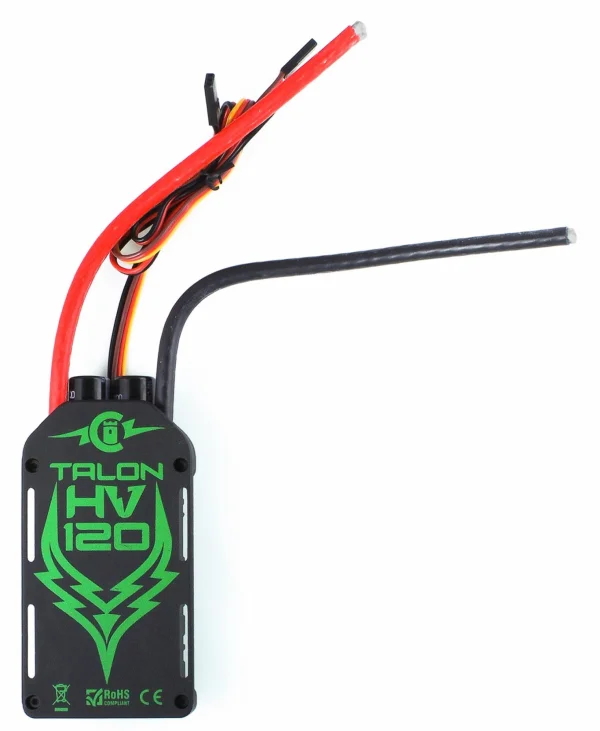

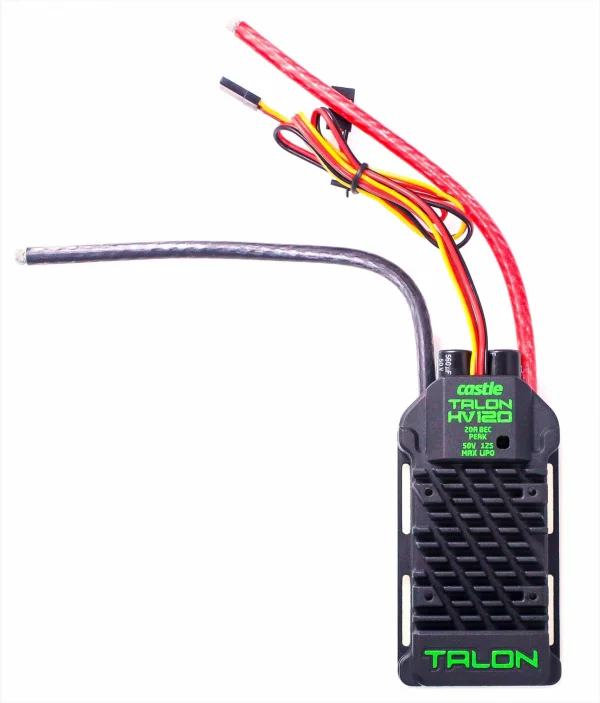

The Castle Creations Talon 120HV (P-CC013100) is a high-voltage brushless ESC designed for demanding RC helicopter and fixed-wing applications. Delivering 120A continuous current on 3S–12S LiPo and up to 6000W of continuous power, it pairs performance with control thanks to an integrated heavy-duty BEC and Castle’s renowned software.

At its heart is a built-in BEC rated at 10A continuous and 20A peak with selectable 6V or 8V output, removing the need for an external unit and simplifying wiring. A sleek aluminium case helps the Talon 120HV stay cool under sustained load, while USB programming via Castle Link gives access to advanced setup options. For installations with limited airflow, an optional 40mm fan accessory is recommended.

Key Features

• Integrated heavy-duty BEC: 10A continuous, 20A peak, selectable 6V or 8V
• Wide input range: 3S–12S LiPo
• 120A continuous current; up to 6000W of continuous power
• Aluminium case for efficient cooling and durability
• USB programming capability via Castle Link
• Optional 40mm fan accessory recommended for low-airflow setups
• Built-in 5.5mm female motor bullets

Specifications

• B.E.C. Current: 10A continuous, 20A peak
• Battery: Min 3S LiPo; Max 12S LiPo
• Connectors: Motor – built-in 5.5mm female bullets; matching 5.5mm male bullets included
• Maximum Continuous Current: 120A
• Length: 96.8mm
• Width: 51.1mm
• Height: 20.4mm

What’s Included

• Matching 5.5mm male bullets for motor connections
