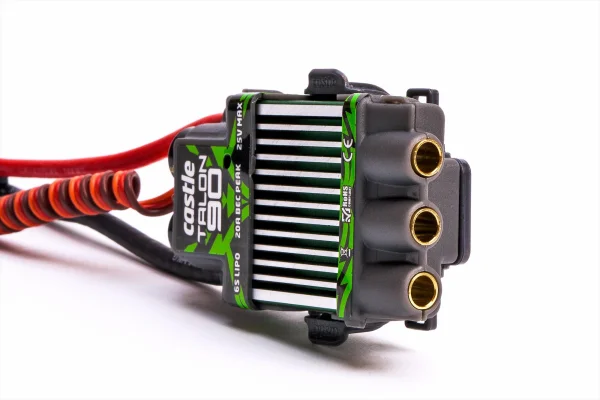

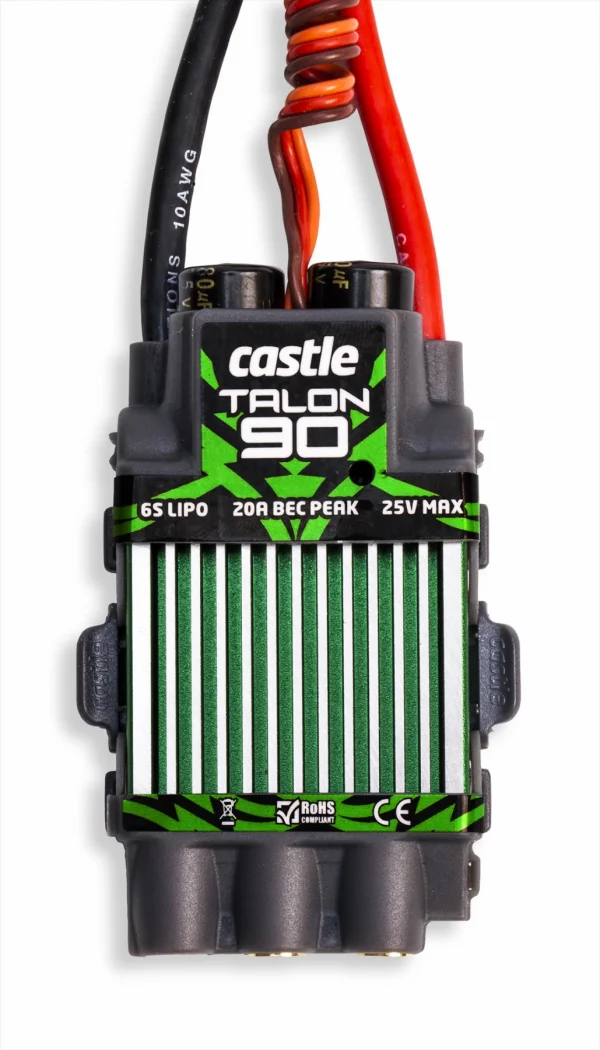

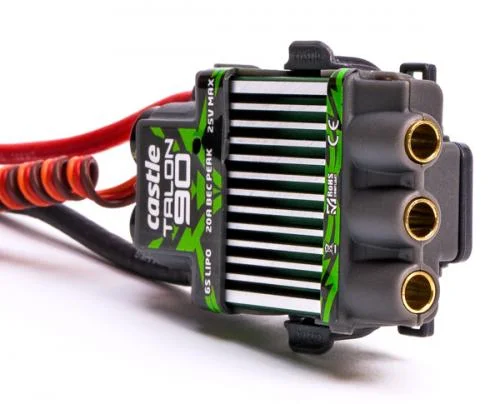

Castle Creations Talon 90 - 25V 90A ESC - With High Output BEC
Brand: Castle Creations
Part No: P-CC09700
Out Of Stock
Request Stock NotificationThe Castle Creations Talon 90 (P-CC09700) is a 25V, 90A electronic speed controller featuring a high-output BEC engineered for today’s power-hungry servos. The BEC provides user-selectable 6V or 8V with 9A continuous and up to 20A peak, helping maintain reliable control in demanding RC applications. Supporting 3S–6S LiPo setups and programmable parameters, it offers the flexibility expected from Castle.

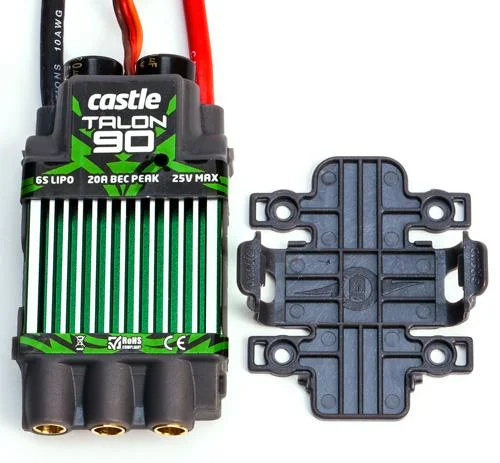

Designed with an innovative case to aid cooling in tight installations, the Talon 90 brings Castle’s proven helicopter functions, including a direct-entry governor mode for precise headspeed control.
Programming & Setup
Access advanced settings and the direct-entry governor by using a Castle Link USB adapter (sold separately) with the free Castle Link GUI on a Windows PC. Simply type in the desired RPM for straightforward setup.
Suggested Compatibility
- Helicopters drawing around 2,000 watts on 6S
- Extreme 500 and 550 class helis, and sport (6S) 600 setups
- Fixed-wing aerobats up to 10 lb and scale ships up to 20 lb
Key Specifications
- Input voltage: 3S–6S LiPo
- BEC voltage: 6V or 8V, user selectable; 9A continuous, 20A peak
- Auto cutoff: Yes, programmable
- Brakes: Yes, programmable
- PWM frequency: Programmable
- Input connector: Bare wire
- Output connector: 5 mm female bullets
- Height: 1.7 in (43 mm)
- Width: 1.7 in (43 mm)
- Weight: 3.0 oz (84.5 g)
Required to Complete
- Battery connectors (sold separately)
- Female motor bullets are built into the ESC
- Matching male bullets are included and need to be installed on the motor
Secured by Stripe
Castle’s Talon 90 ESC sports a BEC designed for today’s servos, pumping out up to 20 amps peak power and 9 amps of continuous power to keep even the hungriest servos happy.

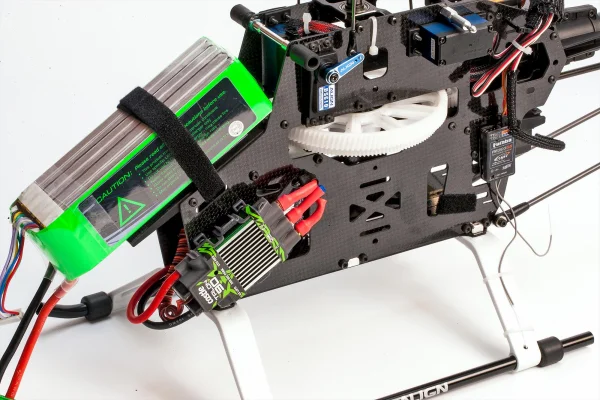

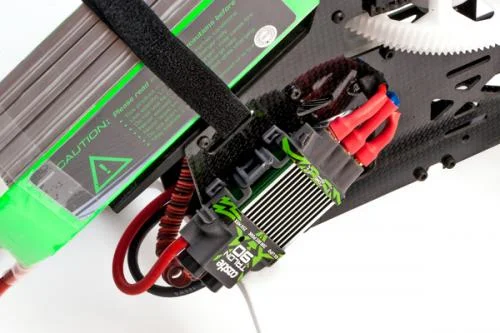

Talon 90 is ideal for helicopters drawing 2,000 watts on 6S. It’s a great fit for extreme 500 and 550 class helis and sport (6S) 600 setups. Of course, Talon offers Castle's industry-leading helicopter functions, such as the unbelievable direct entry governor mode. Simply type in the desired RPM using a Castle Link USB adapter (sold separately) and the free Castle Link GUI running on a Windows PC!
The Talon 90 is also perfect for fixed-wing aerobats up to 10 pounds and scale ships up to 20 pounds. The innovative case ensures cooling in even the toughest mounting locations.
Castle Creations Talon 90 - 25V 90A ESC - With High Output BEC Specfications:- Amperage: : 60 & Up
- Auto Cutoff: : Yes, programmable
- BEC Voltage: : 6V or 8V, user selectable; 9A continuous, 20A peak output
- Brakes: : Yes, programmable
- Height: : 1.7 in (43mm)
- Input Connector Types: : Bare wire
- Input Voltage: : 3S-6S LiPo
- Length: : 3.0 oz (84.5 g)
- Output Connector Types: : 5mm female bullets
- PWM Frequency: : Programmable
- Weight: : 3.0 oz (84.5 g)
- Width: : 1.7 in (43mm)
- Battery connectors (sold separately)
- Female motor bullets are built into the ESC
- Matching male bullets are included, need to be installed on motor
Key Info:
- Brand: Castle Creations
- Part No: P-CC09700
- Barcode: 819326010316
