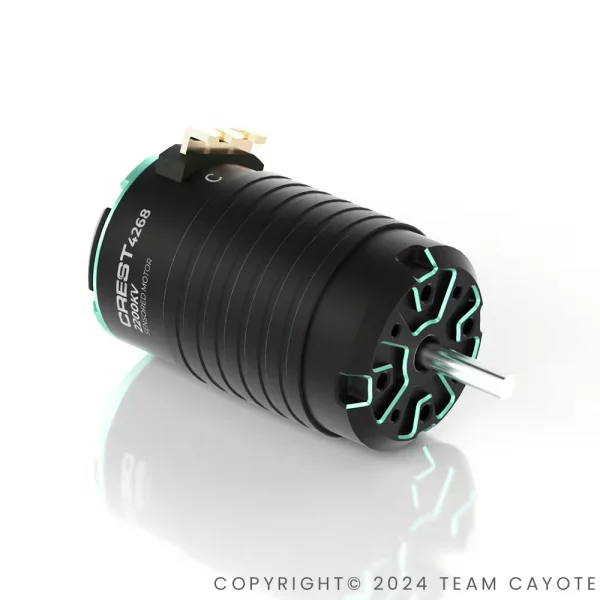

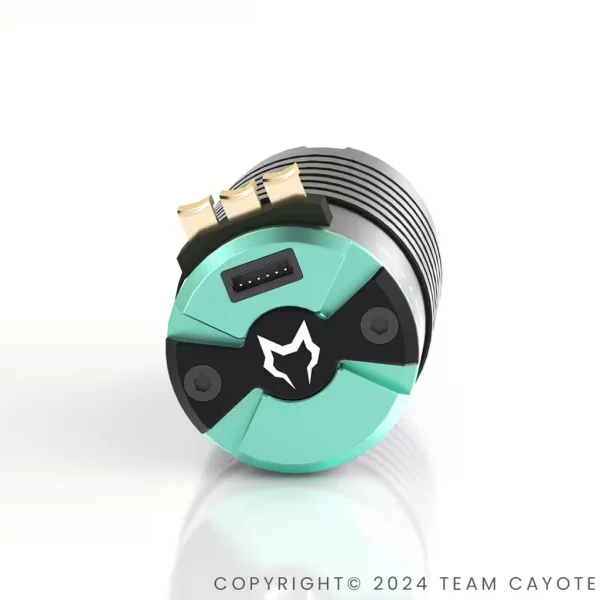

CAYOTE 1:8 CREST 4268 2200KV Brushless Motor

The Cayote Crest 4268 2200KV sensored brushless motor (SCH-CYEB10803) delivers precise, connected control for demanding 1/8 scale applications. With ultra-fast response and refined low-speed behaviour, it offers smooth, linear acceleration and braking across a wide range of track conditions.

Combining a sensored system with a proprietary optimisation approach, the Crest 4268 enhances output efficiency while ensuring accurate rotor position detection during start-up, acceleration and low-speed running. A low cogging torque design minimises torque ripple, mechanical vibration and operating noise, helping maintain consistent traction and predictable handling.

Performance Highlights

• Adjustable mechanical timing from 20° to 40°, set clockwise or counter-clockwise to suit track conditions.
• Ultra-fast response with precise rotor position detection for clean launches and controlled low-speed driving.
• Smoother, more linear throttle feel that reduces jitter and delay common in traditional sensored systems.
• 2200KV rating in the 4268 size for strong, consistent power delivery in 1/8 scale platforms.

Design And Durability

• CNC-machined solid metal housing with an integrated sealed structure for protection against dust and debris.
• Front end bell with M3 and M4 mounting holes to support various motor mount patterns.
• Precision copper windings with high-current copper tabs for efficient power transfer.
• High-temperature-resistant, explosion-proof rotor and high-performance precision bearings for high-RPM durability.

Suggested Compatibility

• 1/8 scale RC cars that accept 4268-size sensored brushless motors.
• Motor mounts using M3 or M4 bolt patterns.
