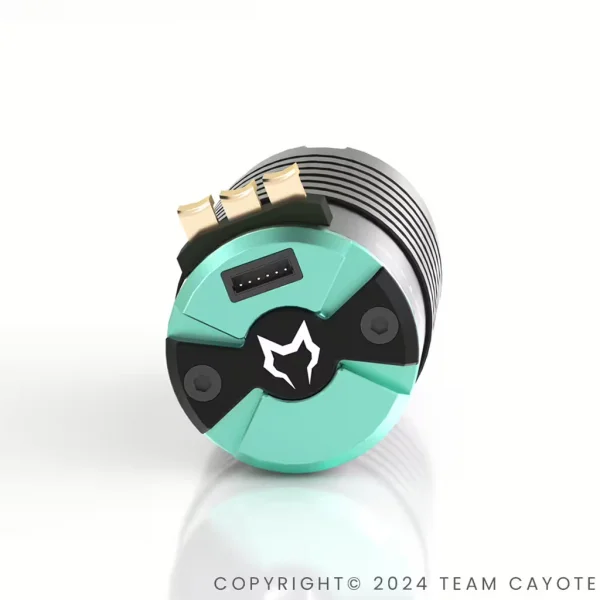

CAYOTE 1:8 CREST 4268 2400KV Brushless Motor

The Cayote Crest 4268 2400KV sensored brushless motor is engineered for 1/8 scale performance, delivering smooth, linear control and efficient power. A high‑performance control assistant, enhanced by a proprietary optimisation algorithm, supports ultra‑fast direct‑drive response and precise rotor position detection at startup, during acceleration, and at low speed—helping to eliminate the jitter and delay common in traditional sensored systems.

Mechanical timing can be adjusted clockwise or counterclockwise within a precise 20–40° range, allowing fine tuning for different track conditions while maintaining clean, consistent response.

Key Features

• Sensored brushless design with ultra‑fast response and accurate rotor position detection for refined low‑speed control.
• Adjustable mechanical timing: 20–40° range, both clockwise and counterclockwise.
• Low cogging torque design for smooth low‑speed running, linear acceleration and braking, reduced vibration, and lower operating noise.
• CNC‑machined solid metal housing with an integrated sealed structure to help protect against dust and debris.
• Front end bell with M3 and M4 mounting holes; suggested compatibility with various motor mounts.
• Precision copper windings with high‑current copper wire tabs.
• High‑temperature resistant, explosion‑proof rotor and high‑precision bearings for durability at high RPM.
• 2400KV variant within the Crest 4268 range for 1/8 scale models (SCH‑CYEB10804).

Every component of the Crest 4268 works together to deliver strong, consistent power with minimal mechanical vibration and optimised efficiency—built for stability and made for racing.
