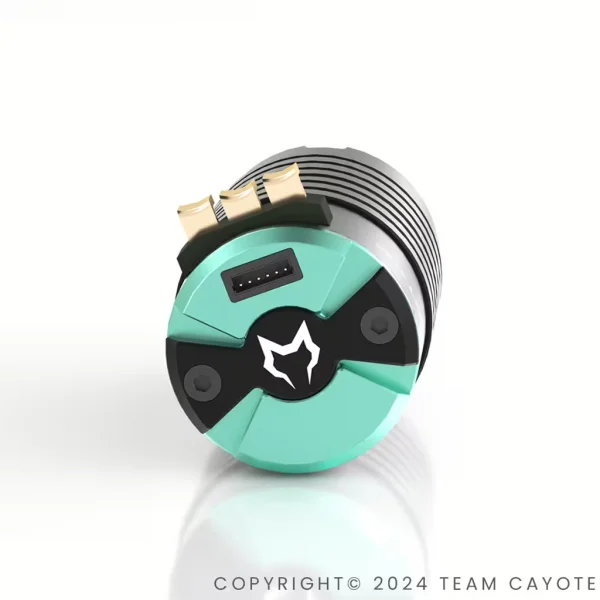

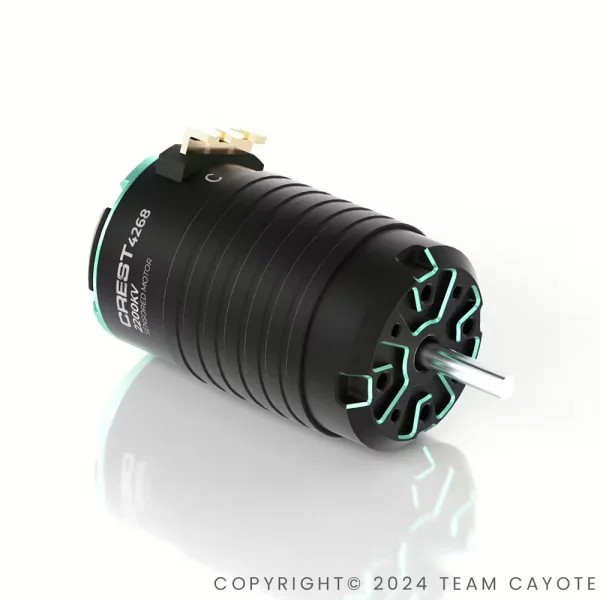

CAYOTE 1:8 CREST 4268 2800KV Brushless Motor

The Cayote Crest 4268 2800KV sensored brushless motor (SCH-CYEB10806) is engineered for 1/8 scale performance, delivering precise low-speed control and strong, consistent power. With adjustable mechanical timing and a robust, sealed construction, it’s built to keep your setup running smoothly across a wide range of track conditions.

An enhanced control system, supported by a proprietary optimisation algorithm, improves output efficiency and rotor position detection during start-up, acceleration and low-speed running. The result is rapid response with a smooth, linear and highly controllable feel that helps reduce the jitter and delay often associated with traditional sensored systems.

Key Features

• Sensored control with precise rotor position detection for refined start-up and low-speed performance.
• Adjustable mechanical timing both clockwise and counter-clockwise within a 20–40° range, allowing fine tuning to different track types.
• Low cogging torque design minimises torque ripple for smooth low-speed running, linear acceleration and braking, reduced vibration, lower operating noise and improved efficiency.
• CNC-machined solid metal housing with an integrated sealed structure for added protection against dust and debris.
• Front end bell provides M3 and M4 mounting holes for flexible installation and suggested compatibility with a variety of motor mounts.
• High-temperature-resistant, explosion-proof rotor paired with high-performance precision bearings for durability at high RPM.
• Precision copper windings with high-current copper wire tabs to support consistent power delivery.

Suggested Compatibility

• 1/8 scale RC platforms where a 4268-size, 2800KV sensored brushless motor is appropriate.
• Motor mounts that accept M3 or M4 fixing holes.

The Crest 4268 series is available in multiple KV ratings for different 1/8 scale applications; this listing is the 2800KV variant.
