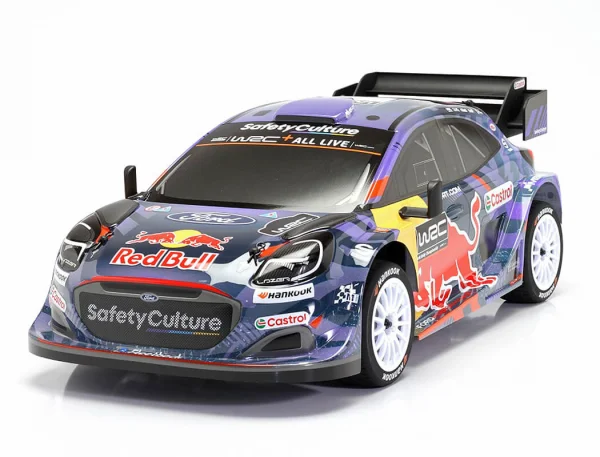

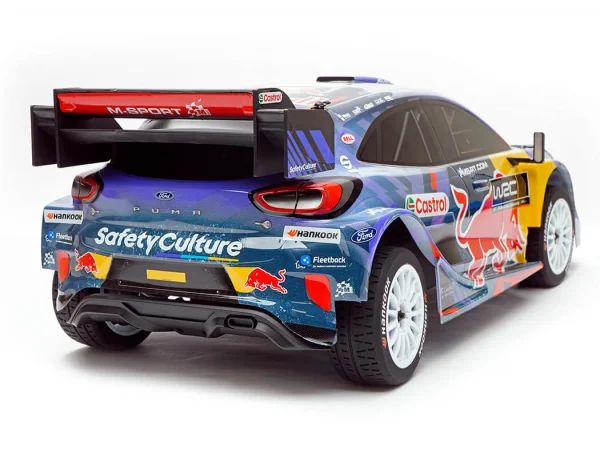

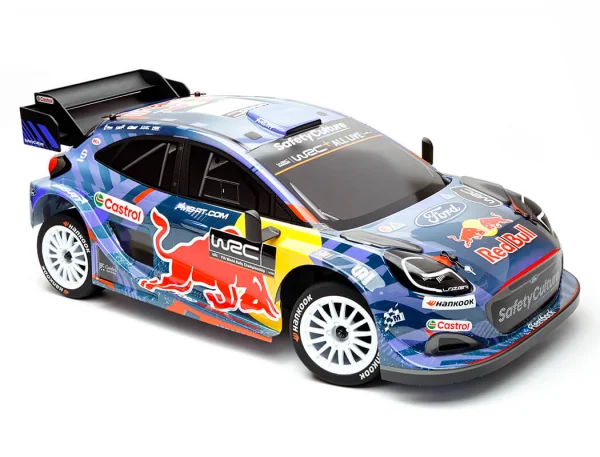

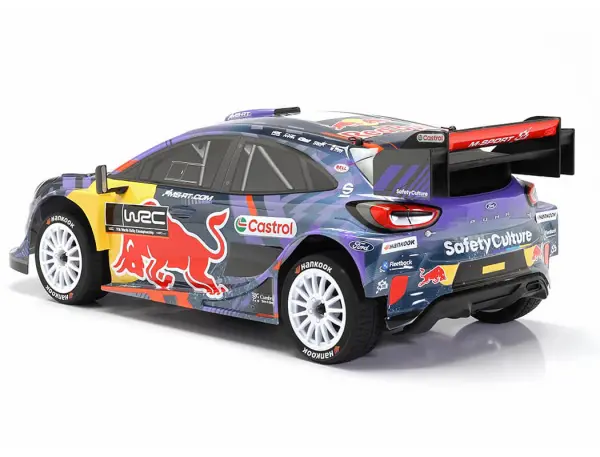

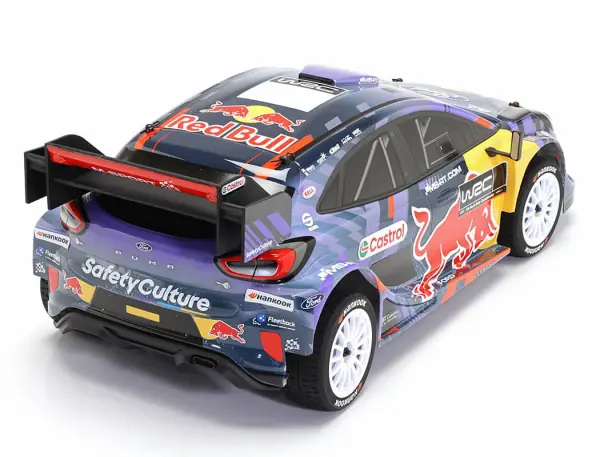

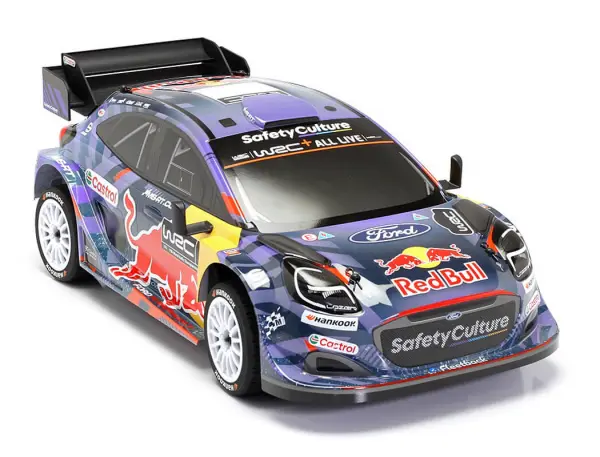

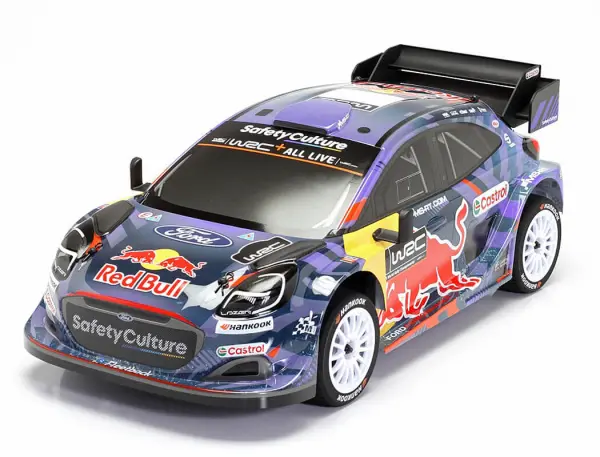

CEN 2025 M-Sport Ford Puma Rally 1:8 RTR

The CEN Racing 2025 M‑Sport Ford Puma Rally1 1:8 RTR Brushless (part number CEN9001) brings licensed rally styling together with a robust brushless power system and a durable 4WD chassis. Powered by a Hobbywing-based 100A ESC and a 3658 3000KV brushless motor, it’s engineered for confident performance on mixed surfaces, with water‑resistant electronics and comprehensive protection features.

Features

• WP‑MAX10 SCT 100A sensorless ESC (Powered by Hobbywing) with T‑Plug
• Supports 2–3S Li‑Po or 6–9 cell Ni‑MH batteries
• Water‑proof and dust‑proof electronics for all‑weather running
• Switch‑mode BEC with selectable 6.0V / 7.4V for high‑voltage servos
• Built‑in capacitor module and automatic throttle range calibration
• Low‑voltage cut‑off for Li‑Po/NiMH, over‑heat and signal‑loss protection
• Five levels of acceleration/punch and nine levels of maximum brake force

Specifications

• Motor: CEN Racing 3658 3000KV brushless (sensorless)
• Servo: 12 kg Savox metal‑gear, 25T spline; 4.8V: 0.26 s/60° 10.0 kg‑cm; 6.0V: 0.23 s/60° 12.0 kg‑cm
• Radio System: AMP‑30 TX 3‑channel 2.4GHz with digital trims, steering dual‑rate and EPA; built‑in failsafe. Power: 4 × AA alkaline (not included). AMP30 RX 3‑channel receiver, DC 4.8–6.0V, approx. 1.35" × 0.72" × 0.53"

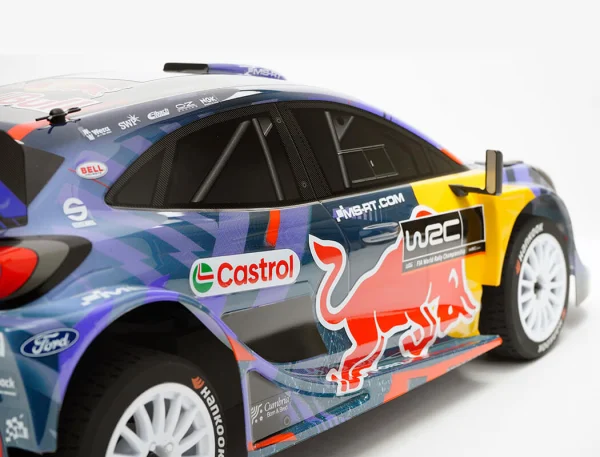

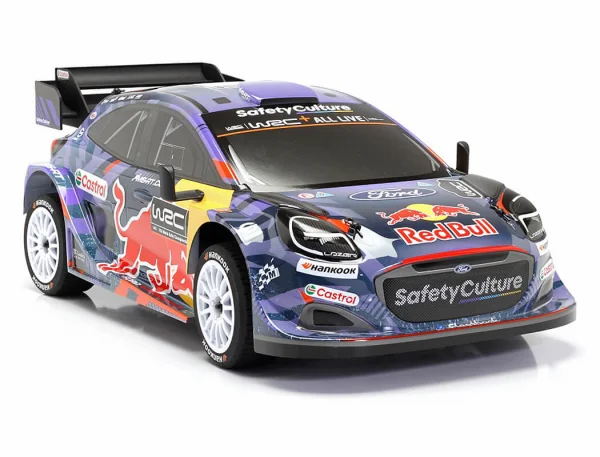

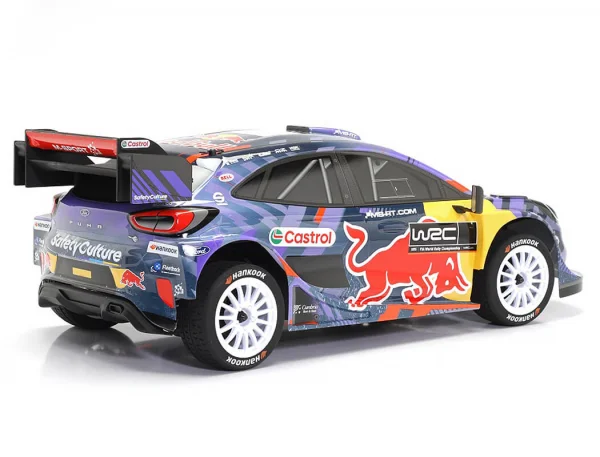

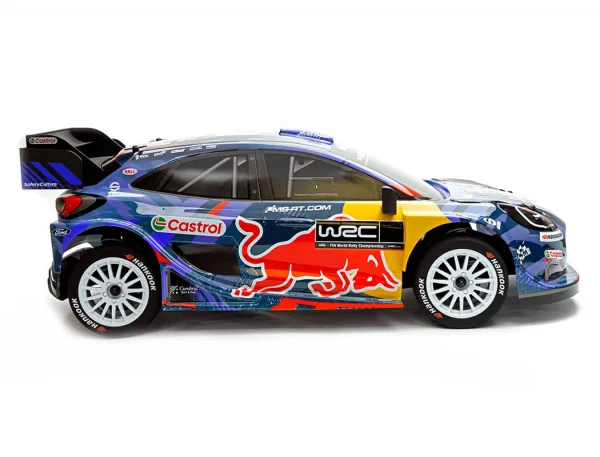

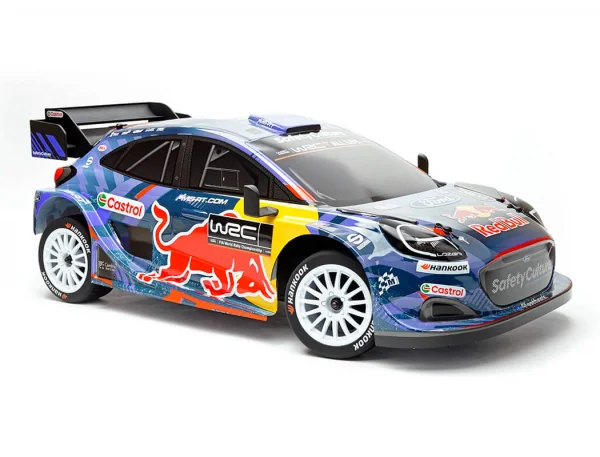

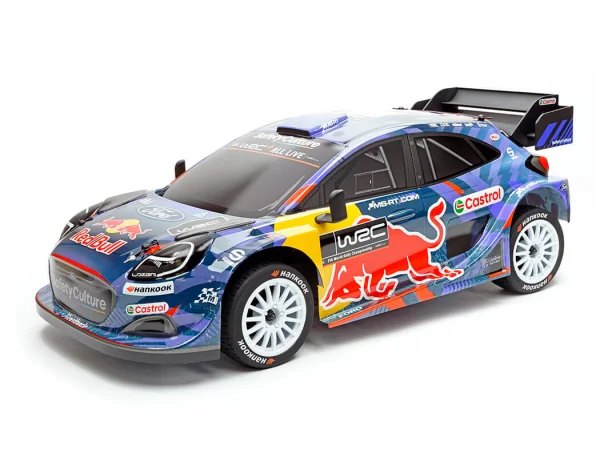

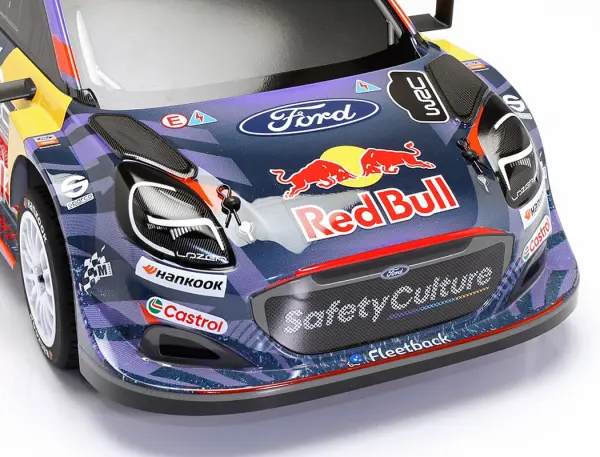

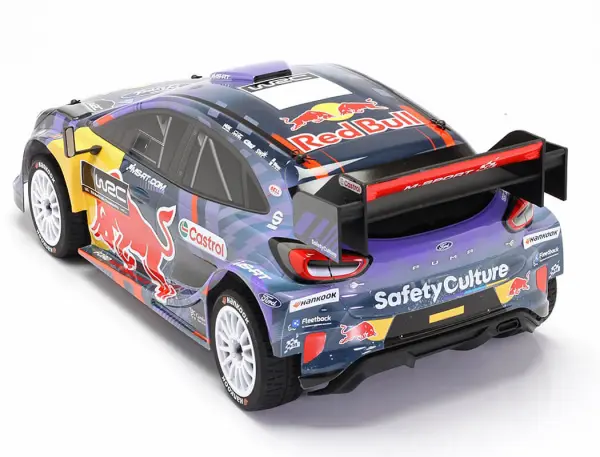

• Body: Officially licensed 2024 M‑Sport Ford Puma Rally1 edition with detailed injection‑moulded accessories; approx. 510 mm (L) × 240 mm (W)

Chassis & Dimensions

• 3 mm aluminium chassis with 3 mm aluminium front/rear shock towers
• Aluminium arm brace and full precision ball bearings
• Wider body mount positions, front skid plate and foam bumper
• Injection‑moulded rear diffuser and easy‑access battery tray
• Battery tray size: 142 mm × 48 mm
• Chassis length: 460 mm; width: 230 mm; wheelbase: 300 mm; ground clearance: 25 mm

Suspension

• Aerodynamic lower arm design
• Big‑bore, oil‑filled, adjustable coil‑over shocks
• 12 mm oversize shock bodies with 3 mm hardened polished shafts
• Racing springs and adjustable turnbuckles
• Adjustable wheelbase ±6 mm

Drivetrain & Gearing

• Full‑time 4‑wheel drive with centre shaft drivetrain for efficient power delivery
• Aluminium adjustable motor mount; oil‑filled two‑differential system
• Centre direct drive; 6‑gear bevel type differentials
• Front/rear hardened steel dog bones and outdrives; metal transmission gears
• Spur/pinion: 46/14T (3.29:1); ring & pinion: 40/17T (2.35:1)

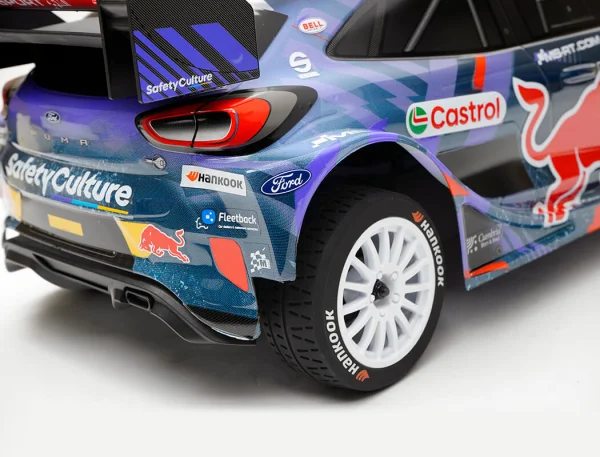

Wheels & Tyres

• High‑impact, lightweight WRC racing wheels: 56 × 35.50 mm
• High‑performance rubber compound tyres: 56 × 80 × 35.50 mm

Combining a licensed M‑Sport Ford Puma Rally1 shell with a capable brushless setup and a tough aluminium backbone, the CEN Racing CEN9001 is a compelling 1:8 RTR rally platform for enthusiasts seeking durability, adjustability and all‑weather performance.
