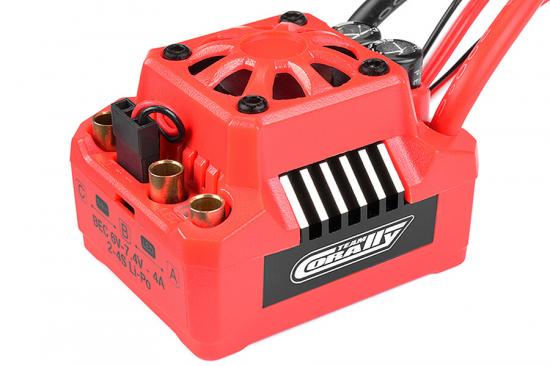

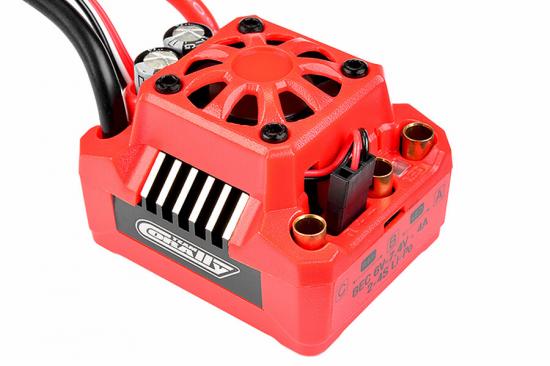

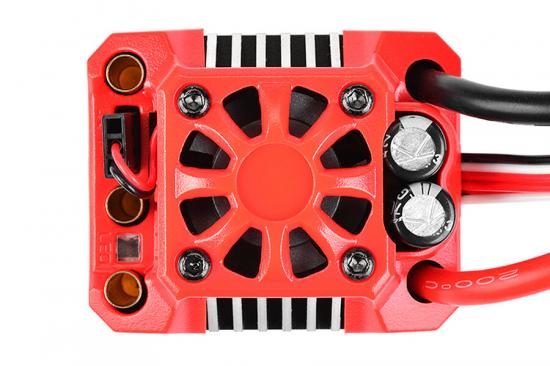

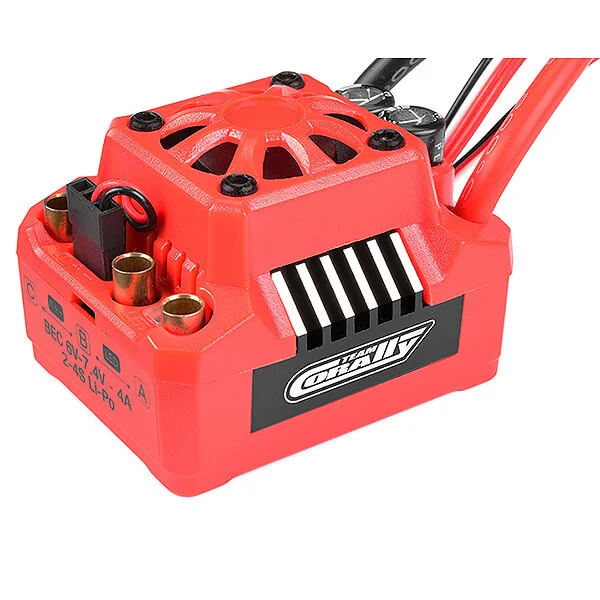

Corally Torox 135 Brushless ESC 2–4S (C-54012)

The Corally Speed Controller Torox 135 Brushless 2–4S (C-54012) is a robust electronic speed controller designed for powerful brushless setups. Delivering 135A continuous current and up to 830A peak, it supports 2–4S LiPo (7.4–14.8V) or 6–12 cell NiMH packs. A programmable 6–7.4V/4A BEC, water protection and an integrated 25x25x10mm cooling fan help maintain consistent performance. Suggested compatibility includes 1/10–1/8 scale RC vehicles using 3656-size brushless motors within the stated KV limits.

Key Specifications

• Max. continuous current: 135A
• Peak current: 830A
• Input voltage: 7.4–14.8V (2–4S LiPo) or 6–12 cells NiMH
• Programmable BEC: 6–7.4V, 4A
• LiPo cutoff: Programmable
• Thermal protection temperature: 105°C / 125°C (programmable)
• Water protection: Yes
• Cooling fan: 25x25x10mm
• Suggested compatibility: 1/10–1/8 scale use
• Weight: 105 g

Motor Limits (3656 Size)

• 2S LiPo / 6-cell NiMH: up to 6000 KV
• 3S LiPo / 9-cell NiMH: up to 4000 KV
• 4S LiPo / 12-cell NiMH: up to 3000 KV

Dimensions & Connections

• Length: 49.0 mm | Width: 39.5 mm | Height: 34.7 mm
• Motor connector: 4.0 mm female
• Battery connector: XT90
• Battery wire size: 12 AWG
