Corally Varioprop Digital Servo Cr7225Mg High Voltage Core
Corally Varioprop Digital Servo Cr7225Mg High Voltage Core
Corally Varioprop Digital Servo Cr7225Mg High Voltage Core
Corally Varioprop Digital Servo Cr7225Mg High Voltage Core

Corally Varioprop Digital Servo Cr7225Mg High Voltage Core

Brand: Corally

Part No: C-52022

£20.89 RRP £21.99

In Stock: Usually ships same day

Collect Instore
Request Price Match Ask a Question Write a Review

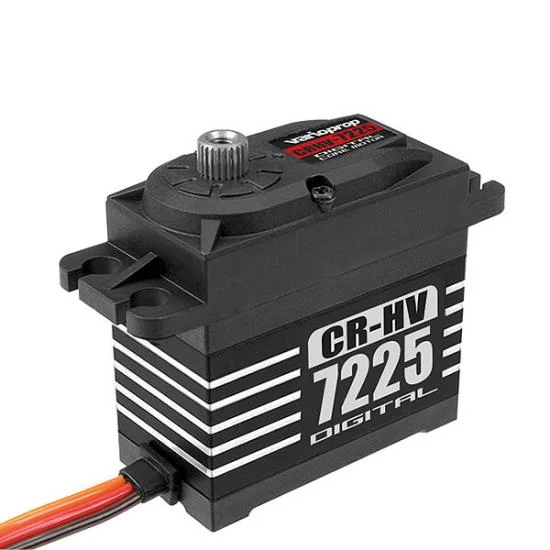

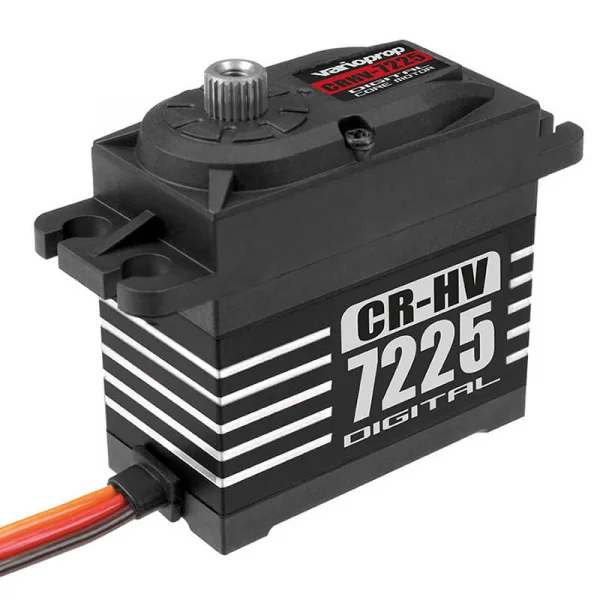

The Corally Varioprop CR7225MG (C-52022) is a standard-size digital high-voltage servo designed for dependable, precise control. A durable aluminium/composite case, metal gears and a ball-bearing output deliver smooth operation and long service life, while keeping weight to just 63 g.

Key Specifications

  • Servo technology: Digital ultra high voltage
  • Input voltage: 6.0–8.4 V
  • Type/size: Standard
  • Gear material: Metal gears
  • Bearings: Ball bearing
  • Motor type: DC motor
  • Case: Aluminium/composite
  • Connector: JR
  • Spline: 25T
  • Water protection: Water-resistant
  • Weight: 63 g
  • Dimensions (L x W x H): 40.5 x 20.5 x 28.5 mm

Performance Data

  • Servo speed per 60 at 6.0 V: 0.14 s
  • Servo speed per 60 at 7.4 V: 0.13 s
  • Torque range: 16–25 kg/cm
  • Torque @ 7.4 V: 25.0 kg/cm
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Specifications

Servo Technology: Digital Ultra High Voltage
Input Voltage (V): 6.0V - 8.4V
Weight (g): 63 g
Servo Type / Size: Standard
Length (mm): 40.5 mm
Gear Material: Metal Gears
Width (mm): 20.5 mm
Ball Beared: Ball Beared
Motor Type: DC Motor
Height (mm): 28.5 mm
Servo Case: Aluminium - Composite
Servo Power - Torque Kg/cm: 16 - 25 Kg/cm
Servo Speed 60/sec: 0,14 sec / 60
Speed 60/Sec @ 6.0V: 0,14 sec / 60
Speed 60/Sec @ 7.4V: 0,13 sec / 60
Torque kg/cm @ 7.4V: 25.0 Kg/cm
Connector type: JR
Spline size: 25T Spline
Water Protection: water-resistant




Key Info:
  • Brand: Corally
  • Part No: C-52022
  • Barcode: 8718057197360
  • Fitment: Standard Part
