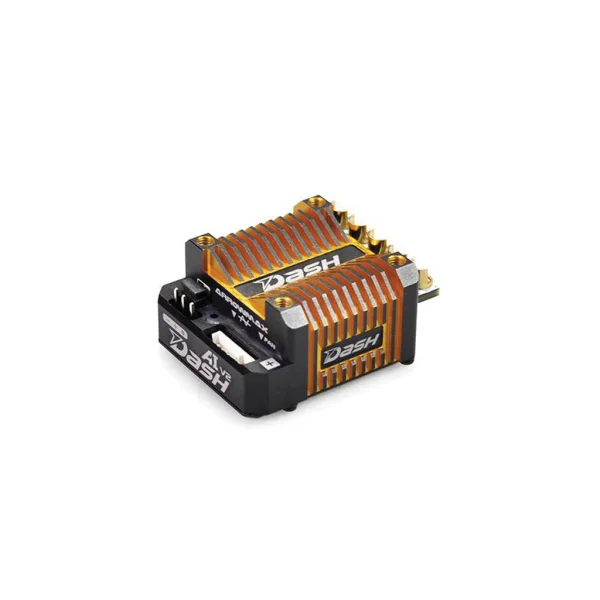

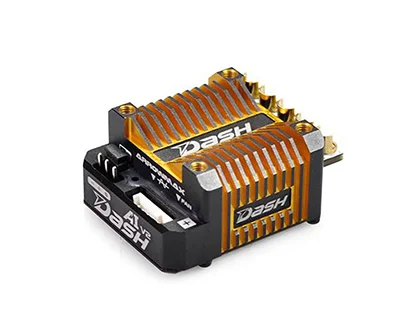

Dash Ai Pro V2 ESC

The Dash AI Pro V2 ESC (SCH-DA770004 / DA770004) is a 1/10 competition brushless speed controller engineered for top-tier racing. Built around state-of-the-art 32-bit microcontrollers and robust software, it delivers ultra-smooth power for modified classes and outstanding efficiency for stock racing. Developed with input from elite drivers Viktor Wilck and Nicholas Lee, this Reedy Race winning ESC pairs performance with a streamlined, user-friendly interface.

The signature golden-black case features an electrolytic two-step anodised heatsink for improved heat dissipation. A smaller, lighter redesign lowers overall weight and the centre of gravity, while a high-voltage 30mm turbo fan keeps temperatures in check during demanding runs.

Features

• 32-bit microcontrollers with refined, competition-ready software
• Electrolytic two-step anodised heatsink case in a signature golden-black finish
• Compact, lightweight design to reduce mass and lower centre of gravity
• High-voltage 30mm turbo fan for enhanced cooling
• Adjustable high-voltage BEC: 6V or 7V, 5A output
• Interchangeable A-B-C motor wiring configurations
• Power delivery tuned for smooth modified performance and efficient stock running
• New, easy-to-understand user interface for rapid setup

Specifications

• Application: 1/10 competition brushless ESC
• Input voltage: 4.8–9.9 V DC (2S LiPo / 2–3S LiFe)
• Peak current: 760 A
• Continuous current: 190 A
• Motor limit: 4.5T
• BEC output: 6 V / 7 V, 5 A
• Size: L33.5 x W41 x H21 mm
• Weight: 43 g

Programming is via the dedicated Dash program card #DA770015 (required), giving quick access to the V2’s advanced tuning parameters. Part number: SCH-DA770004.
