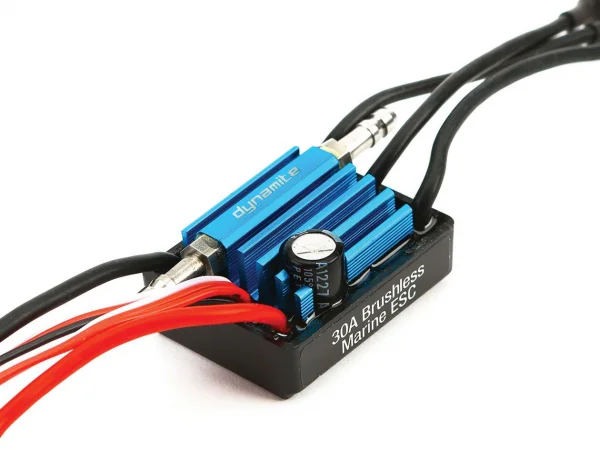

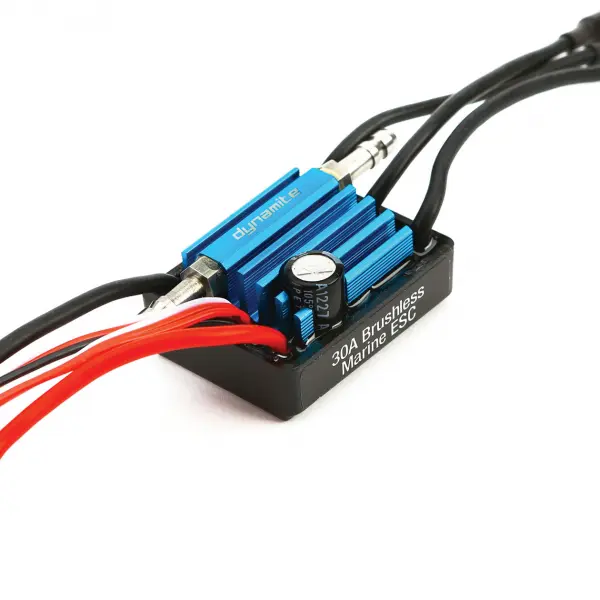

Dynamite 30A Brushless Marine ESC 2-3S LiPo

Brand: Dynamite

Part No: DYNM3860

£45.13 ~~RRP £47.50~~

Supplier Stock: Expected May 23rd

Request Price Match Ask a Question Write a Review

The Dynamite 30A Brushless Marine ESC 2–3S LiPo (DYNM3860) is a compact, reliable speed controller for RC boats. It supports 2–3S LiPo or 6–9 cell NiMH batteries and features a 6V linear BEC to power your receiver and servos. Forward, reverse and braking functions, along with key safety protections, offer smooth control and peace of mind on the water.

Key Features

Forward, reverse and brakes with time delay brake
Programmable low-voltage cutoff and auto cutoff
Overload protection
EC3 battery connector with 14 AWG, 110 mm input leads
4 mm motor bullet outputs with 14 AWG, 75 mm leads
Linear 6V BEC: 1A continuous, 2A burst
Low internal resistance: 0.002 ohms
Marine brushless speed control design

Specifications

Input voltage: 2–3S LiPo; 6–9 cells NiMH
Maximum burst current: 180A
BEC type/voltage: Linear, 6V
BEC current: 1A continuous, 2A burst
Battery connector: EC3
Output connector: 4 mm bullets
Battery input lead: 14 AWG, 110 mm
Motor output lead: 14 AWG, 75 mm
Resistance: 0.002 ohms
Functions: Forward, Reverse, Brakes; Time Delay Brake

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

Dynamite 30A Brushless Marine ESC 2-3S LiPo Specfications:

Input Voltage: 2-3S LiPo, 6-9 cells NiMH
Motor Output Lead: 14 AWG, 2.95 in (75mm)
Part Type: Electronics
BEC: Yes
BEC Maximum Burst Current: 2A
BEC Voltage: 6V
Time Delay Brake: Yes
BEC Continous Current: 1A
Low-Voltage Cutoff Programmable: Yes
Auto Cutoff: Yes
Overload Protection: Yes
Output Connector: 4mm Bullet
Resistance: 0.002 ohms
Forward: Yes
Reverse: Yes
Brakes: Yes
Connector Type: EC3
Maximum Burst Current: 180A
Speed Control: Marine Brushless
Battery Input Lead: 14 AWG, 4.33 in (110mm)
BEC Type: Linear

Key Info:

Brand: Dynamite
Part No: DYNM3860
Barcode: 605482574973
Case Type: Shorty Hard Case
Fitment: Standard Part

Additional Categories:

Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Reviews

No specific product reviews yet, why not write one?

WRITE A REVIEW

Name

Rating

Your Review

All reviews are subject to moderation

Questions & Answers

Real questions from real customers. Why not ask your own?

Just wondered what battery connections came on the esc

Matthew / 24th April 2020

I believe it's EC3 on this

Ben @ Wheelspin Models

Hi , do you have an instruction how to program this ESC? or is it programmed already? I am looking for ESC for my project with an option to go forward as well as reverse motor direction

Arek / 3rd January 2020

As far as I know these are simple auto setup, with no setup required.

Ben @ Wheelspin Models
