Hobbywing Seaking 30A V4 Marine ESC
Brand: Hobbywing
Part No: HW30302061
In Stock: Usually ships same day
Finance options available at checkout.
Frequently Bought With
Other items customers often buy with the Hobbywing Seaking 30A V4 Speed Control
Description

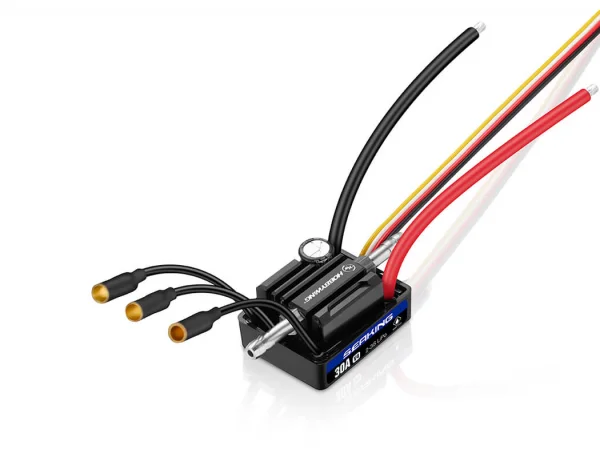

The Hobbywing Seaking 30A V4 Speed Control (HW30302061) is a compact, waterproof marine ESC for sensorless brushless boat setups. Delivering 30A continuous and 100A peak on 2–3S LiPo, it offers dependable power with a selectable 6V/7.4V BEC rated at 1.5A. Designed for tidy installs, it features pre-wired leads and robust 3.5mm gold female output connectors.
Key Specifications
- Operation: Brushless, sensorless
- Waterproof design
- Continuous/Peak Current: 30A / 100A
- Input Voltage: 2–3S LiPo
- BEC Output: 6V or 7.4V @ 1.5A
- Input Wires: Red 14AWG 75mm, Black 14AWG 75mm
- Output Wires: Black 16AWG 60mm x3
- Input Connectors: None
- Output Connectors: 3.5mm gold female plug
- Size: 32.8 x 26 x 18.3 mm
- Weight: 33.9 g (including wire and output plug)
- Boat applicable: ≤45 cm
Programming & Data Features
- Programmable via LED Program Box, LCD G2 Program Box, LCD PRO, or OTA Programmer
- Program port: Throttle signal wire
- Data recording: Extreme value, real-time, and historical (graph) supported
- Firmware upgrade supported
Suggested Compatibility
- RC boats up to 45 cm length
Secured by Stripe
Hobbywing Seaking 30A V4 Speed Control Manuals & Guides
Specifications
Brushed/Brushless: BL
Sensored/Sensorless: SL
Waterproof: Waterproof
Cont./Peak Current: 30A/100A
Input Voltage: 2-3S Lipo
BEC Output: 6V/7.4V @1.5A
Input Wires: Red-14AWG-75mmx1,Black-14AWG-75mmx1
Output Wires: Black-16AWG-60mmx3
Input Connectors: No
Output Connectors: 3.5mm Gold female plug
ESC Programing via -
LED Program Box: Supported
LCD G2 Program Box: Supported
LCD PRO: Supported
OTA Programmer: Supported
Program Port: Throttle signal wire
Data Recording -
Extreme value: Supported
Real-time Data: Supported
Historical data (Graph): Supported
Firmware Upgrade: Supported
Size: 32.8x26x18.3mm
Weight: 33.9g (Including wire and output plug)
Boat Applicable: ≤45CM
Unsure which Speed Controller you need for your model?
Visit our ESC Compare Centre and find the ideal speed controller for your needs.
