Add-ons and accessories that go with the ZTW Shark 60A SBEC ESC G2 (2-6 Cells) (Water-cooled)
Description

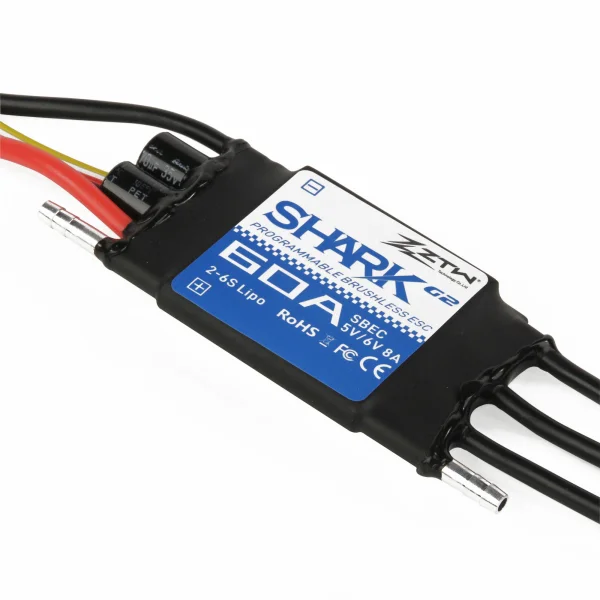

The ZTW Shark 60A SBEC ESC G2 (2-6 Cells) (Water-cooled), part number ZTW9060211, is a programmable brushless marine electronic speed controller for R/C model boats. It is designed for use with 2-6 cell battery setups and combines water cooling with a waterproof construction for marine applications.
This controller uses a 32-bit microprocessor to process input signals and provide smooth start-up with accurate throttle linearity. Its built-in switch-mode BEC supplies the receiver and connected radio-control electronics, while the compact casing keeps the controller's 70 g weight and dimensions manageable within an installation.
Features
The Shark G2 provides several protection functions for model boat operation. Over-temperature, low-voltage and phase-loss protection help monitor the power system, while signal-loss throttle shutdown stops the motor if the radio signal is interrupted. Power arming protection prevents the motor from starting accidentally when the controller is switched on, and high-throttle safety prevents arming when the throttle stick is not fully closed.
Users can select between forward and reverse operation or forward-only operation. The ESC can be programmed using a phone app or LCD program card, and it supports high-RPM brushless motors. Its water-cooling system is intended to dissipate heat during operation, while the waterproof design suits R/C model boat installations.
Specifications
- Application: R/C model boats
- Battery support: 2-6 cells
- Weight: 70 g
- Dimensions: 72 x 40 x 13 mm
Secured by Stripe
ZTW Shark 60A SBEC ESC G2 (2-6 Cells) (Water-cooled) Manuals & Guides
Specifications
Designed specifically to provide a solid, hassle-free performance, Shark programmable brushless marine ESCs offer high quality components programmed with ZTW s mature software at a price that ll have you reaching for your bank card. Now sporting super-fast 32-bit processing power, each controller is water-cooled, waterproof and packs a built-in switch-mode BEC. But that's not all. Featuring over temperature protection, a high-throttle safety function (that prevents the ESC from arming the motor if the throttle stick is not fully closed) and two running modes, there really isn t a better alternative for those who seek an affordable fit 'n' forget solution.
ZTW Shark 60A SBEC ESC G2 (2-6 Cells) (Water-cooled) Key Features:
- Designed specifically to provide a solid, hassle-free performance, Shark programmable brushless marine ESCs offer high quality components programmed with ZTW s mature software at a price that ll have you reaching for your bank card. Now sporting super-fast 32-bit processing power, each controller is water-cooled, waterproof and packs a built-in switch-mode BEC. But that's not all. Featuring over temperature protection, a high-throttle safety function (that prevents the ESC from arming the motor if the throttle stick is not fully closed) and two running modes, there really isn t a better alternative for those who seek an affordable fit 'n' forget solution.
- Super smooth start up and accurate throttle linearity.
- 32-bit microprocessor affords greater processing power and faster input signals.
- 100% waterproof.
- Water-cooling system ensures ultra efficient heat dissipation.
- Light and compact.
- Over temperature protection.
- Low voltage protection.
- Phase loss protection.
- Auto throttle shut down in signal loss situation.
- Supports high RPM motors.
- Power arming protection (prevents the motor from accidentally running when switched on).
- Programmable via phone app or LCD program card.
- Two running modes forward / reverse and forwards only.
ZTW Shark 60A SBEC ESC G2 (2-6 Cells) (Water-cooled) Tech Specs:
- Weight: 70g / 2.47oz
- Shipping Weight: 0.08kg / 0.17lbs
- Product Height: 13mm / 0.49in
- Product Width: 40mm / 1.57in
- Product Length: 72mm / 2.83in
- Application: R/C model boats
Key Info:
- Brand: ZTW
- Part No: ZTW9060211
- Barcode: 5051121263343
