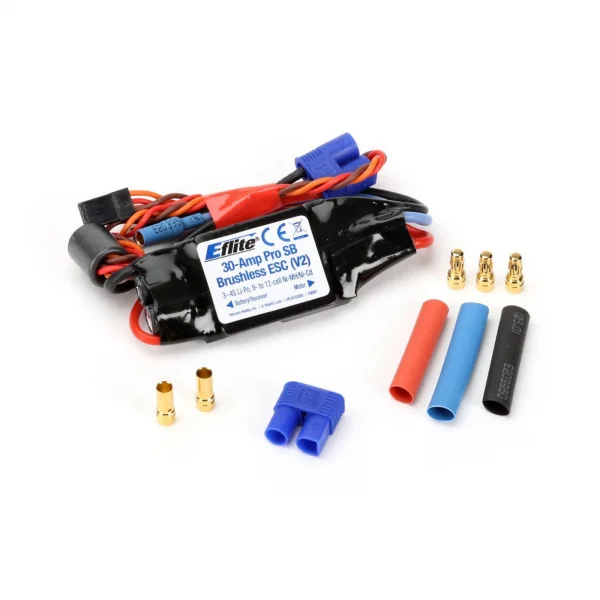

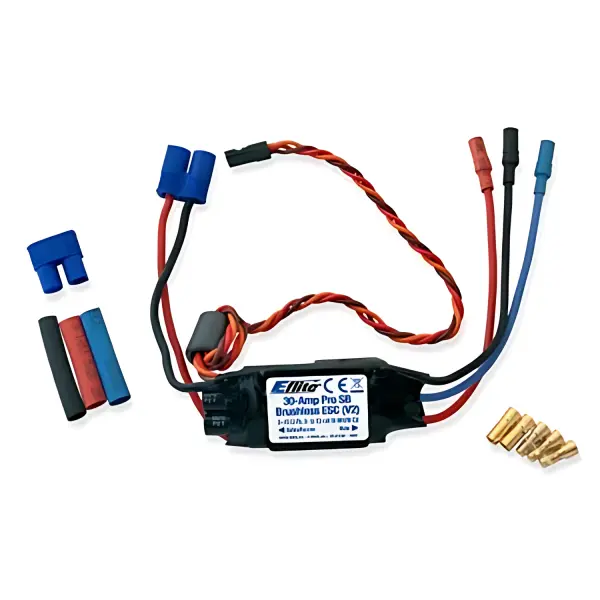

E Flite 30 AMP Pro Switch Mode BEC Brushless ESC (V2)

E Flite 30 AMP Pro Switch Mode BEC Brushless ESC (V2)

Brand: E Flite

Part No: EFLA1030B

£53.99 RRP £59.99

Shadow Stock: Usually ships next day

Collect Instore
Request Price Match Ask a Question Write a Review

The E-flite EFLA1030B 30-Amp Pro Switch-Mode BEC Brushless ESC (V2) is a lightweight, efficient, sensorless speed controller for electric aircraft. Its integrated 5V, 3.5A switch-mode BEC removes the need for a separate receiver battery and is strong enough to support most 3-axis stabilisation systems.

Key Features

  • Up to 30 amps continuous current with proper air flow and 35 amps burst current (15 seconds)
  • 3.5A continuous current, 5V switch-mode BEC circuit
  • Stronger BEC for support of most 3-axis stabilisation systems
  • Drive up to 7 analogue or 6 digital standard-size servos with the BEC
  • 3- to 4-cell Li-Po, 9- to 12-cell Ni-MH/Ni-Cd input voltage
  • Programmable motor braking
  • Safe power-arm mode prevents accidental starts
  • Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V) or 74% of battery starting voltage
  • Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)
  • Programmable soft start for helis and aeroplanes
  • Auto motor shut down if signal is lost or there is interference
  • Programmable timing – 5 user-selectable ranges for use with a large variety of brushless motors
  • Pre-wired connectors — EC3 battery input and 3.5mm gold bullet connectors on motor output leads

Specifications

  • Maximum Continuous Current: 30A
  • Maximum Burst Current: 35A (15 seconds)
  • BEC Output: 5V, 3.5A continuous, switch-mode
  • Input Voltage: 3–4S Li-Po (10.8–14.8V) or 9–12S Ni-MH/Ni-Cd
  • Input Connector: EC3
  • Output Connectors: 3.5mm bullets
  • Brakes: Yes

Suggested Compatibility

Suggested compatibility includes a range of E-flite, HobbyZone and ParkZone models and parts, such as EFL2725, EFL2900, EFL3100/E/EFL3180; HBZ8200, HBZ8280; and numerous ParkZone PKZ-series items including PKZ1950, PKZ4200, PKZ4300, PKZ4400, PKZ4700, PKZ5075 and more.

Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Key Features

  • Up to 30 amps continuous current with proper air flow and 35 amps burst current (15 seconds)
  • 3.5A continuous current, 5V Switch-Mode BEC Circuit
  • Stronger BEC for support of most 3-axis stabilization systems
  • Drive up to 7 analog or 6 digital standard-size servos with the BEC
  • 3- to 4-cell Li-Po, 9- to 12-cell Ni-MH/Ni-Cd input voltage
  • Programmable motor braking
  • Safe power-arm mode prevents accidental starts
  • Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V) or 74% of battery starting voltage
  • Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)
  • Programmable soft start for helis and airplanes
  • Auto motor shut down if signal is lost or there is interference
  • Programmable timing - 5 user-selectable ranges for use with a large variety of brushless motors
  • Pre-wired connectors—E-flite EC3™ connector on battery input and 3.5mm gold bullet connectors on motor output leads

Overview

The E-flite® 30-Amp Pro Switch-mode BEC Brushless ESC (V2). This is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.

Compatible Products E-flite 30-Amp Pro Switch-Mode BEC Brushless ESC (V2) EFLA1030B is compatible with EFL2725, EFL2900, EFL3100, EFL3100E, EFL3180, EFL4450, EFL4750, EFL4950, EFL4975, EFL6750, EFL6775, EFL6850, EFL6875, HBZ8200, HBZ8280, PKZ1950, PKZ1975, PKZ4200, PKZ4275, PKZ4300, PKZ4375, PKZ4400, PKZ4475, PKZ4480, PKZ4600, PKZ4675, PKZ4700, PKZ4775, PKZ4975, PKZ4980, PKZ5075, PKZ5080, PKZ5175, PKZ5180, PKZ5275, PKZ5375, PKZ5380, PKZ5475, PKZ5575, PKZ5580, PKZ5775, PKZ5780, PKZ5975, PKZ5980, PKZ6075, PKZ6080, PKZ6975, PKZ6980, PKZ8150, PKZ8175, PKZ8275

E Flite 30 Amp Pro Switch Mode BEC Brushless ESC (V2) Specfications:

  • BEC Voltage: 3.5A continuous
  • Brakes: Yes
  • Input Connector Types: EC3
  • Input Voltage: 10.8–14.8V
  • Maximum Burst Current: 35A
  • Maximum Continuous Current: 30A
  • Output Connector: 3.5mm Bullet


Key Info:
  • Brand: E Flite
  • Part No: EFLA1030B
  • Barcode: 605482079164
  • Fitment: Option Part
  • Fitment: Standard Part
Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Reviews
No specific product reviews yet, why not write one?
WRITE A REVIEW
All reviews are subject to moderation
Questions & Answers
Real questions from real customers. Why not ask your own?
hi , I have a Parkzone spitfire, mk9, when I switch it on I can move all the surfaces but not the throttle/Prop,no idea why, it used to be fine, and hasn't been used much? many thanks,
Noel Mcnamee / 10th June 2020

Hmm, most ESC's won't "arm" unless the throttle stick and trim are all the way down?

Ben @ Wheelspin Models
Will the motor connectors need to be soldered
Robert / 1st June 2020

This has bullet connectors pre-made on for the motor

Ben @ Wheelspin Models
Will the battery connector need to be soldered?
Robert / 1st June 2020

No these include an EC3 premade on

Ben @ Wheelspin Models
