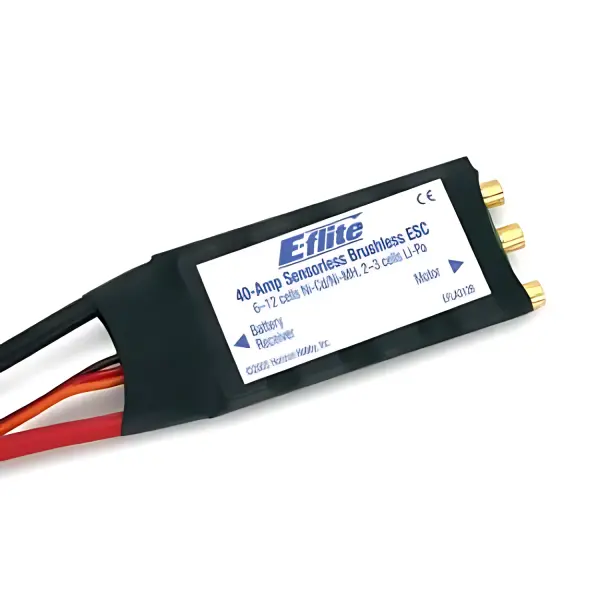

E Flite 40 AMP Brushless ESC Version 2 ** CLEARANCE **

The E-flite 40 Amp Brushless ESC Version 2 (EFLA312B) delivers reliable, programmable control for brushless power systems. It features improved BEC capability and an auto-select cutoff that recognises LiPo packs, plus a programmable option for Ni-Cd/Ni-MH use. Advanced software, thermal overload protection and safe power-on mode help protect your model and electronics, while automatic motor timing simplifies setup.

Programming options include adjustable braking and voltage cutoffs to suit common battery chemistries. Gold bullet connectors and extension wire leads are included for straightforward installation.

Key Features

• Up to 40A continuous current with proper air flow
• Dual BEC regulators for use with up to 4 servos when using 3-cell LiPo and 10-cell Ni-Cd/Ni-MH battery packs
• Programmable voltage cutoffs for 2–3 cell LiPo or 6–12 cell Ni-Cd/Ni-MH battery packs
• Programmable motor braking
• Automatically sets correct motor timing
• Safe power-on mode prevents accidental starts
• Includes gold bullet connectors and extension wire leads for your motor

Specifications

• Amperage: 40-60
• Auto Cutoff: yes programmable
• BEC Voltage: Dual BEC circuits
• Brake: yes programmable
• Continuous Maximum Current: 25 - 50A
• Height: 0.4 in (10mm)
• Input Voltage: 7.2–14.4V Ni-Cd/Ni-MH or 7.4–11.1V LiPo battery
• Length: 2 in (50mm)
• Type: Brushless
• Weight: 0.7 oz (20g)
• Width: 1 in (26mm)
