EnErG Pro I.C.52Fs O/R 715 (C42-30) Energ B/Motor

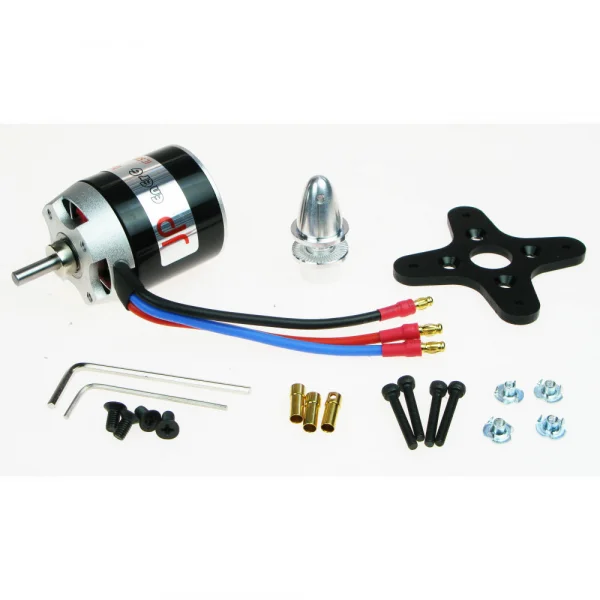

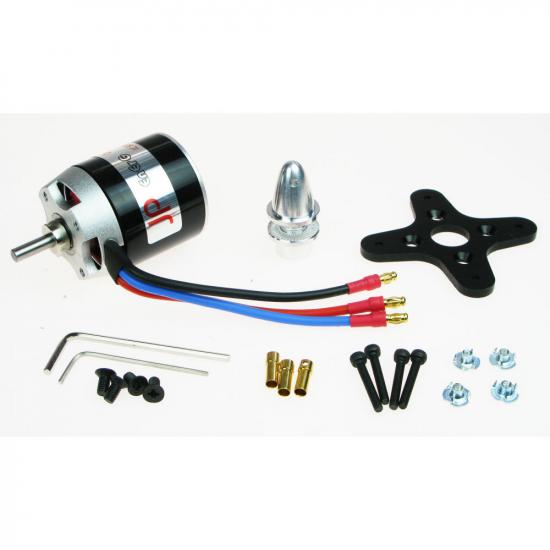

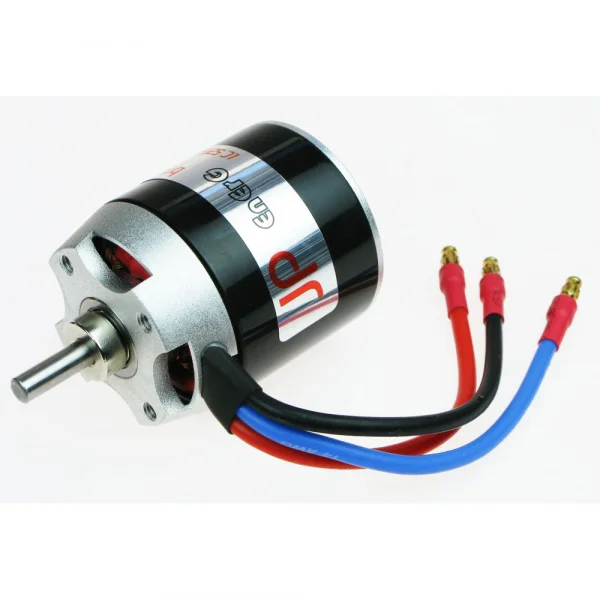

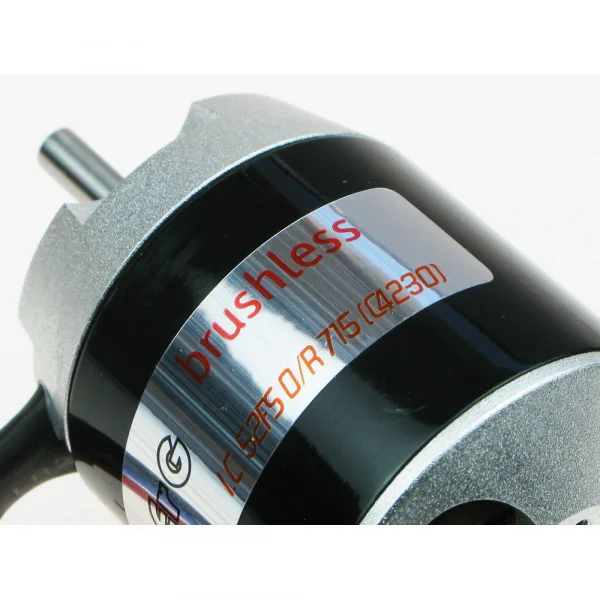

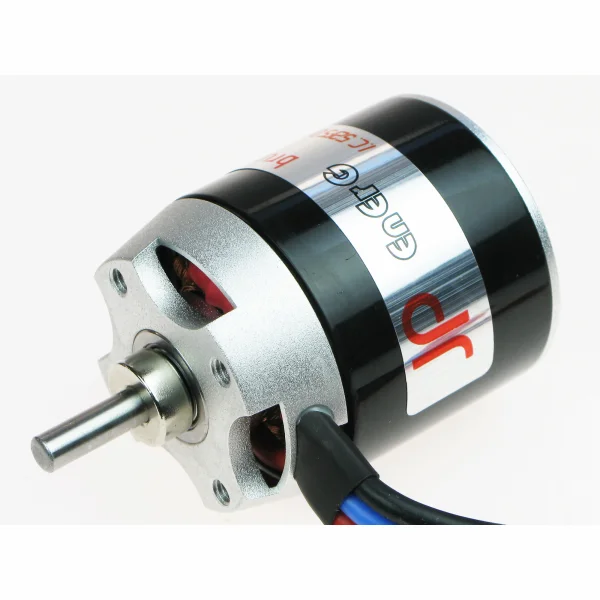

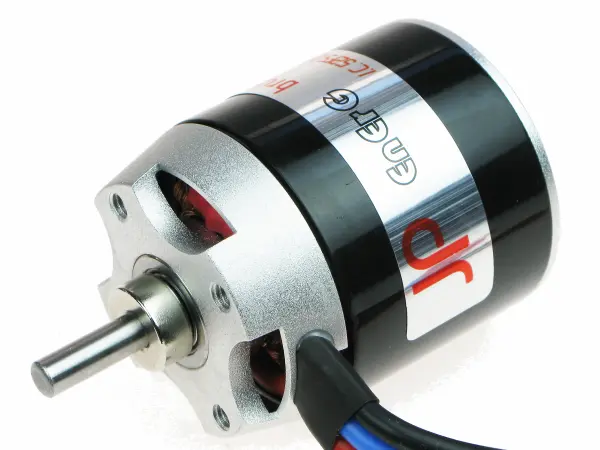

The EnErG Pro I.C.52Fs O/R 715 (C42-30) motor (part number 4445780) delivers dependable performance in a compact 42x55mm format. Supplied with gold connectors and prop adaptors, it provides clear current and thrust data across popular APC prop sizes to help with setup and tuning.

Key Features

• Motor size: 42x55mm
• Weight: 280g
• Shaft diameter: 5mm
• Working current: 40–65A; peak 80A
• Speed controller requirement: 80A
• Connectors: gold, included
• Prop adaptors: included

Example Propeller Data

• APC 13x10: 55.1A, 1945g thrust, 698W, 7500 RPM, 14.8V
• APC 15x8: 65.1A, 2870g thrust, 760W, 7000 RPM, 14.8V
• APC 13x8: 45.6A, 2135g thrust, 697W, 8200 RPM, 14.8V
• APC 12x8: 55.1A, 2165g thrust, 816W, 9800 RPM, 18.5V
• APC 12x6: 47.1A, 2495g thrust, 743W, 10400 RPM, 18.5V
• APC 11x7: 43.4A, 2075g thrust, 701W, 10700 RPM, 18.5V

This data can assist in choosing a suitable propeller and power setup for your project, using the stated 80A speed controller requirement as a guide.
