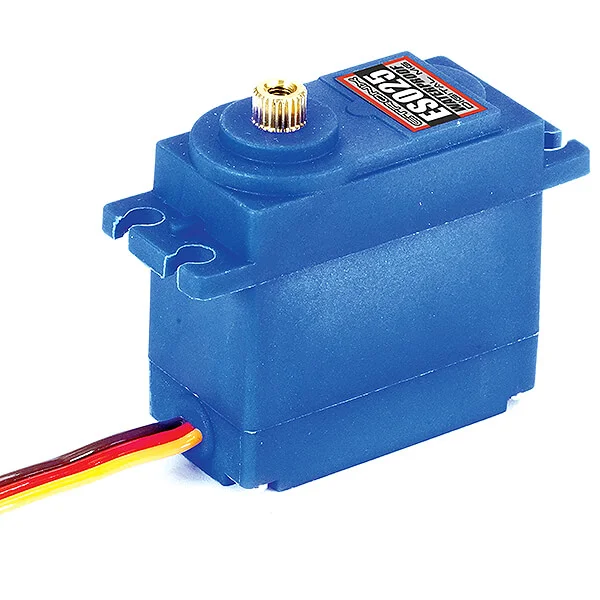

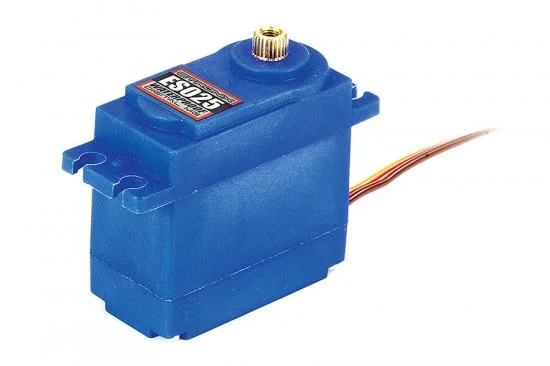

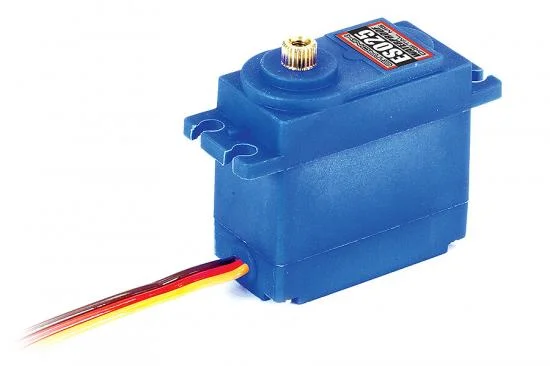

eTronix ES025 25kg Digital Waterproof Servo (ET0025)
Brand: eTronix
Part No: ET0025
In Stock: Usually ships same day
Finance options available at checkout.
Fits These Models (1)
Show all 1 models
Frequently Bought With
Other items customers often buy with the eTronix ES025 Digital Waterproof MG Servo - 25kg 0.20s
Description
The eTronix ES025 Digital Waterproof MG Servo (ET0025) is a high-voltage, standard-size unit designed for strong torque and precise control. With metal gears, dual ball bearings and a sealed case, it offers reliability in challenging conditions. Performance spans 22kg.cm at 4.8V to 30kg.cm at 8.4V, with a swift 0.20s/60° transit at 6.0V. A 25T spline ensures broad horn compatibility, while a tight 3µs dead band and 1520µs/330Hz signal deliver consistent response.
Features
- High performance digital high voltage standard servo
- Dual ball bearings
- Waterproof
Specifications
- Dead Band: 3µs
- Working Frequency: 1520µs / 330Hz
- Motor: DC motor
- Gears: Metal
- Spline Size: 25T
- Operating Speed 4.8V: 0.22 sec/60°
- Operating Speed 6.0V: 0.20 sec/60°
- Operating Speed 8.4V: 0.16 sec/60°
- Stall Torque 4.8V: 22kg.cm
- Stall Torque 6.0V: 25kg.cm
- Stall Torque 8.4V: 30kg.cm
- Dimensions: 40 x 20 x 40mm
- Weight: 64g
- Connector Wire Length: 240mm
Secured by Stripe
eTronix ES025 Digital Waterproof MG Servo - 25kg 0.20s Manuals & Guides
Specifications
- High performance digital high voltage standard servo
- Dual ball bearings
- Waterproof
- Dead Band: 3μs
- Working Frequency: 1520μs / 330hz
- Motor: DC motor
- Gears: Metal
- Spline size: 25T
- Operating Speed 4.8V: 0.22sec/60°
- Operating Speed 6.0V: 0.20sec/60°
- Operating Speed 8.4V: 0.16sec/60°
- Stall Torque 4.8V: 22kg.cm
- Stall Torque 6.0V: 25kg.cm
- Stall Torque 8.4V: 30kg.cm
- Dimensions: 40 x 20 x 40mm
- Weight: 64g
- Connector Wire Length: 240mm
Unsure which servo you need for your model?
Visit our Etronix Servo Soultion Centre and find the ideal servo for your needs.
Key Info:
- Brand: eTronix
- Part No: ET0025
- Barcode: 5056135750865
- Max Voltage: 6v (NiMh)
- Gear Material: Metal
- Fitment: Standard Part
