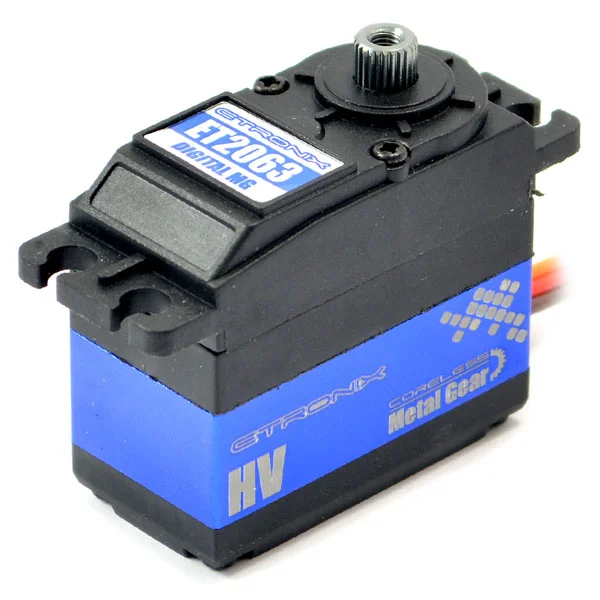

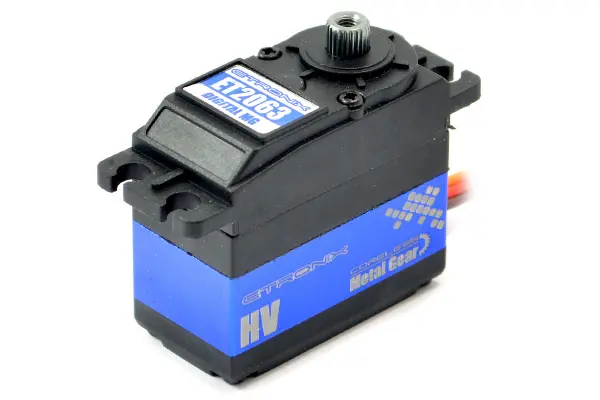

eTronix ET2063 32.3kg 0.10s HV Digital Metal Gear Servo
Brand: eTronix
Part No: ET2063
In Stock: Usually ships same day
Finance options available at checkout.
Frequently Bought With
Other items customers often buy with the eTronix Standard Size Digital Metal Gear Servo - 32.3Kg - 0.10S
Description
The eTronix ET2063 Standard Size Digital Metal Gear Servo delivers rapid response and high torque, combining 0.10s/60° speed at 8.4V with up to 32.3 kg.cm stall torque. A high-voltage, coreless digital design with dual ball bearings and a CNC aluminium middle hull provides smooth, accurate control with excellent durability. Precision gearing and a tight 1 μs dead band help ensure consistent centring and repeatable performance in a standard-size footprint.
Features
- High performance digital high voltage coreless standard servo
- High-precision aluminium gears with hard anodising
- Dual ball bearings
- CNC aluminium middle hull
Specifications
- Dead Band: 1 μs
- Working Frequency: 1520 μs / 330 Hz
- Motor: Coreless motor
- Operating Speed (6.0V): 0.12 sec/60°
- Operating Speed (8.4V): 0.10 sec/60°
- Stall Torque (6.0V): 25.2 kg.cm (239.55 oz/in)
- Stall Torque (8.4V): 32.3 kg.cm (281.89 oz/in)
- Dimensions: 40.5 x 20.5 x 36.5 mm (1.59 x 0.80 x 1.43 in)
- Weight: 59.3 g (2.09 oz)
- Connector Wire Length: JR 265 mm (10.43 in)
Secured by Stripe
eTronix Standard Size Digital Metal Gear Servo - 32.3Kg - 0.10S Manuals & Guides
Specifications
- High performance digital high voltage coreless standard servo
- High-precision aluminium gears with hard anodizing
- Dual ball bearings
- CNC aluminium middle hull
Dead Band: 1μs
Working Frequency: 1520μs / 330hz
Motor: Coreless motor
Operating Speed (6.0V): 0.12sec/60°
Operating Speed (8.4V): 0.1sec/60°
Stall Torque (6.0V): 25.2 kg.cm (239.55oz/in)
Stall Torque (8.4V): 32.3 kg.cm (281.89 oz/in)
Dimensions: 40.5X20.5X36.5mm /1.59X0.80X1.43in
Weight: 59.3g (2.09oz)
Connector Wire Length: JR 265 mm (10.43in)
Unsure which servo you need for your model?
Visit our Etronix Servo Soultion Centre and find the ideal servo for your needs.
Key Info:
- Brand: eTronix
- Part No: ET2063
- Barcode: 5056135711729
- Max Voltage: 6v (NiMh)
- Gear Material: Metal
Delivery & Returns
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Customer Reviews
Great customer service and very helpful never had any issues. Always buy from here they have all the parts you need to get going in the rc world
Brilliant servos bot this and the 30KG slightly faster one.
Have 7 of them in my models and never had one fail as of yet in about 2 years.
But I only run them on 7.4v Next to no speed and strength difference on 8.4v.
Questions & Answers
This would be a waterproof one with similar specs and price ET2072
Yes this will fit in that car for you
This one would be a good upgrade for you.
This is not classed as waterproof.
For more in depth queries, please contact us.
