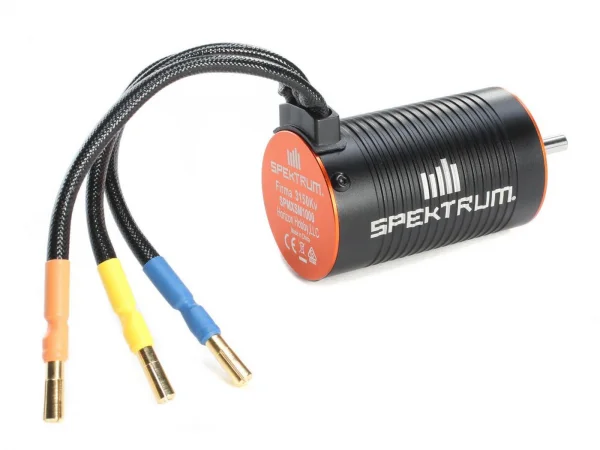

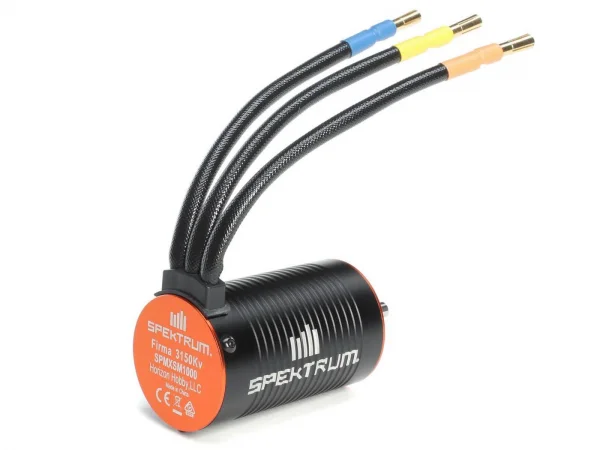

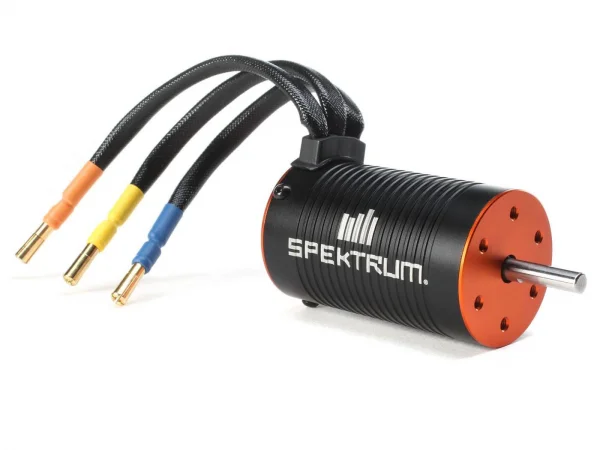

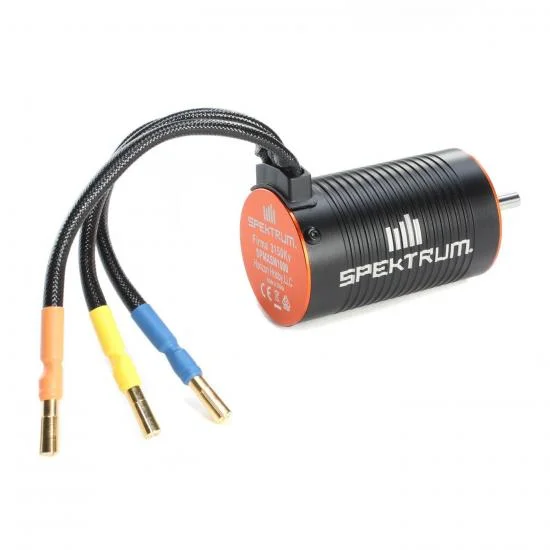

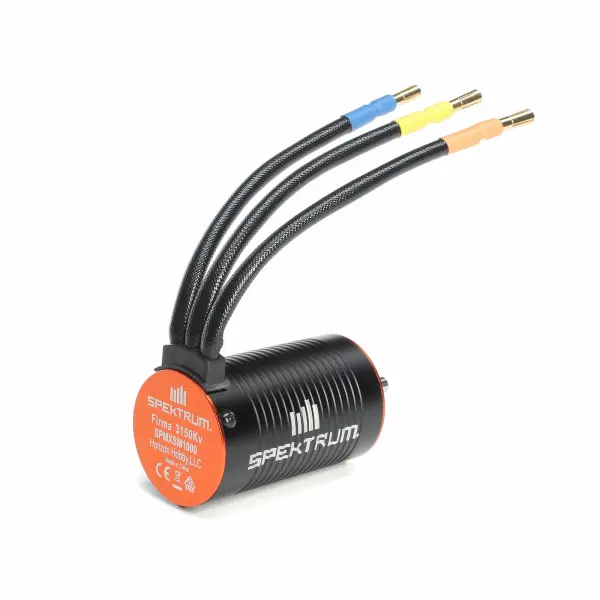

Spektrum Firma 3150Kv Brushless Motor 3660
Brand: Spektrum
Part No: SPMXSM1000
Supplier Stock: Expected August 15th
Request Stock NotificationFinance options available at checkout.
Fits These Models (17)
Arrma Felony 6S
Arrma Infraction 6S V2
Arrma Kraton 6S V6
Arrma Limitless 8S RTR
Arrma Mojave 6S V2
Arrma Notorious 6S V5
Arrma Talion 6S V6 EXB RTR
Arrma Typhon 6S V5
Axial RBX10 Ryft
Losi 8IGHT XT/XTE Race Kit
Losi 8IGHT-XTE Truggy RTR
Arrma Limitless Rolling Chassis
Axial Capra 1.9 Builders Kit
Axial SCX10 II Raw Builders Kit
Losi Tenacity DB Pro - Lucas Oil
SCX10 III Jeep JL Wrangler 4WD Kit
Tenacity DB Pro - Fox Racing
Description
The Spektrum Firma 3150Kv Brushless Motor (SPMXSM1000) is a 3660-size, sensorless unit designed as a strong choice for 1/10 scale 4WD models. It offers smooth, efficient power delivery with a low-cog 4‑pole, 8‑magnet rotor and precision bearings, and arrives preinstalled with 4mm gold-plated bullet connectors for straightforward installation. It also serves as a practical upgrade path from many 540- and 550‑size brushed motors that share the same diameter and mounting pattern, provided the vehicle accepts pinions with a 5mm bore.
Features
- Perfect upgrade for many 540/550 brushed setups of the same diameter/mounting pattern (vehicle must accept 5mm-bore pinions)
- Low-cog 4‑pole, 8‑magnet rotor with high-quality sintered construction
- CNC machined aluminium housing for strength and heat dissipation
- Insulated high-purity copper windings for efficiency
- Hardened alloy steel 5mm output shaft
- High-precision ball bearings for smooth rotation
- Preinstalled 4mm gold-plated bullet connectors
- Well matched with the Spektrum Firma 130 Smart ESC
Specifications
- Motor Type: Brushless, sensorless
- Size: 3660
- Kv: 3150Kv
- Number of Poles: 4
- Input Voltage: 6–13.2V (2–3S LiPo; 4–9 cell NiMH)
- Maximum Continuous Current: 100A
- Output Power: 1300W
- Efficiency: 90%
- Shaft Diameter: 5mm (3/16")
- Overall Diameter: 36mm (1.4")
- Overall Length: 60mm (2.4")
- Weight: 247g (8.7oz)
- Connectors: 4mm bullet
- Wire Gauge: 12 AWG
- Bearings: Precision ball bearings
What's Included
- Spektrum Firma 3660‑3150Kv Sensorless 1/10 Brushless Motor with 4mm Gold Plated Bullet Connectors
Needed to Complete
- Electronic Speed Control such as the Spektrum Firma 130 Smart ESC
Suggested Compatibility
- ASC90023
- LOS03019T1
- LOS03019T2
- LOS03027T1
- LOS03027T2
Secured by Stripe
Firma 3150Kv Brushless Motor Manuals & Guides
Specifications
- Perfect upgrade for brushed 540- and 550-size brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 5mm bore)
- High-quality 4-pole sintered rotors
- Includes 4mm gold plated bullet connectors
- Precision ball bearings and hardened steel 5mm shaft
Great choice for 1/10 Scale 4WD models. Low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 5mm output shaft, and high-precision bearings for high durability and smooth rotation. Preinstalled with 4mm gold plated bullet connectors for easy installation. Perfectly matched for the Firma 130 Smart ESC.
Needed to Complete- Electronic Speed Control such as the Firma 130 Smart ESC
- Spektrum Firma 3660-3150kv Sensorless 1/10 Brushless Motor with 4mm Gold Plated Bullet Connectors
Firma 3150Kv Brushless Motor Specfications:
- Bearings or Bushings: : Bearings
- Cells: : 2-3S LiPo, 4-9 cell NiMH
- Connector Type: : 4mm Bullet,4mm Bullet
- Efficiency: : 90%
- Input Voltage: : 6-13.2V
- Maximum Continuous Current: : 100A
- Motor Type: : Brushless
- Number of Poles: : 4
- Output: : 1300W
- Overall Diameter: : 1.4" (36mm)
- Overall Length: : 2.4" (60mm)
- RPM/Volt (Kv): : 3150Kv
- Recommended Speed Control: : Spektrum Firma 130 Smart ESC
- Shaft Diameter: : 3/16" (5mm)
- Size: : 3660
- Weight: : 8.7oz (247g)
- Wire Gauge: : 12 AWG
Key Info:
- Brand: Spektrum
- Part No: SPMXSM1000
- Barcode: 0605482428078
- Fitment: Option Part
- Fitment: Standard Part
