Hitec D845WP WV Mega Scale Torque
Brand: Hitec
Part No: 2221305
In Stock: Usually ships same day
The Hitec D845WP WV Mega Scale Torque servo (part number 2221305) sits in Hitec’s D-Series and blends industry-leading high-resolution control with ultra-response performance. Its 32-bit MCU and 12-bit ADC deliver exceptionally smooth movement and extensive programmability, while the broad 4.8–8.4V input range supports common battery chemistries without adapters or regulators. A 15-tooth HD output spline with 3mm hex screw ensures a secure interface for heavy-duty control linkages.
Designed For Demanding Use
Engineered for strength and longevity, the D845WP features durable steel gears and dual ball bearings. Waterproof construction and dust resistance rated to IP67 help protect the internals in harsh environments, and an integrated heat sink assists motor cooling during extended operation. The result is a robust servo that combines durability, quality and monster performance.
Advanced Control Electronics
A programmable high-response digital amplifier with MOSFET drive underpins the D845WP’s precise behaviour. The 4096-step resolution, teamed with the 32-bit MCU and 12-bit ADC, provides refined, repeatable movement and rapid response. The wide operating voltage range further enhances flexibility across setups that demand both torque and precision.
Key Features
- 32-bit MCU and 12-bit ADC for ultra-response control and smoother movement.
- Wide 4.8–8.4V operating range for use with common battery chemistries without regulators.
- Programmable high-response digital amplifier with MOSFET drive.
- Durable steel gears with dual ball bearings.
- Waterproof construction with IP67 dust resistance.
- Integrated heat sink for motor cooling.
- Hitec 15-tooth HD output spline with 3mm hex screw.
- Resolution: 4096.
- Speed at 4.8V (sec/60°): 0.26; at 8.4V: 0.17.
- Torque at 4.8V (kg.cm): 32.5; at 8.4V: 50.0.
- Servo size: Giant.
Technical Specs
- Weight: 227g (8.01oz).
- Product Length: 66mm (2.60in).
- Product Width: 32mm (1.26in).
- Product Height: 62mm (2.44in).
- Shipping Weight: 0.27kg (0.59lbs).
Secured by Stripe
Part of Hitec's D-Series servo range, the steel gear D-845WP features industry leading high-resolution, state-of-the-art ultra-response technology, a 32-bit MCU and a 12-bit ADC for unprecedented programmability and flexibility. The result is a significantly smoother movement and a 4.8 - 8.4 volt range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec's 15 tooth HD output spline with 3mm hex screw, each D-Series servo offers true value for money with the promise of durability, quality and a monster performance.
Hitec D845WP WV Mega Scale Torque Key Features:
- Part of Hitec's D-Series servo range, the steel gear D-845WP features industry leading high-resolution, state-of-the-art ultra-response technology, a 32-bit MCU and a 12-bit ADC for unprecedented programmability and flexibility. The result is a significantly smoother movement and a 4.8 - 8.4 volt range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec's 15 tooth HD output spline with 3mm hex screw, each D-Series servo offers true value for money with the promise of durability, quality and a monster performance.
- Part of Hitec's D-Series servo range, the steel gear D-845WP features industry leading high-resolution, state-of-the-art ultra-response technology, a 32-bit MCU and a 12-bit ADC for unprecedented programmability and flexibility. The result is a significantly smoother movement and a 4.8 8.4 volt range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec's 15 tooth HD output spline with 3mm hex screw, each D-Series servo offers true value for money with the promise of durability, quality and a monster performance.
- Programmable high response digital amplifier with MOSFET drive.
- Durable steel gears with dual ball bearings.
- Dust resistance (IP67).
- Heat sink for motor.
- Waterproof.
- Speed at 4.8V (sec/60 ): 0.26.
- Speed at 8.4V (sec/60 ): 0.17.
- Torque at 4.8V (kg.cm): 32.5.
- Torque at 8.4V (kg.cm): 50.0.
- Resolution: 4096.

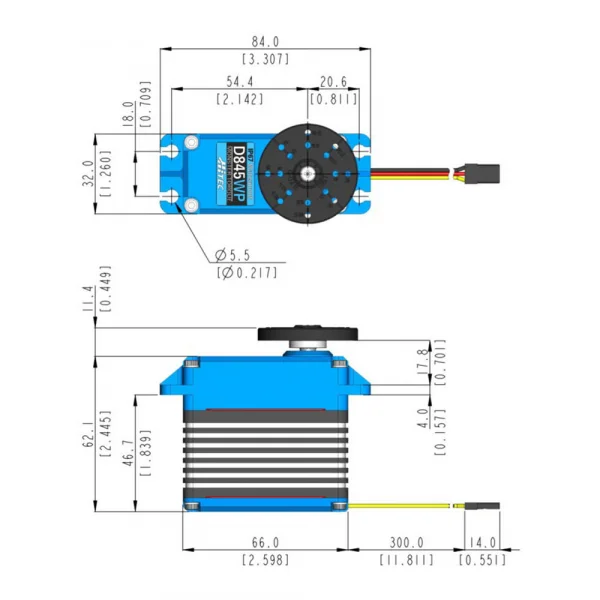

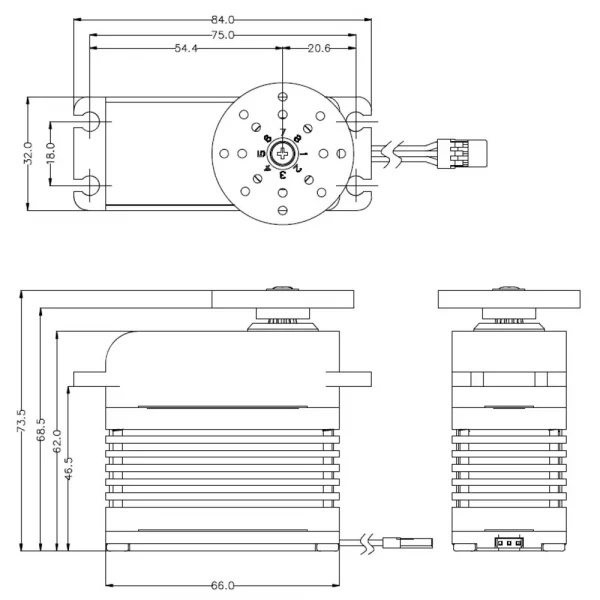

- Size (LxWxH): 84.0 x 32.0 x 73.5.
Hitec D845WP WV Mega Scale Torque Tech Specs:
- Weight: 227g / 8.01oz
- Shipping Weight: 0.27kg / 0.59lbs
- Product Height: 62mm / 2.44in
- Product Width: 32mm / 1.26in
- Product Length: 66mm / 2.60in
- Application: Array
- Servo Size: Giant
Key Info:
- Brand: Hitec
- Part No: 2221305
- Barcode: 669962368452
- Max Voltage: 7.4v
- Gear Material: Metal
Free Shipping
This item is over £100, so qualifies for free standard UK shipping!
Express Shipping
Upgrade to next day from £3
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
Operating Voltage Range (Volts DC)4.8V ~ 7.4V
Speed (Second @ 60°)0.26 ~ 0.17
Maximum Torque Range oz. / in.452 ~ 695
Maximum Torque Range kg. / cm.32.5 ~ 50.0
Yes that looks like it should fit
The stock LOSB0884 servo shows a measurement of 66 x 57 x 30mm. This servo measures 66 x 62 x 32mm, so seems very close.
Yes, we have seen customers running these in the HPI Baja 5B.
The 5765 is lower spec and non waterproof.
