Hitec HLS12-100100-6V 100mm Stroke 100:1 Linear Servo 4.2kg/3.2mm/s 4.0V - 8.4V

With 100mm of travel and a 100:1 gear ratio, the HLS12-100100 is ideal for short stroke applications requiring a faster transit speed with more power.
Controlled using a traditional PWM servo signal, Hitec linear actuators provide optimised motion control for precise and powerful positioning. Whether your application demands a low-profile form factor, or extended linear throws, we have an actuator to suit your needs. Our linear actuators are popular for a myriad of uses including robotics and animatronics, as well as industrial mechanical applications. Programmable stroke and speed settings, power-off position stability, and a variety of mounting options, provide additional functionality and flexibility. Additionally, Hitec linear actuators provide full excursion using a 1050 - 1950µs input range. This feature allows fully compatible use with all radios, by eliminating the requirement for programming extended rates to achieve full motion.

Hitec HLS12-100100-6V 100mm Stroke 100:1 Linear Servo 4.2kg/3.2mm/s 4.0V - 8.4V Key Features:

• Command Protocol: PWM
• Lead Screw: 5mm
• Motor Type: Cored Metal Brush
• Operating Voltage (Volts DC): 4.0V ~ 8.4V
• Testing Voltage: 6.0V
• Gear Ratio: 100:1
• No Load Speed: 13.00mm/s
• No Load Current: 100mA
• Maximum Efficiency Point: Load (kg / N): 1.7 / 17 - Speed (mm/s): 10.3 - Current (mA): 200
• Pear Power Point: Load (kg / N): 3.1 / 31 - Speed (mm/s): 7.0 - Current (mA): 300
• Max Force (Lifted): Load (kg /N): 4.2 / 42 - Speed (mm/s): 3.2 - Current (mA): 400
• Stall Force: 5.0kgf (49.03N)
• Stall Current: 500mA
• Max Static Force: 20.39kgf (200N) (above)
• Stroke SPEC: 100mm
• Repeatability: ±0.5mm
• Max Side Load (Extended): 1.53kgf (15N)

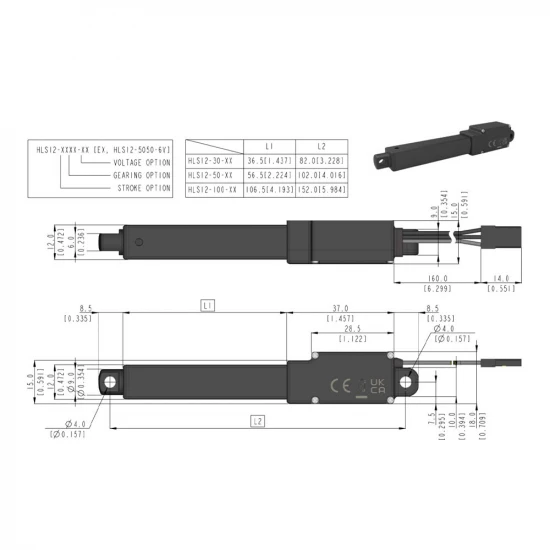

• Outline Dimensions: 152.0 x 15.0 x 18.0mm (5.98 x 0.59 x 0.71 in.)
• Weight: 56g (1.975oz)
• Connector Wire Length: 160mm (6.29 in.)
• Connector Wire Gauge: 24AWG
• Bearing Type: Flange bearing
• Case Material: Engineering Plastic & Aluminium Pipe
• Gear Material: 4 Metal Gears
• IP Rating: IP4X
• Servo Amplifier Type: 32bit programmable Digital

Hitec HLS12-100100-6V 100mm Stroke 100:1 Linear Servo 4.2kg/3.2mm/s 4.0V - 8.4V Tech Specs:

• Weight: 56g / 1.97oz
• Shipping Weight: 0.12kg / 0.27lbs
• Product Height: 18mm / 0.71in
• Product Width: 15mm / 0.59in
• Product Length: 152mm / 4.02in

• Application: Industrial
• Servo Size: Linear
• Age Recommendation: 14+
• Colour: Black
• Material: Array

• Brand: Hitec
• Part No: 2212201
• Barcode: 0669962410182
