Hitec HLS12-100210-6V 100mm Stroke 210:1 Linear Servo 8kg/2.3mm/s 4.0V - 8.4V
Brand: Hitec
Part No: 2212204
Shadow Stock: Usually ships next day

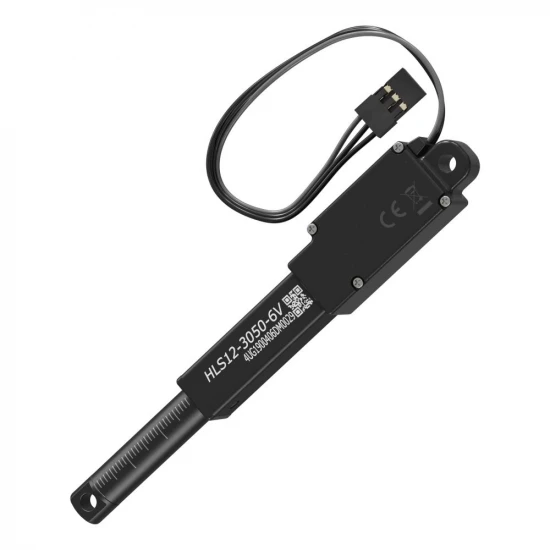

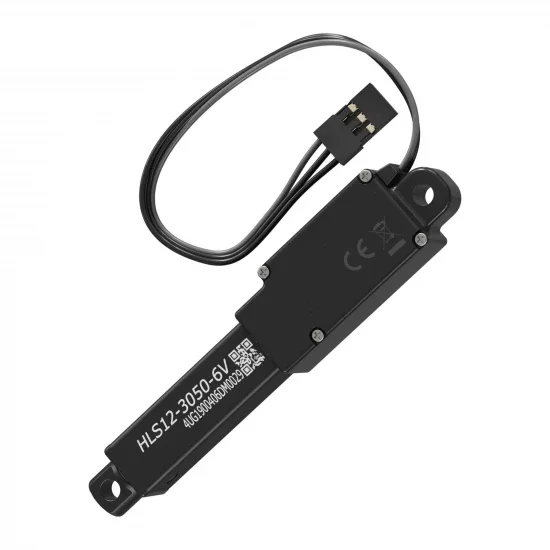

The Hitec HLS12-100210-6V linear servo delivers precise, programmable linear motion with a 100mm stroke and a robust 210:1 gear ratio. Controlled via a traditional PWM signal, it combines accurate positioning with compact dimensions, making it well suited to robotics, animatronics and industrial mechanical applications. A 32-bit programmable digital amplifier, power-off position stability and adjustable stroke and speed settings add flexibility for demanding projects.
Key Features
- PWM command protocol with full excursion on a 1050–1950µs input range
- 100mm stroke with programmable stroke and speed settings
- 210:1 gearing for high force in short-stroke applications
- Up to 8.0kg (79N) lifted at approximately 2.3mm/s
- Operating voltage: 4.0V to 8.4V (tested at 6.0V)
- 32-bit programmable digital amplifier with power-off position stability
- Cored metal brush motor, metal gears and flange bearing
- Case material: engineering plastic with aluminium pipe
- IP4X rating
- Compact and lightweight: 56g
- Variety of mounting options for flexible installation
Performance & Electrical Specifications
- No-load speed: 6.1mm/s
- No-load current: 100mA
- Maximum efficiency point: 3.6kg / 35N at 4.5mm/s, approx. 200mA
- Max force (lifted): 8.0kg / 79N at 2.3mm/s, approx. 400mA
- Stall force: 5.0kgf (49.03N); stall current: 500mA
- Max static force: 20.39kgf (200N)
- Max side load (extended): 1.53kgf (15N)
- Lead screw: 5mm
- Connector: 160mm wire, 24AWG
- Repeatability: ±0.5mm
Dimensions & Weight

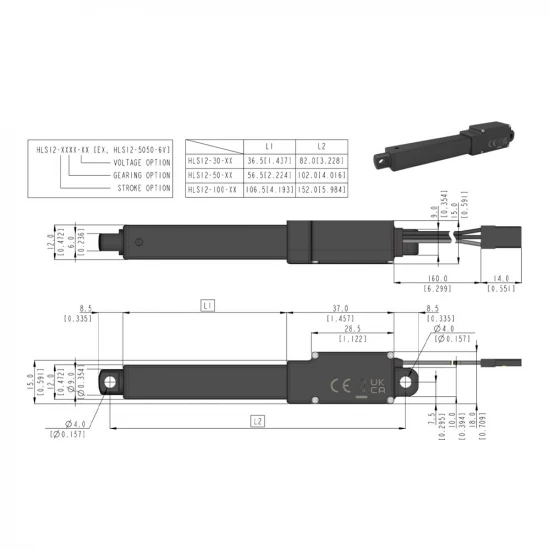

- Outline dimensions: 152.0 × 15.0 × 18.0mm
- Stroke: 100mm
- Weight: 56g
Control Compatibility
- Suggested compatibility: standard RC radios and controllers outputting PWM within 1050–1950µs, helping achieve full motion without extended rates.
Suggested Applications
- Robotics mechanisms and end effectors
- Animatronics requiring precise linear motion
- Industrial mechanical actuation where compact, reliable linear travel is needed
Secured by Stripe
With 100mm of travel and a 210:1 gear ratio, the HLS12-100210 is ideal for short stroke applications requiring higher power.
Controlled using a traditional PWM servo signal, Hitec linear actuators provide optimised motion control for precise and powerful positioning. Whether your application demands a low-profile form factor, or extended linear throws, we have an actuator to suit your needs. Our linear actuators are popular for a myriad of uses including robotics and animatronics, as well as industrial mechanical applications. Programmable stroke and speed settings, power-off position stability, and a variety of mounting options, provide additional functionality and flexibility. Additionally, Hitec linear actuators provide full excursion using a 1050 - 1950µs input range. This feature allows fully compatible use with all radios, by eliminating the requirement for programming extended rates to achieve full motion.
Hitec HLS12-100210-6V 100mm Stroke 210:1 Linear Servo 8kg/2.3mm/s 4.0V - 8.4V Key Features:
- Command Protocol: PWM
- Lead Screw: 5mm
- Motor Type: Cored Metal Brush
- Operating Voltage (Volts DC): 4.0V ~ 8.4V
- Testing Voltage: 6.0V
- Gear Ratio: 210:1
- No Load Speed: 6.1mm/s
- No Load Current: 100mA
- Maximum Efficiency Point: Load (kg / N): 3.6 / 35 - Speed (mm/s): 4.5 - Current (mA): 200
- Pear Power Point: Load (kg / N): 6.2 / 61 - Speed (mm/s): 3.2 - Current (mA):310
- Max Force (Lifted): Load (kg /N): 8.0 / 79 - Speed (mm/s): 2.3 - Current (mA): 400
- Stall Force: 5.0kgf (49.03N)
- Stall Current: 500mA
- Max Static Force: 20.39kgf (200N) (above)
- Stroke SPEC: 100mm
- Repeatability: ±0.5mm
- Max Side Load (Extended): 1.53kgf (15N)
- Outline Dimensions: 152.0 x 15.0 x 18.0mm (5.98 x 0.59 x 0.71 in.)
- Weight: 56g (1.975oz)
- Connector Wire Length: 160mm (6.29 in.)
- Connector Wire Gauge: 24AWG
- Bearing Type: Flange bearing
- Case Material: Engineering Plastic & Aluminium Pipe
- Gear Material: 4 Metal Gears
- IP Rating: IP4X
- Servo Amplifier Type: 32bit programmable Digital
Hitec HLS12-100210-6V 100mm Stroke 210:1 Linear Servo 8kg/2.3mm/s 4.0V - 8.4V Tech Specs:
- Weight: 56g / 1.97oz
- Shipping Weight: 0.12kg / 0.26lbs
- Product Height: 18mm / 0.71in
- Product Width: 15mm / 0.59in
- Product Length: 152mm / 3.23in
- Application: Industrial
- Servo Size: Linear
- Age Recommendation: 14+
- Colour: Black
- Material: Array
Key Info:
- Brand: Hitec
- Part No: 2212204
- Barcode: 0669962410212
