Description

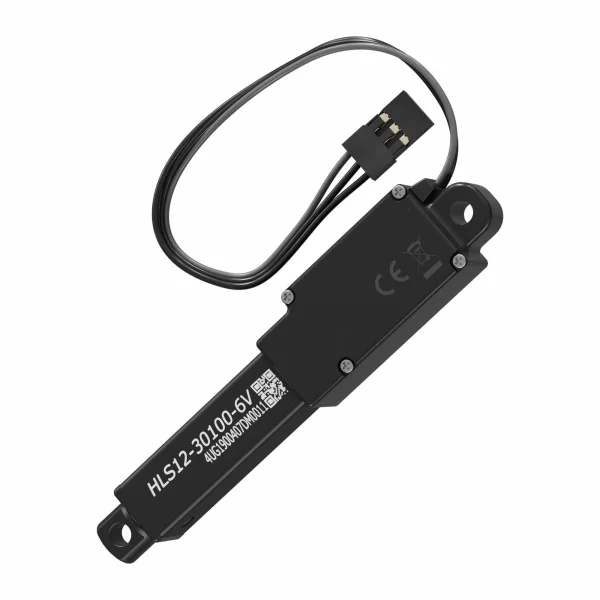

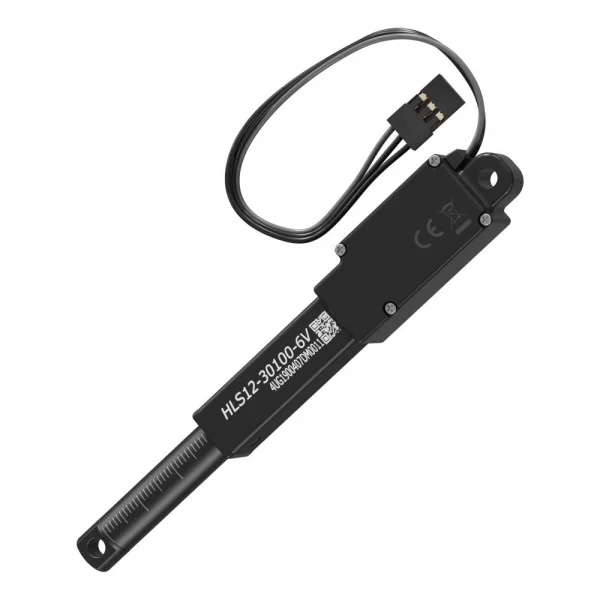

The Hitec HLS12-30100-6V linear servo delivers precise, powerful motion control in a compact form. With a 30mm stroke and 100:1 gear ratio, this actuator balances speed and force for short-stroke tasks. Controlled via a standard PWM signal, it features a programmable 32-bit digital amplifier, power-off position stability and multiple mounting options. It operates across 4.0–8.4V and provides full excursion on a 1050–1950µs input range, aiding suggested compatibility with standard RC radios without extended endpoints. Popular applications include robotics, animatronics and industrial mechanisms. Part number 2212199 at Wheelspin Models.
Key Features
- Command protocol: PWM
- 30mm stroke with 100:1 gear ratio
- Lead screw: 5mm
- Motor type: Cored metal brush
- Operating voltage: 4.0–8.4V (testing voltage 6.0V)
- No-load speed: 13.0mm/s; no-load current: 100mA
- Maximum efficiency point: 1.7kg (17N) at 13.0mm/s; 200mA
- Peak power point: 3.1kg (31N) at 7.0mm/s; 300mA
- Max force (lifted): 4.2kg (42N) at 3.2mm/s; 400mA
- Stall force: 5.0kgf (49.03N); stall current: 500mA
- Max static force: 20.39kgf (200N)
- Repeatability: ±0.2mm
- Max side load (extended): 4.08kgf (40N)
- Outline dimensions: 82.0 × 15.0 × 18.0mm
- Connector: 160mm lead, 24AWG
- Bearing: Flange bearing; gears: 4 metal gears
- Case: Engineering plastic with aluminium pipe
- IP rating: IP4X
- Servo amplifier: 32-bit programmable digital
Tech Specs
- Weight: 40g (1.41oz)
- Shipping weight: 0.10kg (0.22lbs)
- Product length: 102mm (4.02in)
- Product width: 15mm (0.59in)
- Product height: 18mm (0.71in)
- Servo size: 30mm travel
- Colour: Black
- Material: Metal + plastic
- Application: Industrial
Suggested Compatibility & Uses
- Robotics and automation projects requiring compact linear motion
- Animatronics and motion props needing repeatable positioning
- General industrial mechanisms within the stated electrical and load limits
Secured by Stripe
Specifications
With 30mm of travel and a 100:1 gear ratio, the HLS12-30100 is ideal for short stroke applications requiring a faster transit speed with more power.
Controlled using a traditional PWM servo signal, Hitec linear actuators provide optimised motion control for precise and powerful positioning. Whether your application demands a low-profile form factor, or extended linear throws, we have an actuator to suit your needs. Our linear actuators are popular for a myriad of uses including robotics and animatronics, as well as industrial mechanical applications. Programmable stroke and speed settings, power-off position stability, and a variety of mounting options, provide additional functionality and flexibility. Additionally, Hitec linear actuators provide full excursion using a 1050 - 1950µs input range. This feature allows fully compatible use with all radios, by eliminating the requirement for programming extended rates to achieve full motion.
Hitec HLS12-30100-6V 30mm Stroke 100:1 Linear Servo 4.2kg/3.2mm/s 4.0V - 8.4V Key Features:
- Command Protocol: PWM
- Lead Screw: 5mm
- Motor Type: Cored Metal Brush
- Operating Voltage (Volts DC): 4.0V ~ 8.4V
- Testing Voltage: 6.0V
- Gear Ratio: 100:1
- No Load Speed: 13.0mm/s
- No Load Current: 100mA
- Maximum Efficiency Point: Load (kg / N): 1.7 / 17 - Speed (mm/s): 13.0 - Current (mA): 200
- Pear Power Point: Load (kg / N): 3.1 / 31 - Speed (mm/s): 7.0 - Current (mA): 300
- Max Force (Lifted): Load (kg /N): 4.2 / 42 - Speed (mm/s): 3.2 - Current (mA): 400
- Stall Force: 5.0kgf (49.03N)
- Stall Current: 500mA
- Max Static Force: 20.39kgf (200N) (above)
- Stroke SPEC: 30mm
- Repeatability: ±0.2mm
- Max Side Load (Extended): 4.08kgf (40N)

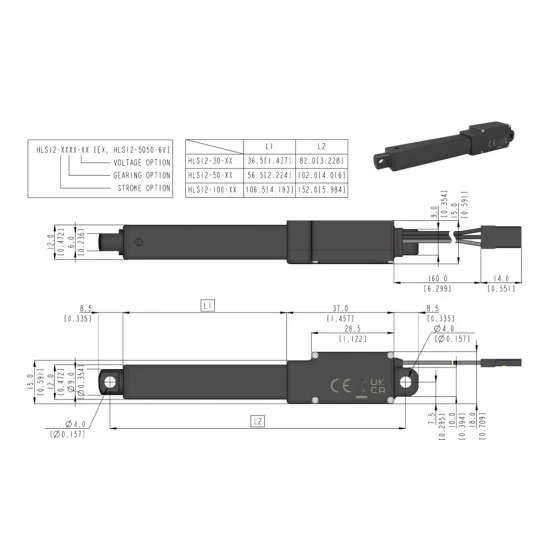

- Outline Dimensions: 82.0 x 15.0 x 18.0mm (3.23 x 0.59 x 0.71 in.)
- Weight: 34g (1.199oz)
- Connector Wire Length: 160mm (6.29 in.)
- Connector Wire Gauge: 24AWG
- Bearing Type: Flange bearing
- Case Material: Engineering Plastic & Aluminium Pipe
- Gear Material: 4 Metal Gears
- IP Rating: IP4X
- Servo Amplifier Type: 32bit programmable Digital
Hitec HLS12-30100-6V 30mm Stroke 100:1 Linear Servo 4.2kg/3.2mm/s 4.0V - 8.4V Tech Specs:
- Weight: 34g / 1.19oz
- Shipping Weight: 0.10kg / 0.22lbs
- Product Height: 18mm / 0.71in
- Product Width: 15mm / 0.59in
- Product Length: 82mm / 4.02in
- Application: Industrial
- Servo Size: Linear
- Age Recommendation: 14+
- Colour: Black
- Material: Array
Key Info:
- Brand: Hitec
- Part No: 2212199
- Barcode: 0669962410168
