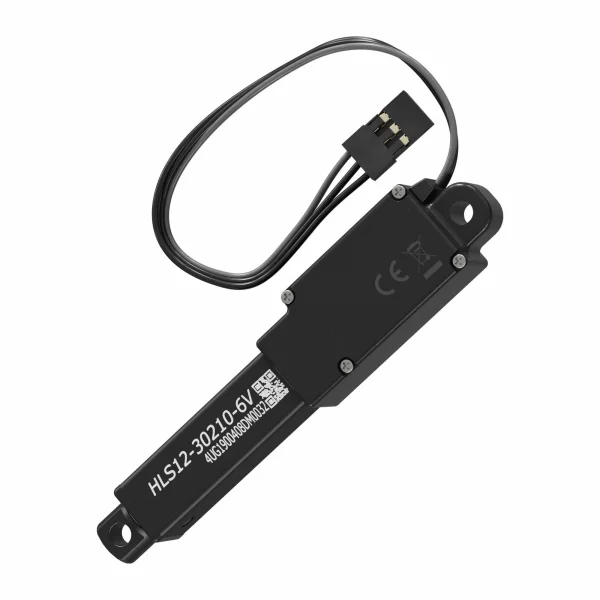

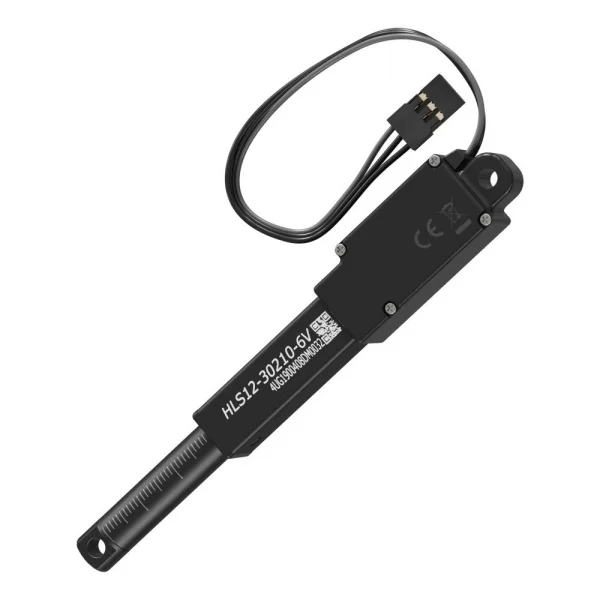

Hitec HLS12-30210-6V 30mm Stroke 210:1 Linear Servo 8kg/2.3mm/s 4.0V - 8.4V
Brand: Hitec
Part No: 2212202
Shadow Stock: Usually ships next day
The Hitec HLS12-30210-6V is a compact, high-precision linear servo actuator designed for short-stroke applications that demand power and control. With 30mm of travel and a 210:1 gear ratio, it delivers smooth, accurate motion under a standard PWM command signal (1050–1950 µs for full excursion). Operating from 4.0V to 8.4V, this 32-bit programmable digital unit offers configurable stroke and speed, plus power-off position stability and versatile mounting options. Hitec part number 2212202.
Key Features
- 30mm stroke with programmable stroke and speed settings
- Standard PWM control; full travel on 1050–1950 µs input range
- High-torque 210:1 gear train with 4 metal gears
- 32-bit programmable digital amplifier for refined control
- Operates from 4.0V to 8.4V DC
- No-load speed: 13.0 mm/s; repeatability: ±0.2 mm
- Power-off position stability and multiple mounting options
- Cored metal brush motor, flange bearing, IP4X rating
Technical Specifications
- Lead screw: 5mm
- No-load current: 100 mA
- Max efficiency point: 1.7 kg load at 13.0 mm/s (approx. 200 mA)
- Max force (lifted): 4.2 kg at 2.3 mm/s (approx. 400 mA)
- Stall force: 5.0 kgf (49.03 N); stall current: 500 mA
- Max static force: 20.39 kgf (200 N)
- Max side load (extended): 4.08 kgf (40 N)
- Dimensions: 82.0 × 15.0 × 18.0 mm
- Weight: 34 g
- Connector lead: 160 mm, 24 AWG
- Case: Engineering plastic & aluminium pipe
- Colour: Black
Applications
- Robotics and animatronics
- Industrial mechanical actuation
- Projects needing compact, short-stroke linear motion
Secured by Stripe
With 30mm of travel and a 210:1 gear ratio, the HLS12-30210 is ideal for short stroke applications requiring higher power. Controlled using a traditional PWM servo signal, Hitec linear actuators provide optimised motion control for precise and powerful positioning. Whether your application demands a low-profile form factor, or extended linear throws, we have an actuator to suit your needs. Our linear actuators are popular for a myriad of uses including robotics and animatronics, as well as industrial mechanical applications. Programmable stroke and speed settings, power-off position stability, and a variety of mounting options, provide additional functionality and flexibility. Additionally, Hitec linear actuators provide full excursion using a 1050 - 1950µs input range. This feature allows fully compatible use with all radios, by eliminating the requirement for programming extended rates to achieve full motion.
Hitec HLS12-30210-6V 30mm Stroke 210:1 Linear Servo 8kg/2.3mm/s 4.0V - 8.4V Key Features:
- Command Protocol: PWM
- Lead Screw: 5mm
- Motor Type: Cored Metal Brush
- Operating Voltage (Volts DC): 4.0V ~ 8.4V
- Testing Voltage: 6.0V
- Gear Ratio: 210:1
- No Load Speed: 13.0mm/s
- No Load Current: 100mA
- Maximum Efficiency Point: Load (kg / N): 1.7 / 17 - Speed (mm/s): 13.0 - Current (mA): 200
- Pear Power Point: Load (kg / N): 3.1 / 31 - Speed (mm/s): 7.0 - Current (mA): 300
- Max Force (Lifted): Load (kg /N): 4.2 / 42 - Speed (mm/s): 2.3 - Current (mA): 400
- Stall Force: 5.0kgf (49.03N)
- Stall Current: 500mA
- Max Static Force: 20.39kgf (200N) (above)
- Stroke SPEC: 30mm
- Repeatability: ±0.2mm
- Max Side Load (Extended): 4.08kgf (40N)

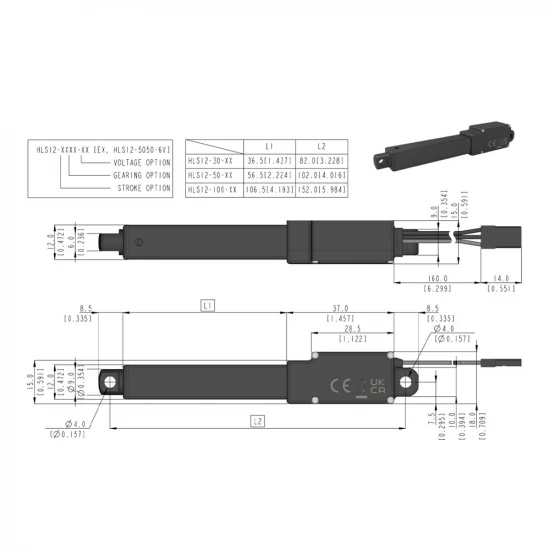

- Outline Dimensions: 82.0 x 15.0 x 18.0mm (3.23 x 0.59 x 0.71 in.)
- Weight: 34g (1.199oz)
- Connector Wire Length: 160mm (6.29 in.)
- Connector Wire Gauge: 24AWG
- Bearing Type: Flange bearing
- Case Material: Engineering Plastic & Aluminium Pipe
- Gear Material: 4 Metal Gears
- IP Rating: IP4X
- Servo Amplifier Type: 32bit programmable Digital
Hitec HLS12-30210-6V 30mm Stroke 210:1 Linear Servo 8kg/2.3mm/s 4.0V - 8.4V Tech Specs:
- Weight: 34g / 1.19oz
- Shipping Weight: 0.10kg / 0.22lbs
- Product Height: 18mm / 0.71in
- Product Width: 15mm / 0.59in
- Product Length: 82mm / 3.23in
- Application: Industrial
- Servo Size: Linear
- Age Recommendation: 14+
- Colour: Black
- Material: Array
Key Info:
- Brand: Hitec
- Part No: 2212202
- Barcode: 0669962410199
