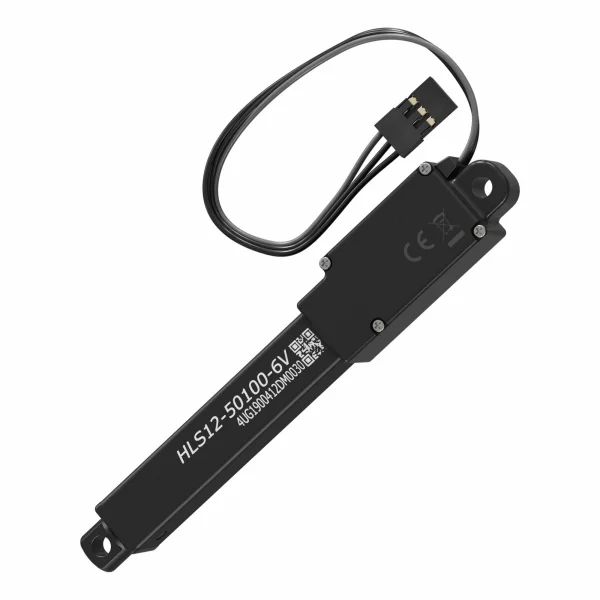

The Hitec HLS12-50100-6V is a compact linear actuator designed for precise, powerful positioning in medium-stroke applications. Delivering a 50mm stroke with a 100:1 gear ratio, it combines fast transit speeds with strong pushing capability. Controlled via a standard PWM servo signal and offering a full 1050–1950µs input range, this actuator integrates easily with typical radio systems without extended travel programming. Part number 2212200.
Engineered for reliability, it features a 32-bit programmable digital amplifier, programmable stroke and speed settings, and power-off position stability. A flange bearing, metal gear train and an engineering plastic/aluminium case contribute to smooth motion and durability. Its versatility makes it well suited to robotics, animatronics and industrial mechanical tasks where repeatable motion is essential.
Key Features
- Command protocol: PWM with full excursion on 1050–1950µs input
- Lead screw: 5mm
- Motor type: Cored metal brush
- Operating voltage: 4.0V – 8.4V (tested at 6.0V)
- Gear ratio: 100:1 with 4 metal gears
- No-load speed: 13.0mm/s; no-load current: 100mA
- Maximum efficiency point: 1.7kg / 17N at 13.0mm/s, 200mA
- Pear Power Point: 3.1kg / 31N at 7.0mm/s, 300mA
- Max force (lifted): 4.2kg / 42N at 3.2mm/s, 400mA
- Stall force: 5.0kgf (49.03N); stall current: 500mA
- Max static force: 20.39kgf (200N)
- Stroke: 50mm; repeatability: ±0.3mm
- Max side load (extended): 3.06kgf (30N)
- Connector: 160mm, 24AWG lead
- Bearing: Flange bearing
- Case: Engineering plastic & aluminium pipe
- IP rating: IP4X
- Servo amplifier: 32-bit programmable digital
Tech Specs
- Weight: 56g (1.97oz)
- Dimensions: Length 152mm (5.98in), Width 15mm (0.59in), Height 18mm (0.71in)
- Shipping weight: 0.11kg (0.23lbs)
- Servo size: 50mm travel
- Colour: Black
- Material: Metal + Plastic
- Application: Industrial
Applications
- Robotics mechanisms requiring precise, repeatable linear motion
- Animatronics where compact, PWM-controlled linear actuation is preferred
- Industrial mechanical positioning and light-duty automation
The Hitec HLS12-50100-6V blends compact form with robust performance, making it a versatile choice when you need dependable, programmable linear actuation on 4.0–8.4V systems.
Secured by Stripe
Specifications
With 50mm of travel and a 100:1 gear ratio, the HLS12-50100 is ideal for medium stroke applications requiring a faster transit speed with more power.
Controlled using a traditional PWM servo signal, Hitec linear actuators provide optimised motion control for precise and powerful positioning. Whether your application demands a low-profile form factor, or extended linear throws, we have an actuator to suit your needs. Our linear actuators are popular for a myriad of uses including robotics and animatronics, as well as industrial mechanical applications. Programmable stroke and speed settings, power-off position stability, and a variety of mounting options, provide additional functionality and flexibility. Additionally, Hitec linear actuators provide full excursion using a 1050 - 1950µs input range. This feature allows fully compatible use with all radios, by eliminating the requirement for programming extended rates to achieve full motion.
Hitec HLS12-50100-6V 50mm Stroke 100:1 Linear Servo 4.2kg/3.2mm/s 4.0V - 8.4V Key Features:
- Command Protocol: PWM
- Lead Screw: 5mm
- Motor Type: Cored Metal Brush
- Operating Voltage (Volts DC): 4.0V ~ 8.4V
- Testing Voltage: 6.0V
- Gear Ratio: 100:1
- No Load Speed: 13.00mm/s
- No Load Current: 100mA
- Maximum Efficiency Point: Load (kg / N): 1.7 / 17 - Speed (mm/s): 13.0 - Current (mA): 200
- Pear Power Point: Load (kg / N): 3.1 / 31 - Speed (mm/s): 7.0 - Current (mA): 300
- Max Force (Lifted): Load (kg /N): 4.2 / 42 - Speed (mm/s): 3.2 - Current (mA): 400
- Stall Force: 5.0kgf (49.03N)
- Stall Current: 500mA
- Max Static Force: 20.39kgf (200N) (above)
- Stroke SPEC: 50mm
- Repeatability: ±0.3mm
- Max Side Load (Extended): 3.06kgf (30N)

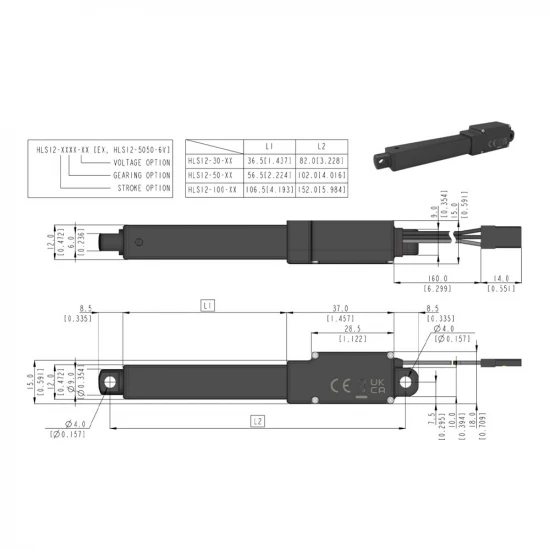

- Outline Dimensions: 102.0 x 15.0 x 18.0mm (4.02 x 0.59 x 0.71 in.)
- Weight: 40g (1.41 oz)
- Connector Wire Length: 160mm (6.29 in.)
- Connector Wire Gauge: 24AWG
- Bearing Type: Flange bearing
- Case Material: Engineering Plastic & Aluminium Pipe
- Gear Material: 4 Metal Gears
- IP Rating: IP4X
- Servo Amplifier Type: 32bit programmable Digital
Hitec HLS12-50100-6V 50mm Stroke 100:1 Linear Servo 4.2kg/3.2mm/s 4.0V - 8.4V Tech Specs:
- Weight: 40g / 1.41oz
- Shipping Weight: 0.11kg / 0.23lbs
- Product Height: 18mm / 0.71in
- Product Width: 15mm / 0.59in
- Product Length: 102mm / 5.98in
- Application: Industrial
- Servo Size: Linear
- Age Recommendation: 14+
- Colour: Black
- Material: Array
Key Info:
- Brand: Hitec
- Part No: 2212200
- Barcode: 0669962410175
