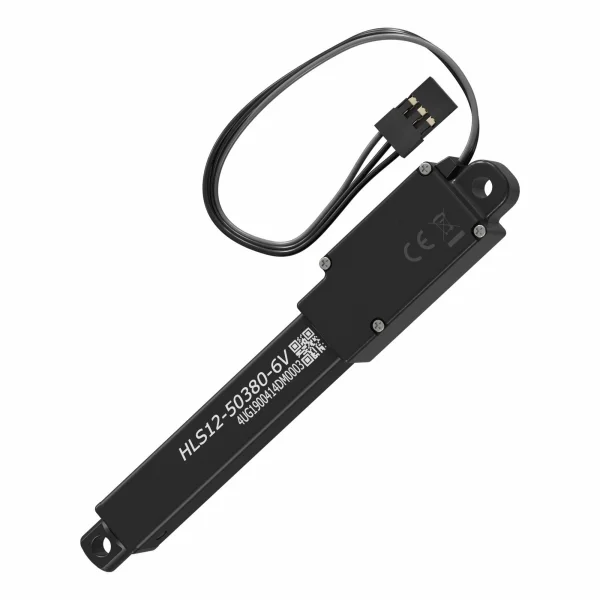

Hitec HLS12-50380-6V 50mm Stroke 380:1 Linear Servo 12kg/1.2mm/s 4.0V - 8.4V
Brand: Hitec
Part No: 2212206
Shadow Stock: Usually ships next day
The Hitec HLS12-50380-6V linear actuator delivers precise 50mm travel driven by a robust 380:1 gear train, making it ideal for medium-stroke applications that demand maximum power. Controlled via a standard PWM signal across 4.0–8.4V, it combines programmable stroke and speed with power-off position stability and a 32-bit digital amplifier for repeatable positioning (±0.3mm). Full motion is available using a 1050–1950µs input range, simplifying integration with most radios and controllers. Hitec model HLS12-50380-6V, part number 2212206.
Key Features
- 50mm stroke with 380:1 gear ratio
- PWM command protocol with 1050–1950µs full excursion
- Operating voltage: 4.0–8.4V DC (tested at 6.0V)
- Cored metal brush motor with 5mm lead screw
- 32-bit programmable digital amplifier
- Repeatability: ±0.3mm; power-off position stability
- Variety of mounting options
- Flange bearing support; 4 metal gears; IP4X rating
- Engineering plastic and aluminium pipe construction
- Connector lead: 160mm, 24AWG
Performance Figures
- No-load speed: 3.3mm/s; no-load current: 100mA
- Maximum efficiency point: load 6.5kg (64N), speed 2.5mm/s, current 200mA
- Pear Power Point: load 10.0kg (98N), speed 1.9mm/s, current 300mA
- Max force (lifted): 12.0kg (118N) at 1.2mm/s; current 400mA
- Stall force: 5.0kgf (49.03N); stall current: 500mA
- Max static force: 20.39kgf (200N)
- Max side load (extended): 3.06kgf (30N)
Dimensions and Details
- Outline dimensions: 102.0 × 15.0 × 18.0mm
- Product length × width × height: 152 × 15 × 18mm
- Servo size: 50mm travel
- Colour: Black; material: Metal + Plastic
- Shipping weight: 0.11kg
Suggested Compatibility
- Robotics projects requiring compact linear motion
- Animatronics and motion props
- Industrial mechanical applications
Secured by Stripe
With 50mm of travel and a 380:1 gear ratio, the HLS12-50380 is ideal for medium stroke applications requiring maximum power.
Controlled using a traditional PWM servo signal, Hitec linear actuators provide optimised motion control for precise and powerful positioning. Whether your application demands a low-profile form factor, or extended linear throws, we have an actuator to suit your needs. Our linear actuators are popular for a myriad of uses including robotics and animatronics, as well as industrial mechanical applications. Programmable stroke and speed settings, power-off position stability, and a variety of mounting options, provide additional functionality and flexibility. Additionally, Hitec linear actuators provide full excursion using a 1050 - 1950µs input range. This feature allows fully compatible use with all radios, by eliminating the requirement for programming extended rates to achieve full motion.
Hitec HLS12-50380-6V 50mm Stroke 380:1 Linear Servo 12kg/1.2mm/s 4.0V - 8.4V Key Features:
- Command Protocol: PWM
- Lead Screw: 5mm
- Motor Type: Cored Metal Brush
- Operating Voltage (Volts DC): 4.0V ~ 8.4V
- Testing Voltage: 6.0V
- Gear Ratio: 380:1
- No Load Speed: 3.3mm/s
- No Load Current: 100mA
- Maximum Efficiency Point: Load (kg / N): 6.5 / 64 - Speed (mm/s): 2.5 - Current (mA): 200
- Pear Power Point: Load (kg / N): 10.0 / 98 - Speed (mm/s): 1.9 - Current (mA):300
- Max Force (Lifted): Load (kg /N): 12.0 / 118 - Speed (mm/s): 1.2 - Current (mA): 400
- Stall Force: 5.0kgf (49.03N)
- Stall Current: 500mA
- Max Static Force: 20.39kgf (200N) (above)
- Stroke SPEC: 50mm
- Repeatability: ±0.3mm
- Max Side Load (Extended): 3.06kgf (30N)

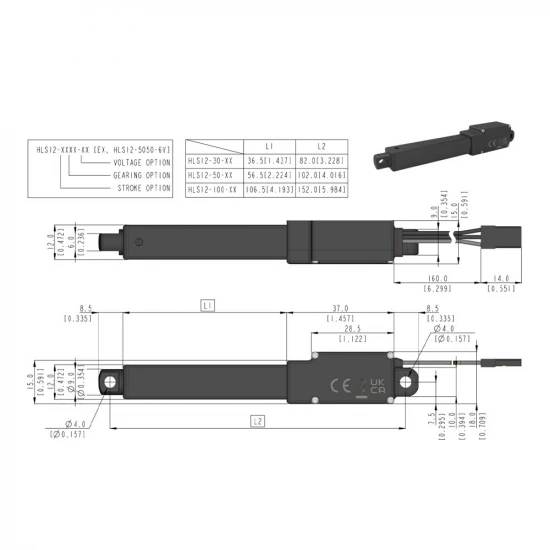

- Outline Dimensions: 102.0 x 15.0 x 18.0mm (4.02 x 0.59 x 0.71 in.)
- Weight: 40g (1.41 oz)
- Connector Wire Length: 160mm (6.29 in.)
- Connector Wire Gauge: 24AWG
- Bearing Type: Flange bearing
- Case Material: Engineering Plastic & Aluminium Pipe
- Gear Material: 4 Metal Gears
- IP Rating: IP4X
- Servo Amplifier Type: 32bit programmable Digital
Hitec HLS12-50380-6V 50mm Stroke 380:1 Linear Servo 12kg/1.2mm/s 4.0V - 8.4V Tech Specs:
- Weight: 40g / 1.41oz
- Shipping Weight: 0.11kg / 0.23lbs
- Product Height: 18mm / 0.71in
- Product Width: 15mm / 0.59in
- Product Length: 102mm / 5.98in
- Application: Industrial
- Servo Size: Linear
- Age Recommendation: 14+
- Colour: Black
- Material: Array
Key Info:
- Brand: Hitec
- Part No: 2212206
- Barcode: 0669962410267
