Hobao Hyper 10SC 2.0 ARTR, Clear Body (HB-SC2E)
Brand: Hobao
Part No: HB-SC2E
£209.14
RRP £234.99
In Stock: Usually ships same day
Finance options available at checkout.
Related Items
Description

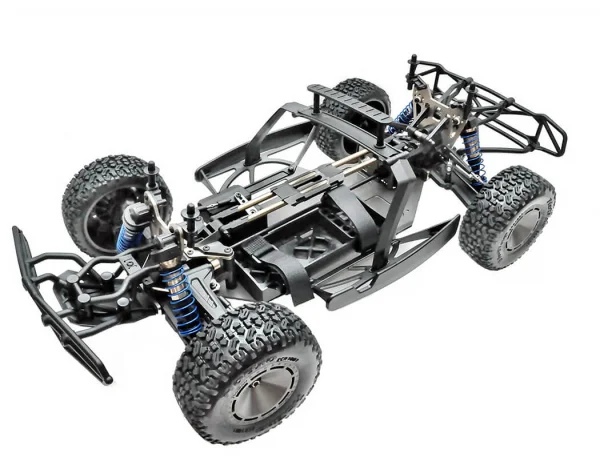

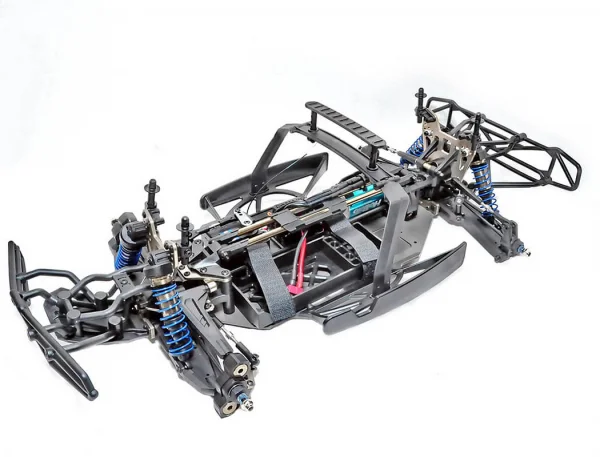

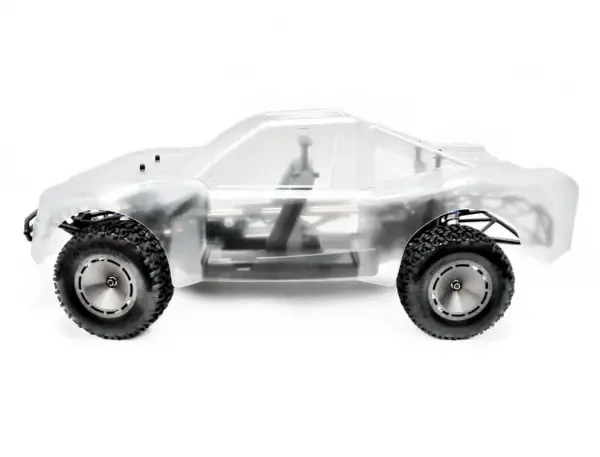

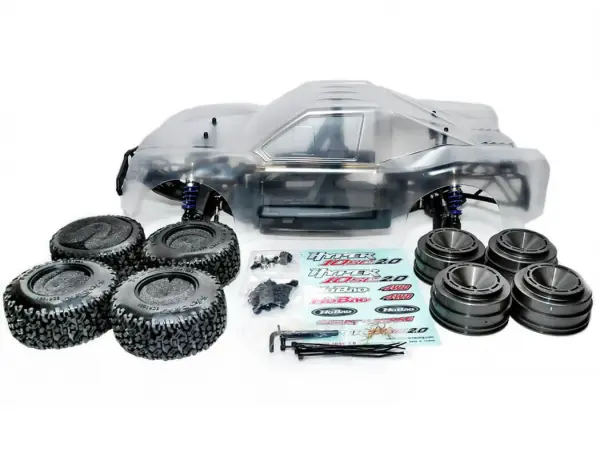

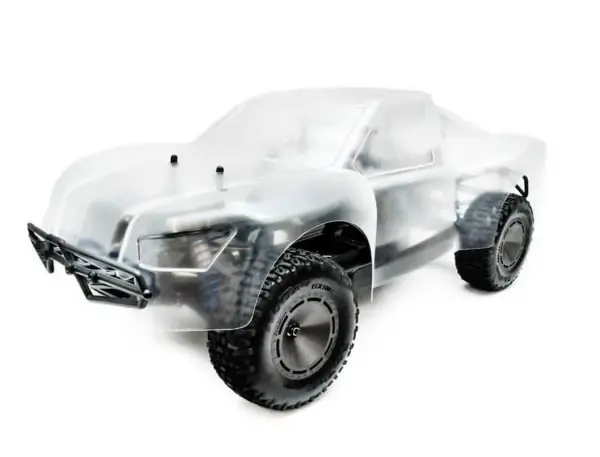

The Hobao Hyper 10SC 2.0 ARTR (HB-SC2E) is an electric short course truck roller supplied with a clear body shell. Its hard‑anodised 3 mm CNC aluminium chassis, all‑metal drivetrain and 12 mm big‑bore alloy shocks deliver a durable, precise platform ready for your chosen electronics.
Factory-assembled as an ARR/ARTR, it lets you select your preferred radio, ESC, motor and servo before gluing the tyres and painting the shell.
Features
- All metal parts CNC machined

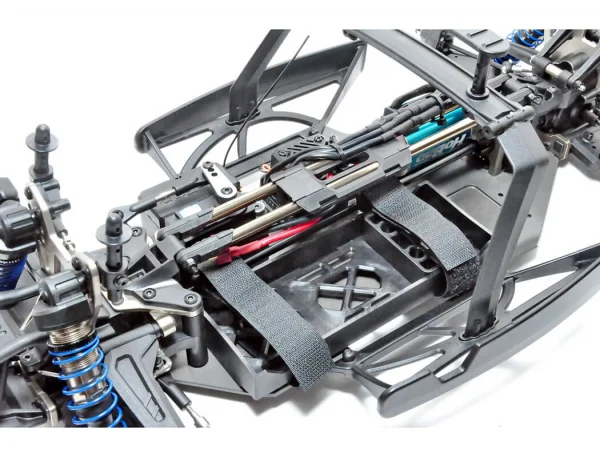

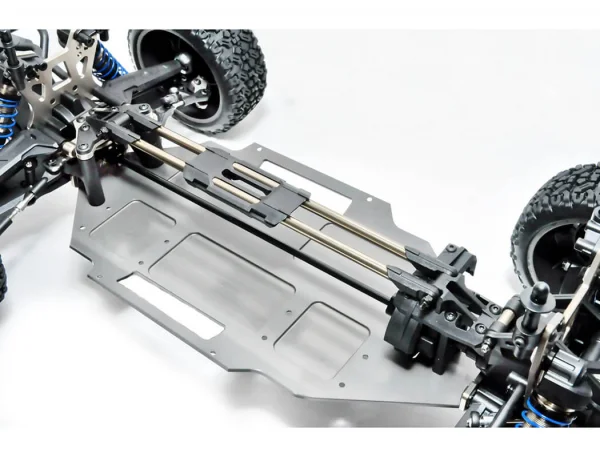

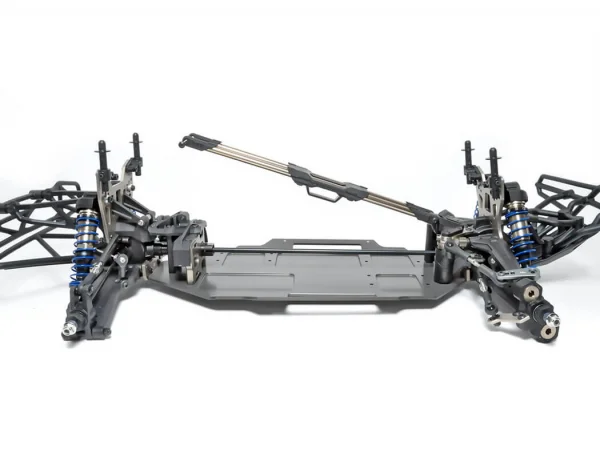

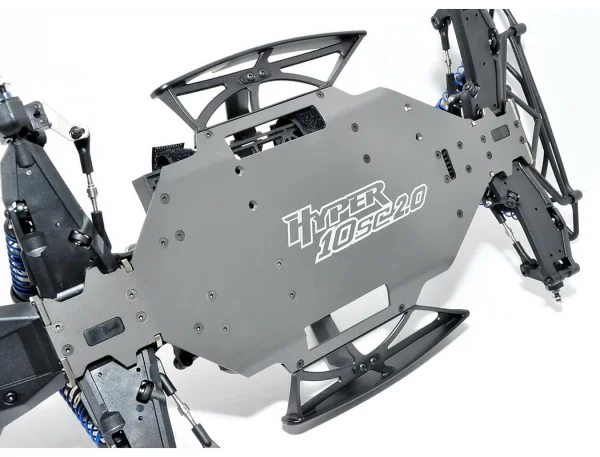

- Chassis: Lightweight, hard‑anodised 3 mm CNC aluminium with centre top brace (wire pass-through, quick release) and strengthened centre body shell frame
- Drivetrain: Single Ø4 mm hardened steel centre driveshaft; front CVA axles Ø3.2 mm; rear dogbone axles Ø3.4 mm (optional rear CVA axles HOP1-0082; optional aluminium centre driveshaft HOP1-0083)
- Differentials: Front, rear and centre metal bevel gear diffs with anti‑leak housings; centre diff directly connected to rear diff; gearing—pinion 10T (MOD 1), ring 39T (MOD 1), centre spur 40T (MOD 1), motor gear 13T (MOD 1)
- Factory oils: Front diff 20K silicone; centre diff 9K; rear diff 5K
- Shocks: Aluminium 12 mm big‑body units with 3.5 mm shafts, adjustable rings and cap protectors; oil—front 700, rear 600
- Springs: Front 0.86 kg/cm (L=50 mm, blue); rear 0.64 kg/cm (L=65 mm, blue). Optional springs—front HOP1-0073 (1 kg/cm, L=50 mm, grey); rear HOP1-0074 (0.73 kg/cm, L=65 mm, grey)

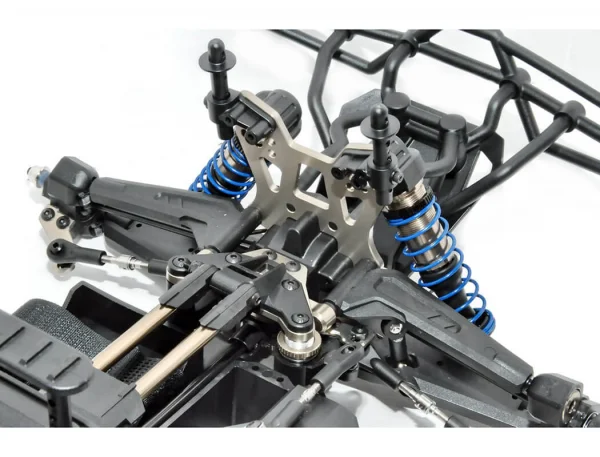

- Shock towers: 3 mm CNC aluminium; optional carbon fibre towers—front HOP1-0070, rear HOP1-0071

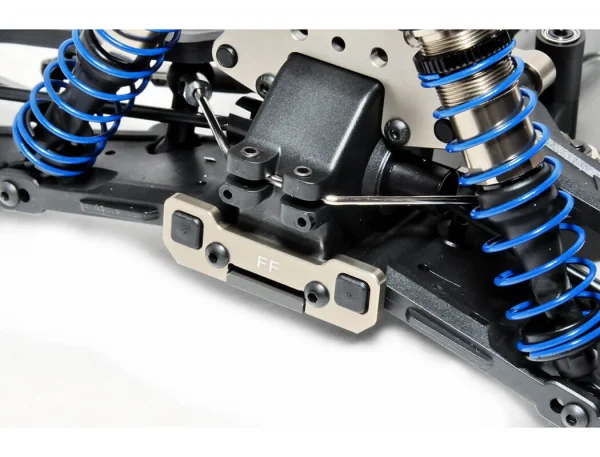

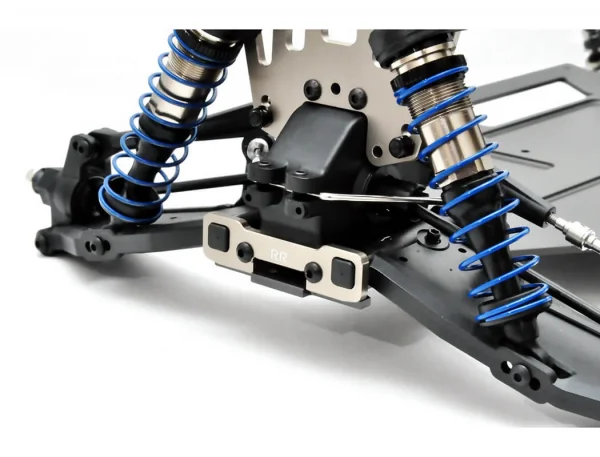

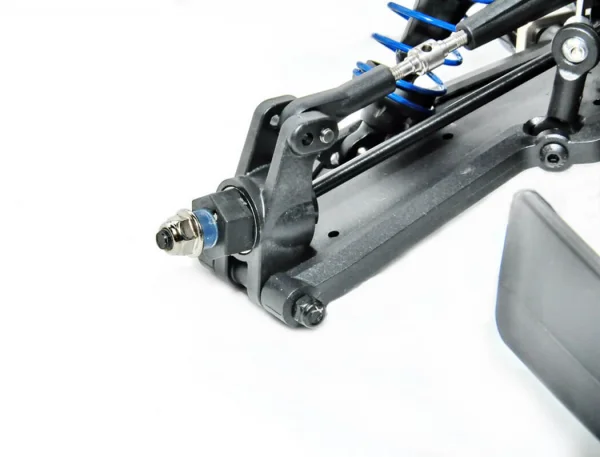

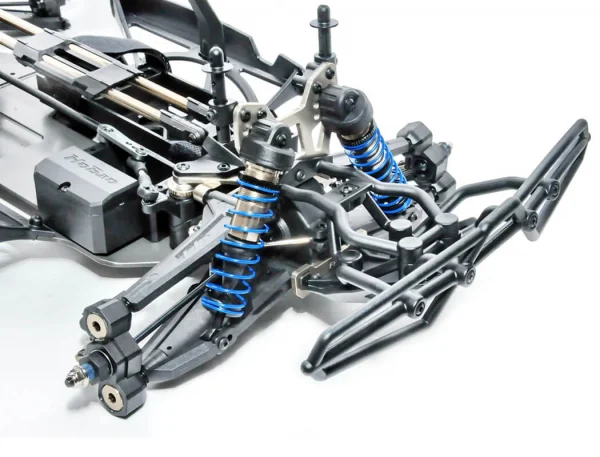

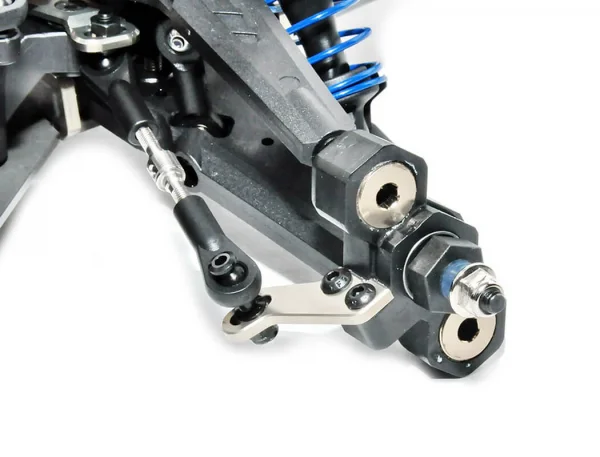

- Suspension: Front PBS; new steering block with enlarged pivot ball and aluminium steering arms; strengthened composite upper and lower arms; front & rear anti‑roll bars; new aluminium front and rear arm holders; CNC aluminium arm holders with pill inserts H11367 for adjustable toe and anti‑squat; optional carbon fibre arm inserts HOP1-0068/HOP1-0069; optional aluminium steering block set HOP1-0077; aluminium rear hub HOP1-0079

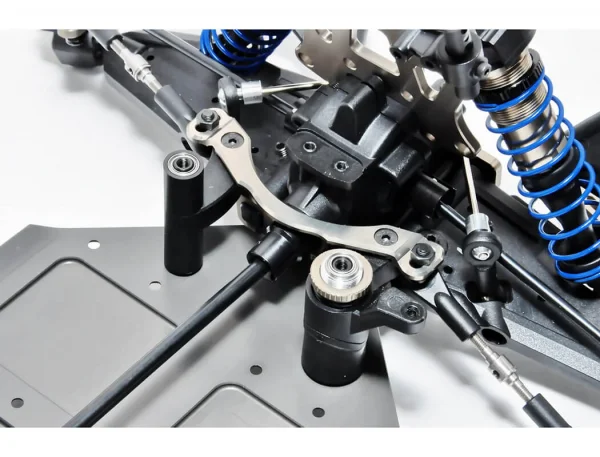

- Steering: New crank set with strengthened CNC aluminium steering rack and hard spring; ball‑bearing servo saver
- Motor mount: CNC aluminium laydown mount, fitting motors below 38 mm; spur gear cover
- Wheels & tyres: 2.2″/3.0″ short course tyres; wheels 2.2″/3.0″, 12 mm (H40127); wheel hex—front 12 mm, rear 12 mm +1 mm (optional hex hubs HOP1-0075/HOP1-0076); optional 5‑spoke wheels H11034
- Ball bearings: Full set included
- Geometry: Adjustable caster and camber
Specifications

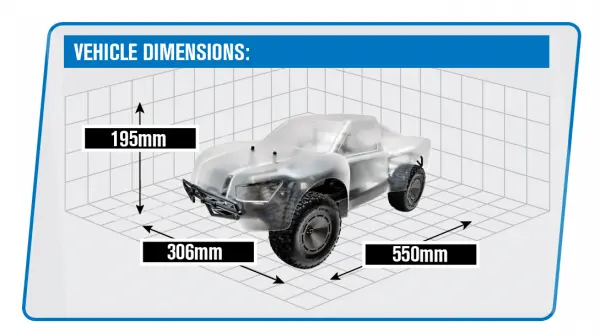

- Length: 550 mm
- Width: 306 mm
- Height: 195 mm
- Wheelbase: 325 mm
- Front track: 235 mm
- Rear track: 240 mm
- Weight: 2870 g
Required To Complete
- 2‑channel radio
- ESC & motor
- High‑torque steering servo
- Tyre glue
- Paint for body
Secure Payments
Secured by Stripe
Hobao Hyper 10SC 2.0 ARTR Manuals & Guides
Manuals & Guides
How-To Guides & Articles
Specifications
HOBAO HYPER 10SC 2.0 ELECTRIC TRUCK ARR WITH CLEAR BODYFeatures
Key Info:
- All Metal Parts CNC Machined.
- Chassis: Lightweight, Hard anodised CNC aluminium, 3mm thick.
- Center Top Brace
- Wire pass through.
- Quick Release. - Drive:
- Central: Single Ø4mm Hardened steel center driveshaft.
- Optional Aluminum center driveshaft HOP1-0083.
- Front wheel: CVA axles, Ø3.2mm Hardened steel.
- Rear wheel: Dogbone axles, Ø3.4mm Hardened steel.
- Optional rear wheel CVA axles HOP1-0082. - Differentials:
- Center differential is directly connected to rear differential.
- Front, Rear and Center Differential, Metal Bevel gear, Anti-leakage Differential housing.
- Pinion Gear: 10T (MOD 1)/ Ring Gear: 39T (MOD 1).
- Center Spur Gear: 40T (MOD 1).
- Motor Gear:13T (MOD 1).
- Front differential filled with 20K silicone oil.
- Center differential filled with 9K silicone oil.
- Rear differential filled with 5K silicone oil. - Shocks:
- Filled with front 700 silicone oil and rear 600 silicone oil.
- Aluminium 12mm Big Body, 3.5mm Shaft, Alum Adjustable Ring, Shock Cap Protector. - Spring:
- Front: 0.86kg/cm, L=50mm, Blue.
- Rear: 064kg/cm, L=65mm, Blue.
- Optional Front Spring HOP1-0073: 1kg/cm, L=50mm, Grey.
- Optional Rear Spring HOP1-0074: 0.73kg/cm, L=65mm, Grey.
- Shock Tower: 3mm CNC aluminium.
- Optional carbon fiber shock tower, Front tower HOP1-0070 & Rear tower HOP1-0071. - Suspension:
- Front PBS.
- New design steering block with enlarged pivot ball and alum steering arms.
- Optional alum steering block set HOP1-0077; Alum rear hub HOP1-0079.
- New strengthened composite upper arms and lower arms.( Also Fitting for older versions of the Hyper 10SC).
- Optional carbon fiber arm insertHOP1-0068 and HOP1-0069.
- Front & rear anti-roll bars.
- New Alum front and rear arm holder.
- Front and rear CNC alum arm holder with pill inserts H11367, adjustable toe angles and anti-squat angles. - Steering:
- New Steering Crank set with Strengthen CNC Aluminium steering rack and hard spring.
- Ball bearing equipped with servo saver. - Strengthen center body shell frame.
- Motor Mount:
- CNC aluminium laydown motor mount.
- Fitting for motors with size below 38mm.
- Spur gear cover. - Tyres:
- 2.2″/3.0″ Short Course Tyres. - Wheel Hex Hub:
- Front 12mm wheel hex hubs , Plastic.
- Rear 12mm wheel hex hubs, +1mm , Plastic.
- Optional Front wheel hex hubs HOP1-0075; Rear wheel hex hubs HOP1-0076. - Wheels:
- 2.2″/3.0, 12mm H40127.
- Optional 5-Spoke Wheels. H11034. - Ball Bearings:
- Full set included. - Caster:
- Adjustable. - Camber:
- Adjustable.
Length: 550mm
Width: 306mm
Height: 195mm
Wheelbase: 325mm
Front Track: 235mm
Rear Track: 240mm
Weight: 2870g
- Radio 2 channel.
- ESC & Motor.
- High-torque steering servo.
- Glue for tyre.
- Paint for body.
Key Info:
- Brand: Hobao
- Part No: HB-SC2E
- Barcode: 4711256703770
- Scale: 1:10
- Power Source: Electric - No Motor
- Surface Type: Off Road
- Build Level: Part Assembled (ARTR)
- Vehicle Type: Short Course Truck
