Description

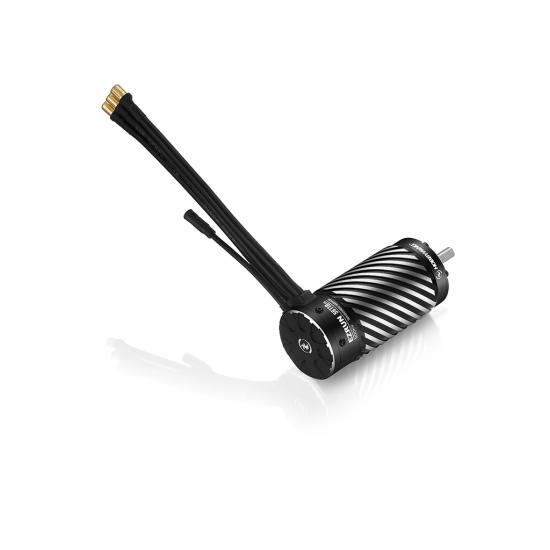

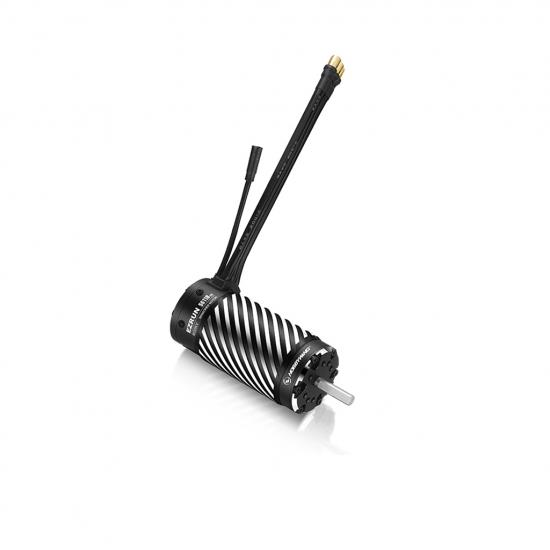

The Hobbywing EZRun 1/5 56118SD 1100KV Motor G2 (Black) delivers smooth, sensored control and serious large-scale performance. Upgraded to a full sensored system with a new waterproof sensor cable and high-precision encoder, this G2 motor provides improved acceleration linearity, stronger punch and consistent rotor position feedback for stable running. Built to handle demanding 6–8S setups in 1/5 applications, it combines robust construction with refined control. Part number HW30402903.
Key Features
- Upgraded sensored system with a new waterproof sensor cable for improved throttle feel and response.
- Designed to work seamlessly with the Hobbywing EZRun MAX5 G2 ESC; the ESC can recognise the motor for full-sensor operation and motor overheat protection.
- Independent high-precision encoder outputs clean rotor position signals for stable sensored performance.
- CNC machined aluminium housing, high-purity copper windings, high-strength explosion-proof rotor and ultrathin silicon steel laminations.
- Stainless-steel output shaft, high-precision bearings, and improved sensor interface with rubber-covered bearing for enhanced dust and water resistance.
Specifications
- KV: 1100KV
- LiPo: 6–8S
- No-load current: 8.0 A
- Diameter: 56 mm (2.20 in)
- Length: 30 mm (1.18 in)
- Shaft diameter: 8 mm (0.31 in)
- Shaft length: 30 mm (1.18 in)
- Bearing size (mm): Front D22 × D8 × T7; Rear D19 × D8 × T6
- Poles: 4
- Weight: 1287 g
Suggested Compatibility
- Hobbywing EZRun MAX5 G2 ESC for full-sensor operation and protection features.
- 1/5 scale buggy and truck platforms.
Secured by Stripe
Specifications
- Compared with the previous generation, ithas added a new waterproof sensor cable, upgraded to a sensored system, with better accelerate linearity and stronger explosive force.
- It has perfect compatibility when it is matched with Hobbywing EZRUN MAX5 G2 ESC, the esc can automatically recognize this motor, and build a power system with full sensor mode, providing better control performance and more delicate control feel, and also realizing the motor overheat protection function.
- The independent high-precision encoder always outputs pure rotor position signal, which effectively avoids the interference of sensor signal and makes the motor work stably in sensor state.
- CNC machined aluminum housing, high purity copper windings, high strength explosion-proof rotor, ultrathin silicon steel laminations, high-quality stainless steel output shaft, high-precision bearing for high durability and smoothness.
- The innovative new sensor interface and rubber cover bearing have better waterproof and dustproof effect than the traditional sensor motor.
KV: 1100KV
LiPo's: 6-8S
No-Load Current:8.0A
Diameter / Length: 56mm (2.20") 30mm (1.18")
Shaft Diameter / Length: 8mm (0.31") 30mm(1.18")
Bearing SIze (mm): Front: D22*D8*T7 Rear: D19*D8*T6
Poles: 4
Weight: 1287g
Applications: 1/5th Buggy, Truck
Key Info:
- Brand: Hobbywing
- Part No: HW30402903
- Barcode: 6938994406291
