Description

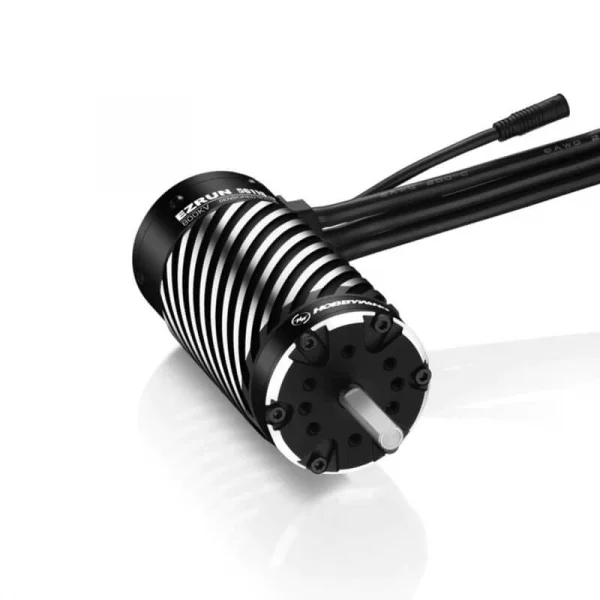

The Hobbywing EZRun 1/5 56118SD 650KV Motor G2 (Black), part number HW30402902, brings a sensored upgrade to large-scale RC with a waterproof sensor cable, refined acceleration linearity and strong punch. Built for 8–12S LiPo systems, it is engineered for demanding 1/5-scale use where durability, smooth control and thermal protection are essential.
Features
- Upgraded sensored design with a new waterproof sensor cable for improved throttle linearity and response.
- Dedicated high-precision encoder delivers accurate rotor position signals for stable full-sensor operation.
- CNC-machined aluminium can, high-purity copper windings and ultra-thin silicon steel laminations for efficiency and performance.
- High-strength, explosion-resistant rotor and high-quality stainless steel output shaft.
- High-precision bearings for durability and smooth running.
- New sensor interface and rubber-covered bearing enhance waterproofing and dust protection.
- Supports full-sensored operation and motor overheat protection when used with a suitable ESC (see suggested compatibility).
Specifications
- KV: 650KV
- LiPo: 8–12S
- No-Load Current: 5.5A
- Diameter / Length: 56mm (2.20") / 30mm (1.18")
- Shaft Diameter / Length: 8mm (0.31") / 30mm (1.18")
- Bearing Size (mm): Front D22×D8×T7; Rear D19×D8×T6
- Poles: 4
- Weight: 1272g
Suggested Compatibility
- Hobbywing EZRun MAX5 G2 ESC for full-sensored operation and motor overheat protection (suggested compatibility).
- 1/5-scale buggy and truck platforms (suggested compatibility).
Secured by Stripe
Specifications
- Compared with the previous generation, ithas added a new waterproof sensor cable, upgraded to a sensored system, with better accelerate linearity and stronger explosive force.
- It has perfect compatibility when it is matched with Hobbywing EZRUN MAX5 G2 ESC, the esc can automatically recognize this motor, and build a power system with full sensor mode, providing better control performance and more delicate control feel, and also realizing the motor overheat protection function.
- The independent high-precision encoder always outputs pure rotor position signal, which effectively avoids the interference of sensor signal and makes the motor work stably in sensor state.
- CNC machined aluminum housing, high purity copper windings, high strength explosion-proof rotor, ultrathin silicon steel laminations, high-quality stainless steel output shaft, high-precision bearing for high durability and smoothness.
- The innovative new sensor interface and rubber cover bearing have better waterproof and dustproof effect than the traditional sensor motor.
KV: 650KV
LiPo's: 8-12S
No-Load Current:5.5A
Diameter / Length: 56mm (2.20") 30mm (1.18")
Shaft Diameter / Length: 8mm (0.31") 30mm(1.18")
Bearing SIze (mm): Front: D22*D8*T7 Rear: D19*D8*T6
Poles: 4
Weight: 1272g
Applications: 1/5th Buggy, Truck
Key Info:
- Brand: Hobbywing
- Part No: HW30402902
- Barcode: 6938994406277
