Hobbywing EZRun 1:5 56118Sd 800Kv Motor G2 (Black)

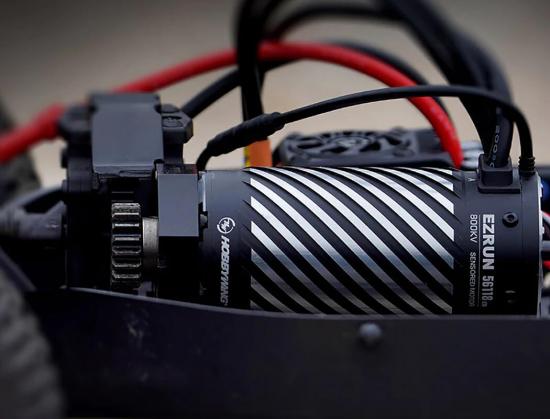

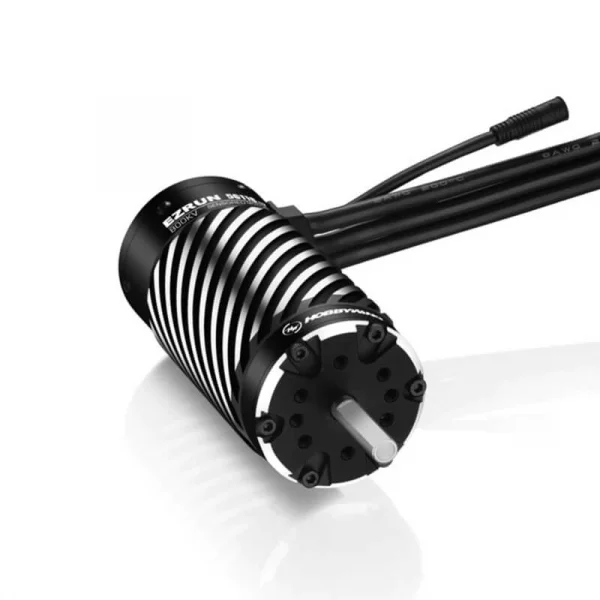

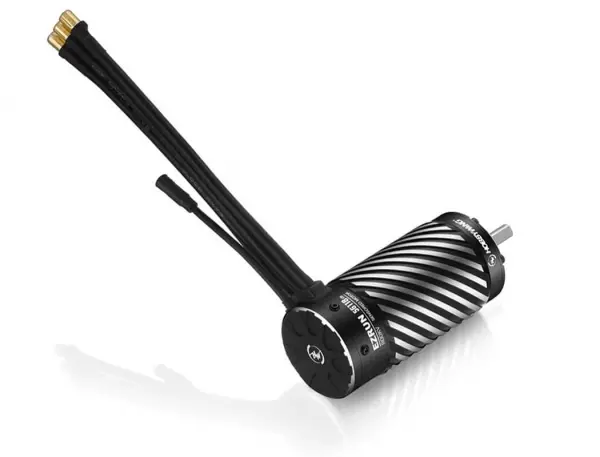

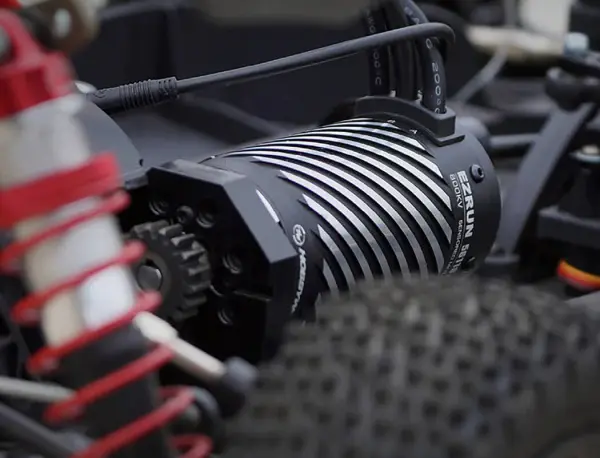

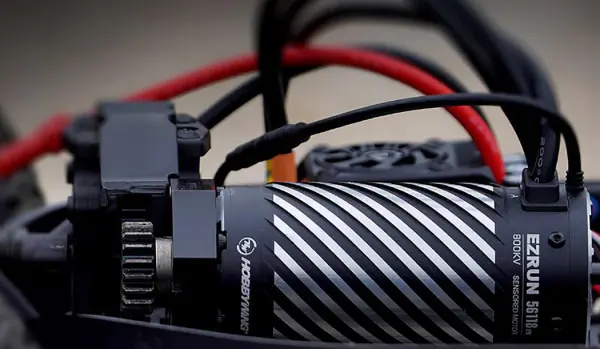

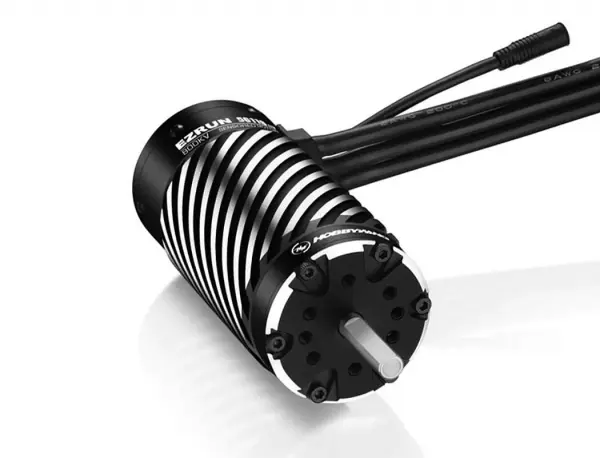

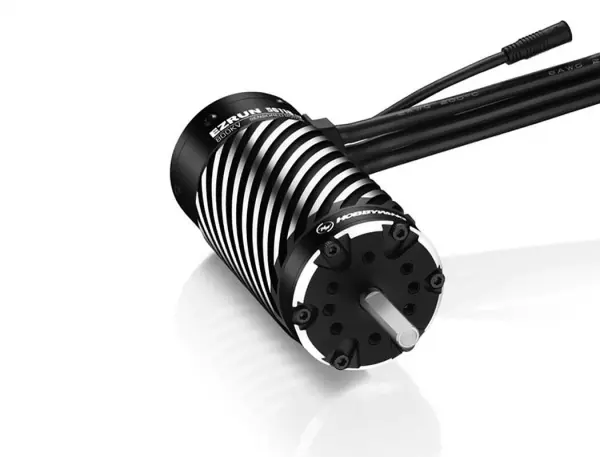

The Hobbywing EZRun 1/5 56118SD 800Kv Motor G2 (Black), part number HW30402901, is a sensored brushless motor designed for large-scale RC applications. Compared with the previous generation, it adds a waterproof sensor cable and runs in full sensored mode for improved acceleration linearity and stronger punch.

Matched with the Hobbywing EZRun MAX5 G2 ESC, the system can automatically recognise the motor to enable full-sensor operation, enhanced control feel and motor overheat protection. An independent high-precision encoder outputs a clean rotor position signal to reduce interference and keep sensored running stable.

The robust construction includes a CNC-machined aluminium housing, high-purity copper windings, a high-strength explosion-proof rotor, ultrathin silicon steel laminations, a stainless steel output shaft and high-precision bearings. A new sensor interface and rubber cover bearing improve waterproofing and dust resistance.

Features

• Sensored G2 design with waterproof sensor cable
• Optimised pairing with Hobbywing EZRun MAX5 G2 ESC for full-sensor mode and overheat protection
• Independent high-precision encoder for stable, low-interference rotor position feedback
• CNC-machined aluminium can and high-purity copper windings
• High-strength explosion-proof rotor and ultrathin silicon steel laminations
• Stainless steel output shaft and high-precision bearings
• Improved waterproof and dustproof performance via new sensor interface and rubber cover bearing

Specifications

• KV: 800Kv
• LiPo: 8–12S
• No-Load Current: 6.9A
• Diameter: 56mm (2.20")
• Length: 30mm (1.18")
• Shaft Diameter: 8mm (0.31")
• Shaft Length: 30mm (1.18")
• Bearing Size (mm): Front D22×D8×T7; Rear D19×D8×T6
• Poles: 4
• Weight: 1277g
• Colour: Black
• Part Number: HW30402901

Suggested Compatibility

• 1/5th buggy and truck platforms
