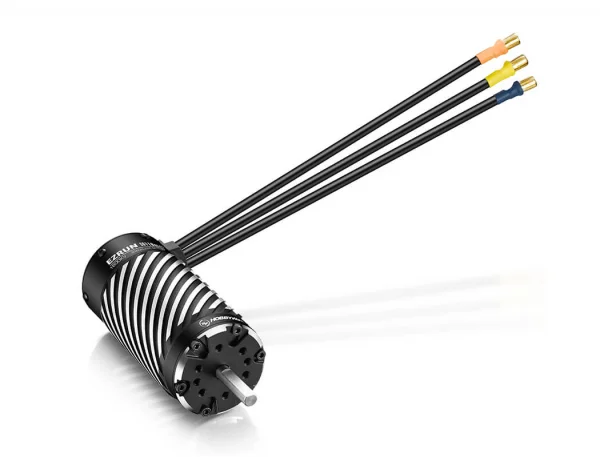

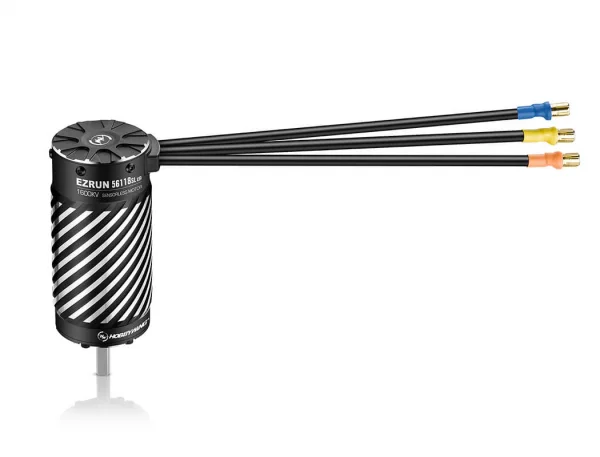

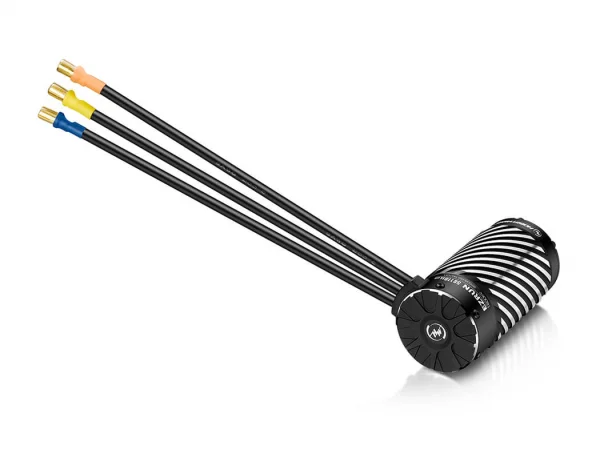

Hobbywing EZRun 1:5 56118Sl 1600Kv G2 Motor (Black)

The Hobbywing EZRun 56118SL 1600Kv G2 brushless motor (black) delivers serious power for large-scale and extreme-speed RC applications. With a 56mm diameter can and 118mm length, this high-torque, 4‑pole sensorless unit is engineered to run on 6–12S LiPo, making it a strong choice for high-speed setups that demand efficiency and durability. The 8mm shaft and oversized bearings support heavy loads, while the G2 specification pairs ideally with Hobbywing’s MAX5 HV Plus G2 ESC. Hobbywing part number HW30402905.

Designed for robust performance and dependable running, the 56118SL offers a compelling balance of RPM potential and smooth power delivery for demanding surfaces and gearing. Whether you’re building a high-speed basher or a straight-line speed project, this motor provides a solid foundation with the dimensions and hardware to match.

Key Specifications

• Scale: 1/7th–1/8th
• Motor Type: Brushless, Sensorless
• Poles: 4
• KV Rating: 1600Kv
• LiPo Cells: 6–12S
• No-load Current: 16A
• Outer Diameter: 56mm
• Length: 118mm
• Shaft Diameter: 8mm
• Weight: 1270g
• Front Bearing: D22 × D8 × T7
• Rear Bearing: D19 × D8 × T6
• Recommended ESC: EZRun MAX5 HV Plus G2
• Colour: Black

Suggested Compatibility

• 1/8th and 1/7th RC vehicles intended for extreme-speed applications
• Large-scale builds requiring a 56mm-diameter, 118mm-length motor format
