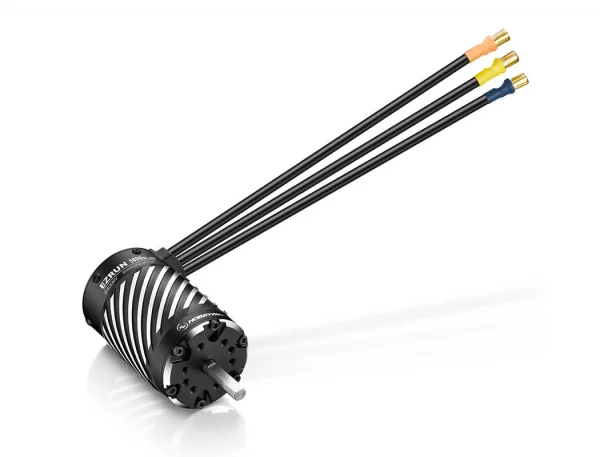

Hobbywing EZRun 1:5 5690SL 2400Kv G2 Motor (Black)

The Hobbywing EZRun 1:5 5690SL 2400KV G2 Motor (Black) – part number HW30402904 – is a high-output, sensorless 4-pole brushless motor built for extreme speed applications. Supporting 6–8S LiPo power, it combines a 56 mm can, 90.5 mm length and robust 8 mm shaft to suit heavy-duty performance setups.

Matched to the EZRUN MAX5 HV PLUS G2 ESC, this 5690SL G2 variant delivers strong, consistent power with a listed no-load current of 16 A. Front and rear bearings are specified for smooth running and durability.

Key Specifications

• Type: Brushless (BL), Sensorless (SL)
• Poles: 4
• KV Rating: 2400KV
• LiPo Cells: 6–8S
• No-load Current: 16 A
• Outer Diameter: 56 mm
• Length: 90.5 mm
• Shaft Diameter: 8 mm
• Weight: 885 g
• Front Bearing: D22 × D8 × T7
• Rear Bearing: D19 × D8 × T6

Suggested Compatibility

• 1/8th model cars for extreme speed applications
• 1/7th model cars for extreme speed applications
• Other model cars intended for extreme speed use

ESC Pairing

ESC: EZRUN MAX5 HV PLUS G2.
