Hobbywing Ezrun 70125Sd 560Kv V1 Motor (Black)

The Hobbywing EzRun 70125SD 560KV V1 Motor (Black), part number HW30402850, is a large-format brushless unit built for demanding, heavy-duty applications. Designed for speed and power, it offers aggressive launch characteristics and operates across 8–12S LiPo systems. With a robust 4-pole construction, a substantial 70 x 125 mm can size, an 8 mm shaft and a 1995 g build, it is well suited to large-scale off-road trucks where strong performance is essential.

Key Features

• Advanced Brushless Sensorless technology

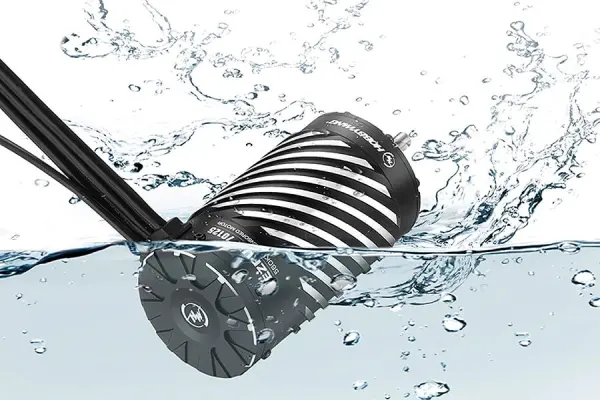

• Waterproof, advanced sensored motor
• Designed for SPEED & POWER
• Aggressive Launch

Specifications

• Pole: 4
• KV (No-load): 560KV
• R (Ω): 0.0050
• No-load Current (A): 3.6

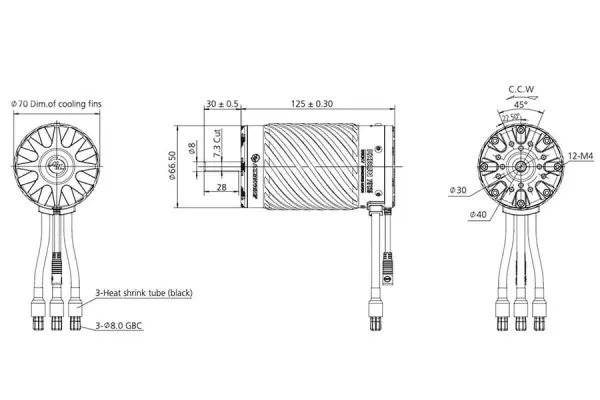

• Motor Diameter & Length (mm): 70mm (2.760in) / 125mm (4.921in)
• Shaft Diameter & Length of Projecting Part (mm): 8mm (0.315in) / 30mm (1.181in)
• LiPo (S): 8-12S LiPo
• Weight: 1995g
• Applicable: 1/4th, 1/5th Heavy-duty Off-road, Truck
• Best match with: MAX 4 HV ESC

Suggested Compatibility

• 1/4th scale heavy-duty off-road builds
• 1/5th scale heavy-duty off-road trucks
• Large RC trucks requiring 8-12S power systems

Suggested Pairing

• Hobbywing MAX 4 HV ESC

Leveraging the EzRun 560KV rating and the manufacturer’s focus on speed, power and launch performance, this black-finished 70125SD motor is a strong choice for large-scale projects where high-voltage efficiency and durable construction are priorities.
