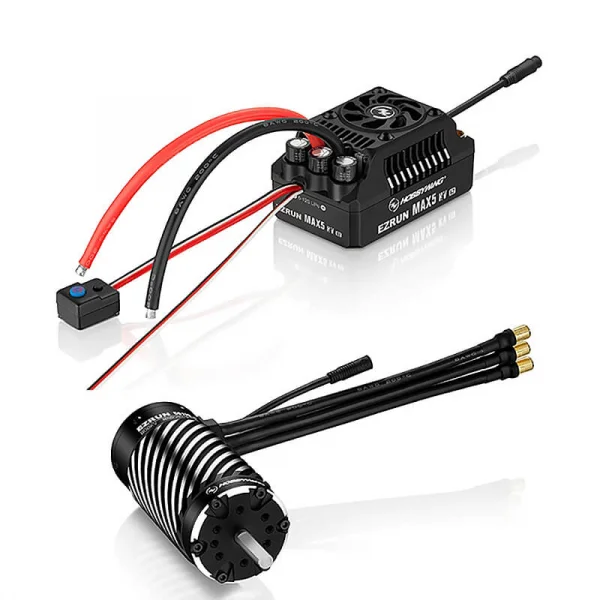

Hobbywing EZRun MAX5 HV G2 ESC Combo With 56118SD 1100KV G2 Motor

The Hobbywing EZRun MAX5 HV G2 ESC Combo with 56118SD 1100KV G2 Motor (HW38010604) delivers heavy-duty power and control for large-scale RC applications. Pairing a robust 1/5-scale ESC with a high-torque brushless motor, this combo is built to handle demanding terrain and high loads with dependable efficiency.

Key Features

• Excellent waterproof and dustproof performance for confident running in varied climates and harsh environments.
• Smart freewheeling technology for higher driving efficiency, lower operating temperatures, and improved stability and reliability.
• Built-in switch-mode BEC: continuous current up to 5A (instant up to 10A), adjustable output 6V–8.4V to support powerful, high-voltage servos.
• Multiple protection functions: battery low-voltage, ESC overheat, throttle signal loss, current, and capacitor overheat protection.
• Independent programming port for convenient tuning without removing the throttle lead from the receiver.

Motor Specifications (56118SD 1100KV G2)

• KV: 1100KV
• LiPo's: 6–8S
• No-load Current (A): 8.0A
• Diameter / Length: φ=56mm (2.20") / L=119.2mm (4.69")
• Shaft Diameter / Length: φ=8mm (0.31") / L=30mm (1.18")
• Bearing Size (mm): Front: D22×D8×T7; Rear: D19×D8×T6
• Pole: 4
• Weight: 1287g
• Applications: 1/5 Buggy, Truck

ESC Specifications (EZRun MAX5 HV G2)

• Cont. / Peak Current: 250A / 1600A
• Motor Type: Sensored / Sensorless Brushless Motor
• Application: 1/5th Buggy, Truck
• Motor Limit (Note*): With 8S LiPo: KV < 1200; With 12S LiPo: KV < 800; 56118 size motor
• LiPo Cells: 6–12S LiPo
• BEC Output: 6V / 7.4V / 8.4V adjustable, continuous current 8A (switch-mode)
• Cooling Fan: Powered by a stable 6V or 7.4V or 8.4V from the built-in BEC
• Size / Weight: 94.5(L) × 59.4(W) × 50.9(H) mm / 428.5g (included input wires)
• Programming Port: Independent programming port

Suggested Compatibility

• 1/5 scale buggies
• 1/5 scale trucks

Note: The KV range stated is a recommended value under standard application and does not represent the maximum RPM supported by the ESC.
