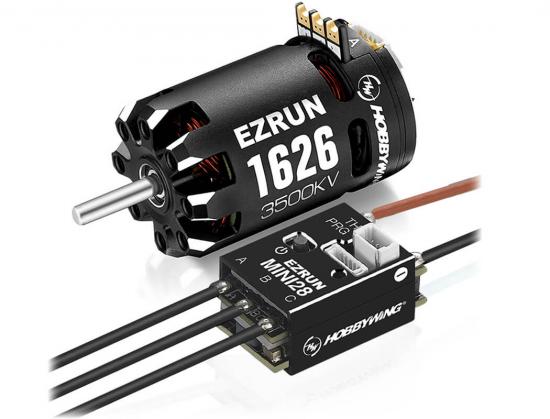

Hobbywing EZRun Mini28 ESC Combo With 1626Sd 3500Kv Motor

The Hobbywing EZRun Mini28 ESC Combo With 1626SD 3500kV Motor (HW38020366) delivers a matched, high-performance brushless power system for 1/28 mini racing. The compact 30A ESC teams with the sensored 1626 motor to provide precise response, improved driving feel and notable gains in top speed, all in a lightweight package optimised for micro RC cars.

With over 25 adjustable parameters, the EZRun Mini28 makes it easy to tailor throttle, braking and other behaviours to track conditions and personal preference. Programming is straightforward via the Hobbywing LCD G2 programming box or the OTA programming module. Built-in protections help safeguard your electronics, while the motor’s serviceable design means you can dismantle it easily for maintenance.

Key Features

• Specially designed for the 1/28 mini racing category
• Small, lightweight ESC with over 25 adjustable parameters
• Easily programmable with the LCD G2 programming box and OTA programming module
• Huge improvements in driving feel and top speed
• Precise response for refined control
• Engineered to meet the demands of high-performance drivers
• Various built-in protections
• Motor can be easily dismantled for maintenance

What’s Included

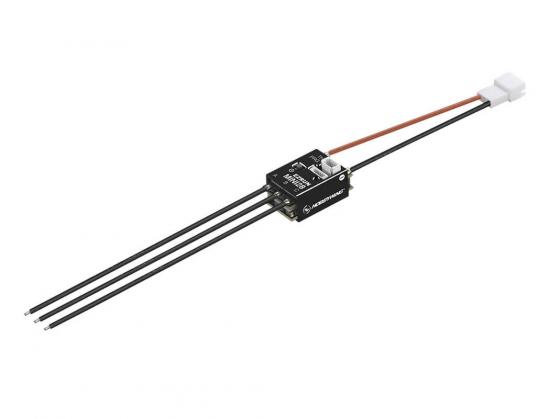

• EZRun Mini28 30A 2S ESC

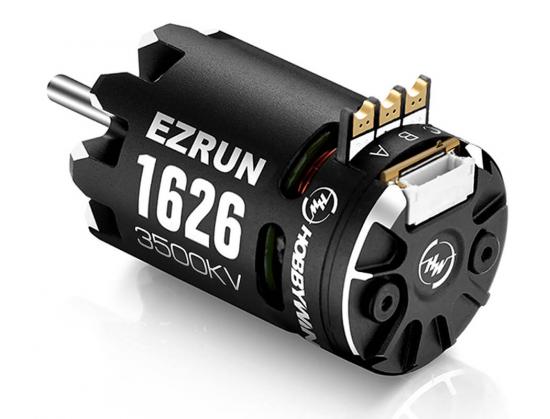

• EZRun 1626 3500kV sensored motor

ESC Specifications

• Current (continuous/peak): 30A / 80A
• Cells: 2S LiPo
• BEC: Switch-mode, adjustable 6–7.4V
• Dimensions: 22.7 x 14.2 x 11.8 mm
• Weight: 5 g
• Application: 1/28 Mini

Motor Specifications

• Type: Sensored
• Poles: 2
• KV (RPM/Volt): 3500kV
• Outer Diameter: 16 mm
• Length: 26 mm
• Shaft Diameter: 2 mm
• Weight: 18 g
• Application: 1/28 Mini
