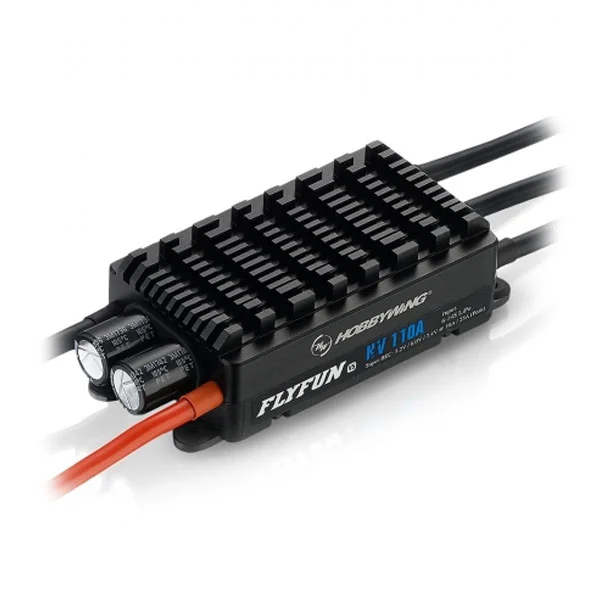

Hobbywing Flyfun 110A HV Opto V5 Speed Control

Brand: Hobbywing

Part No: HW30201701

£98.99 ~~RRP £109.99~~

Shadow Stock: Usually ships next day

Request Price Match Ask a Question Write a Review

The Hobbywing FlyFun 110A HV OPTO V5 Speed Control (HW30201701) is a high-voltage brushless ESC built for reliable, responsive power delivery. A fast 32-bit ARM M4 microcontroller (up to 72 MHz) teams with Hobbywing’s DEO technology to sharpen throttle response, boost efficiency and help manage operating temperatures, with suggested compatibility for larger fixed-wing and EDF aircraft.

The OPTO V5 architecture features no built-in BEC, aligning with high-voltage 6–14S LiPo setups. A separate DC-regulated supply for the microprocessor enhances anti-interference performance to reduce the risk of control loss. Normal, Soft and Very Soft start-up modes are available; for EDF use, the manufacturer recommends selecting Very Soft. Programming adjustments on the 110A HV OPTO V5 are made via the Hobbywing LED Program Card (available separately); transmitter/stick programming is not supported. Reverse brake mode is not supported on this model.

Key Features

32-bit ARM M4 microprocessor (up to 72 MHz) compatible with a wide range of brushless motors
DEO (Driving Efficiency Optimisation) for improved throttle response, higher efficiency and lower ESC temperatures
Separate DC-regulated MCU supply for strong anti-interference performance
OPTO design with no BEC
Normal, Soft and Very Soft start-up modes (Very Soft recommended for EDF; suggested compatibility)
Requires LED Program Card for parameter changes; no stick programming
Multiple protections: start-up, ESC thermal, capacitor thermal, over-current, over-load, abnormal voltage and throttle signal loss
Reverse brake mode: not supported

Specifications

Continuous/Peak Current: 110A / 140A
Battery Input: 6–14S LiPo
BEC: None (OPTO)
Input/Output Wires: 10AWG, 150 mm
Input Connector: None
Motor Connector: None
Size: 92.7 x 45.6 x 27 mm
Weight: 170 g

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

HOBBYWING FLYFUN 110A HV OPTO V5 SPEED CONTROL

Features

FlyFun 110, 130 and 160HV models will only allow programming changes using LED program card (purchase separately) and do not support "Transmitter" or "Stick" setting adjustments as the weblisting and manuals state.
ESC which features a high performance 32-bit ARM M4 microprocessor (with a running frequency of up to 72MHz) is compatible with various brushless motors.
Microprocessor powered by a separate DC regulator has better anti-interference performance greatly reduces the possibility of losing control.
DEO (Driving Efficiency Optimization) Technology greatly improves throttle response & driving efficiency and reduces ESC temperature.
Built-in high-power BEC with output voltage adjustable among 5.2V, 6.0V and 7.4V. The BEC module is separate from other circuits on the ESC, so the normal BEC output can be guaranteed (when issue like burnt power board happens) to allow users to get the aircraft back before crash. (Note: the FLYFUN 80A/120A/130A/160A-HV-OPTO-V5 doesn’t have this function.)
Normal/Soft/Very Soft start-up modes are compatible with regular propeller airplanes and EDF jet airplanes (pls ensure to select the “Very Soft Start-up” mode when using EDF jet airplanes). Separate programming cable for connecting ESC to a LED program box and allows users to program the ESC anytime, anywhere. (For detailed info, please refer to the user manual of HOBBYWING LED program box.)
Normal/proportional/reverse brake modes (esp. reverse brake mode) can effectively shorten the landing distance for the aircraft. (Note: FLYFUN 20A/30A Mini /110A/130A/160A-HV-OPTO-V5 don’t have this function.)
Multiple protection features like start-up, ESC thermal, capacitor thermal, over-current, over-load, abnormal input voltage and throttle signal loss effectively prolong the service life of the ESC.

Specifications

Cont./Peak Current: 110A/140A
Input: 6-14S LiPo
BEC: NO
Input /output wire: 10AWG 150mm
Input connector: NO
Output connector: NO
Size (mm): 92.7x45.6x27mm
Weight (g): 170
Reverse Brake Mode: Not Supported

Key Info:

Brand: Hobbywing
Part No: HW30201701
Barcode: 6938994402842

Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Reviews

No specific product reviews yet, why not write one?

WRITE A REVIEW

Name

Rating

Your Review

All reviews are subject to moderation

Questions & Answers

Real questions from real customers. Why not ask your own?

Hi would this be okay run 2 6s batteries together to make 44v with 9000mah output. Also could you let me the part number for the program card for this product please Regards rob

Robert Chambers / 13th March 2026

Yes that will run upto 14s lipo but it depends on the amps the motor will pull as this is 110 amps.

Steve @ Wheelspin Models
