Hobbywing MAX10 G2 140A ESC Combo With 3665SD 2400Kv G3 Motor
Brand: Hobbywing
Part No: HW38020343
In Stock: Usually ships same day

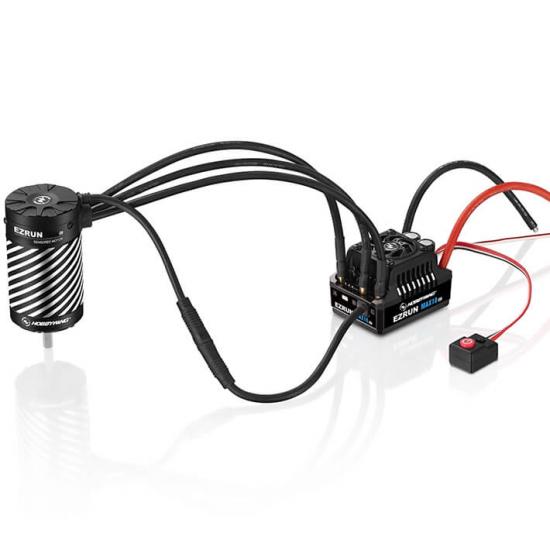

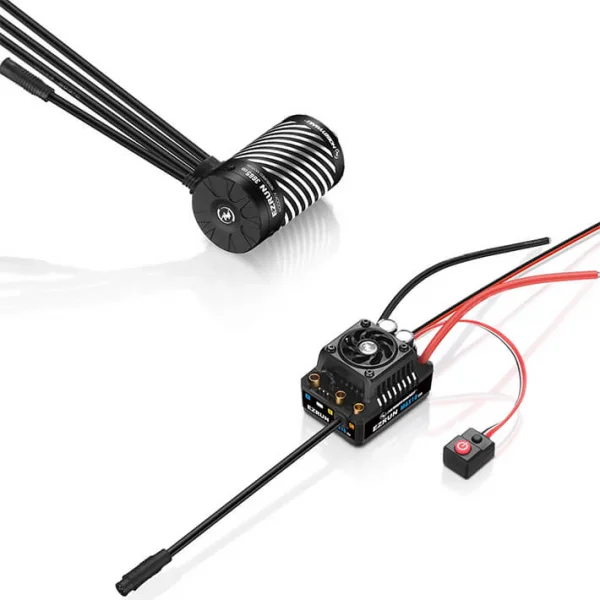

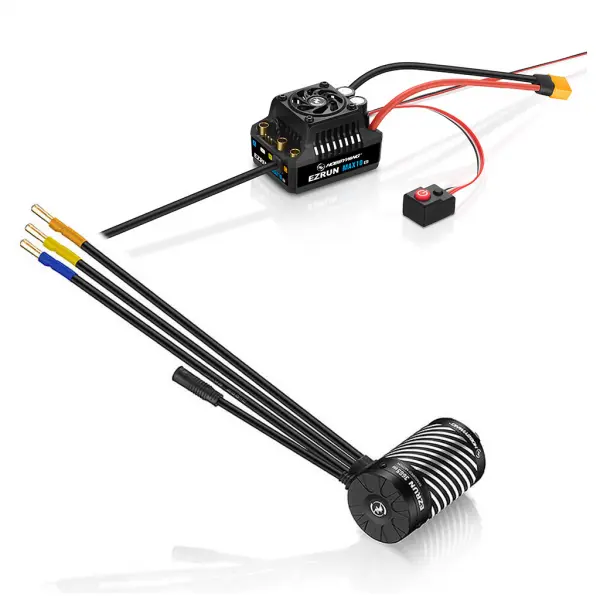

The Hobbywing MAX10 G2 140A ESC Combo With 3665SD 2400Kv G3 Motor (HW38020343) pairs the EzRun Max10 G2 ESC with the EzRun 3665 SD G3 2400KV motor for refined sensored brushless control, robust waterproofing and wide tuning capability on 2–4S LiPo power.
This combo introduces an upgraded sensored mode with an improved waterproof sensored cable interface, Turbo timing adjustment and smart thermal management to deliver smooth throttle feel, higher peak speed potential and dependable performance across varied conditions.
Features
- Improved waterproof sensored cable interface and upgraded sensored mode for precise control; offers suggested compatibility with EzRun 3652/3665 SD G3 motors.
- Turbo timing adjustment up to 32 degrees; when used with EzRun 3652/3665 G3 motors, maximum speed increase of up to 25%.
- Smart start‑stop technology with a frameless fan that only activates as temperature rises, reducing noise and saving power.
- Capacitor bank with 74% higher total capacitance than the previous MAX10, with overheating protection to help prevent overload and capacitor damage.
- Smart freewheeling technology for higher drive efficiency and significantly lower operating temperatures (approximately 25°C lower than the previous generation).
- Connect an optional OTA Bluetooth module to view real‑time data (throttle, voltage, current, temperature, speed, etc.) and access data logging via the mobile app.
- IP67 waterproof and dustproof rating for confident running on mud, sand, ice, snow and through water.
Specifications
- Motor Series: EzRun 3665 SD G3
- Kv: 2400KV
- Motor P/N: 30402604
- Battery: 2–4S LiPo
- Resistance (R): 0.00816Ω
- No‑load Current: 5.2A
- Motor Size (Diameter x Length): Φ37 x 65.8
- Shaft Size (Diameter x Length): Φ5.0 x 16.5
- Poles: 4
- Combo Weight: 304.5g
Secured by Stripe
HOBBYWING COMBO MAX10 G2 140A ESC 3665SD 2400KV BLK G3 MOTORFeatures
- The EzRun Max10 G2 features an improved waterproof sensored cable interface and an upgraded sensored mode to achieve a great sense of control feel and perfectly matches the EzRun 3652/3665 SD G3 motors.
- Supports Turbo timing adjustment of up to 32 degrees, and in combination with the EzRun 3652/3665 G3, the maximum speed is 25% more with greater effect.
- The smart start-stop technology is introduced to the Max10 G2 ESC. The frameless fan will not be enabled to reduced noise and saving power. The fan will only work when the temperature rises to a certain level.
- Compared with the previous generation of the MAX10 ESC, the total capacitance of the capacitor is increased by 74% and is overheating protected. The functions improve the power delivery from the battery to the ESC to avoid it from overloading and causing capacitors to explode.
- Smart freewheeling technology enables the MAX10 G2 to have higher drive efficiency than the previous generation, resulting in lower operating temperatures and a minimum temperature of approximately 25°C lower than the previous generation.
- After connecting the ESC with the OTA Bluetooth module, you can view the data (throttle amount, voltage, current, temperature, speed and etc) in real time through the mobile app to know the running status; The history of the running status can also be viewed by data logging.
- The IP-67 waterproof system guarantees excellent waterproofing and dustproofing protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.
Specifications
Ezrun Series: 3665 SD G3
KV: 2400KV
P/n: 30402604
LiPo: 2-4S
R. (Ω): 0.00816Ω
No-load Current: 5.2A
Motor Diameter & Length: Φ=37 / L=65.8
Shaft Diameter & Length: Φ=5.0 / L=16.5
Pole: 4
Weight (g): 304.5g
Key Info:
- Brand: Hobbywing
- Part No: HW38020343
- Barcode: 6938994407496
Free Shipping
This item is over £100, so qualifies for free standard UK shipping!
Express Shipping
Upgrade to next day from £3
Worldwide Shipping
Available at checkout
Reviews
4s e maxx is being created......, as I have perchanced two of these
WRITE A REVIEW
Questions & Answers
yes that would work fine the esc has 1 connector.
That is xt60
It will fit but you would need a pinion with a 5mm shaft and a transmitter and receiver or this receiver SPMSR215
Yes that shoudl fit fine you will need a pinion gear with a 5mm shaft for this system .
Yes that would be a good combo and could then run 4s lipo , you would need a 5mm shaft pinion to fit that motor.
No that will be too small you need this size HW38010607
We do not sell a mounting plate , heat sinks wise this would fit FAST36-3
Yes that would be a straight swap you would just need a pinion gear with a 5mm shaft rather than the 3.17mm one you have. like this AR310425
It depends on driving style and gearing but it is not something we have done so could not say how the gears will hold up.
That ESC is much too big - you would be better off with this: ROBR01250
This will be slower than the stock system on 3s with a like for like pinion. The benefit of a lower kv system is that you can run more voltage and gear up more as the torque is higher. This exact system with this KV motor will run 4s.
Yes that would be a perfect upgrade .
No, the ESC will come with some double sided sticky pad to hold the ESC in place.
Yes, This would fit in that car for you.
No, this is for 1/10th cars only. For 1/8th you would need something like this HW38010400
Yes that will fit but you will need a pinion gear with a 5mm shaft .
The motor in this combo does have a 5mm shaft.
